In one of his studies, our client wanted to simultaneously measure and record the torque applied by the engine and the thrust thus generated.

 The values to be measured are:

  •        Torque
  •        Force
  •        Overload capacity without damage: 200%.



As the tests are carried out in flight, this load cell should be able to operate and be compensated at low temperatures (-60°C). It should also have to operate under low pressure (5,000 Absolute Pa).

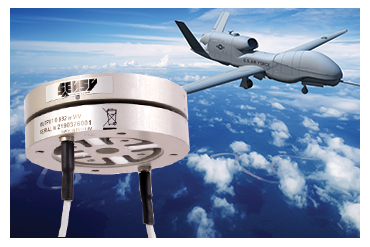

In collaboration with the customer, SENSY has developed and manufactured a specific force transducer combining torque and force measurement.

          • Output signals
            • Torque : 0,6 mV/V (Wheatstone Bridge)
            • Force : 1,0 mV/V (idem)
          • Dimensions
            • Diameter : 70 mm
            • Thickness : 24 mm
            • Mounting with M4 screws
            • Weight : 208 g
          • Material : Aircraft grade aluminium
          • Tests
            • Non-linearity measurement
              • Force  : 0,1 %
              • Torque : 1 %
            • Diaphony measurement (crosstalk) between the two channels : 0,6 %
            • Sensitivity and zero compensation in the temperature range of -50 to +40°C.
          • Special condition : Insensitivity to low pressure
