Torque transducers

Static, reaction or rotary

SENSY offers a complete range of static (‘non-rotating’) and rotating (dynamic) torque meters.

The measurement ranges available for the first type range from 2 Nm to 1000 kN m.

Depending on the capacity and the environment, our torque meters are available in the following materials: stainless steel, alloy steel, aluminum.

As the standard, you will obviously find the ‘classic’ models with flanges, square or hexagonal tips. In addition, the many options allow you to adapt them to your conditions of use: high temperature (+200° C), low temperature (-50° C), explosive atmosphere, radioactivity, use under pressure or under vacuum, etc.

These sensors are available with different output signals: unamplified analog (mV / V), amplified (V, mA); digital (RS-232, RS-485, USB, fieldbus) or wireless.

We can also offer static torque meters tailored to meet the most demanding requirements. Very accurate torque meters can be used as standard torque sensors for machine recalibration or as industrial torque meters.

Measuring ranges of rotary torque meters vary from 1 Nm to 25 kN m as the standard. The range can be higher on request. Transmission of the torque can be done by shafts with key, square ends, flanges or fluted shafts (PTO) which are typical of agricultural machines.

The maximum rotational speeds are 500 to 10,000 rpm, depending on the model, measuring range and tip type.

Read more
CE ATEX

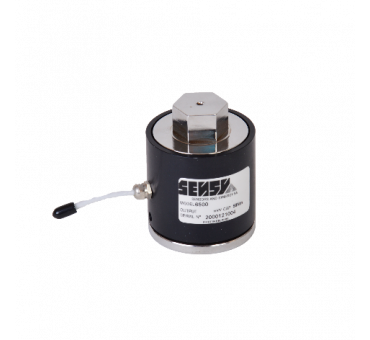

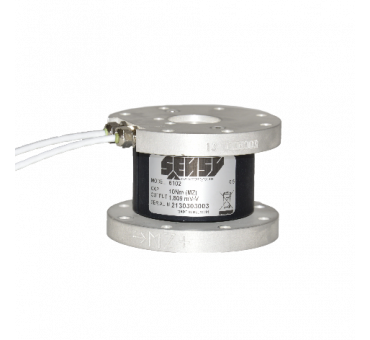

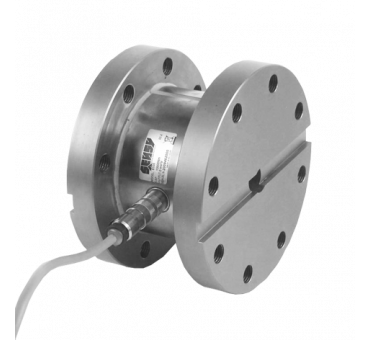

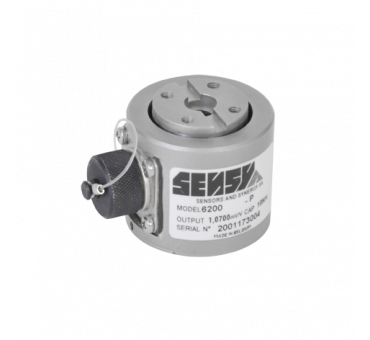

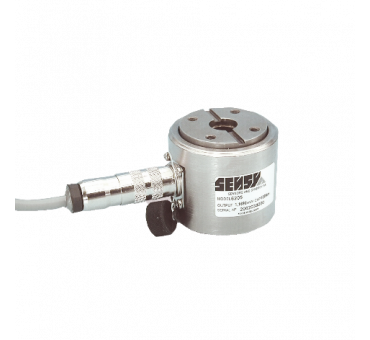

REACTION TORQUE METERS (HIGH CAPACITIES)
Accuracy0.25 %
Capacity300 Nm, 500 Nm, 1000 Nm,...
Universal non-rotating torque meters combining accuracy, sturdiness and easy to install.
Accuracy0.25 %
Capacity500 Nm, 1000 Nm, 2000 Nm,...
Universal non-rotating torque meters combining accuracy, sturdiness and easy to install.
CE ATEX

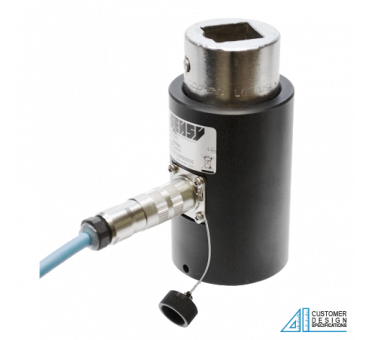

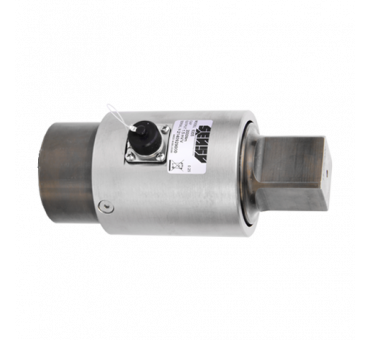

REACTION TORQUE METERS FOR RATCHET WRENCH
Accuracy0.25 %
Capacity50 Nm, 100 Nm, 300 Nm, 750...
Reaction torque meters designed to be place between ratchet and wrench.
CE ATEX

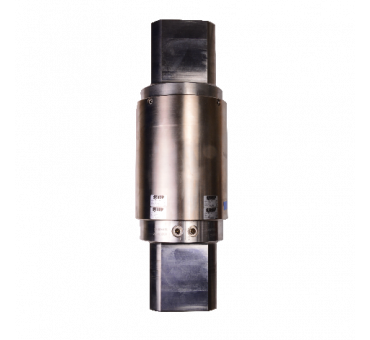

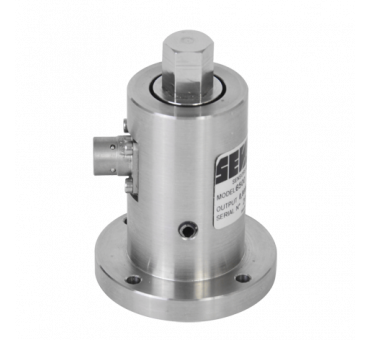

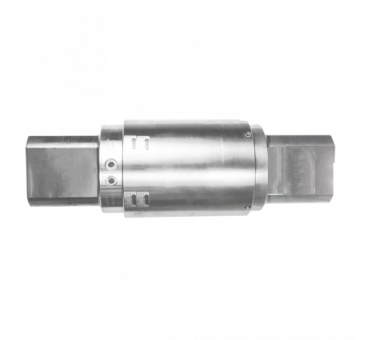

HIGH-RANGE REACTION TORQUE METERS
Accuracy0.5 %
Capacity20 kNm, 100 kNm, 200 kNm
High-range reaction torque transducers with square ends.

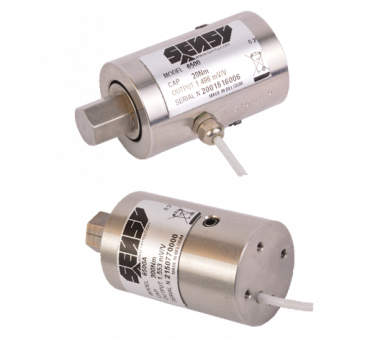

Accuracy0.25 %
Capacity2 Nm, 5 Nm, 10 Nm, 20 Nm,...
Non-rotating torque meters with hexagonal head.
Accuracy0.25 %
Capacity2 Nm, 5 Nm, 10 Nm, 20 Nm,...
Non-rotating torque meters with hexagonal head.
CE

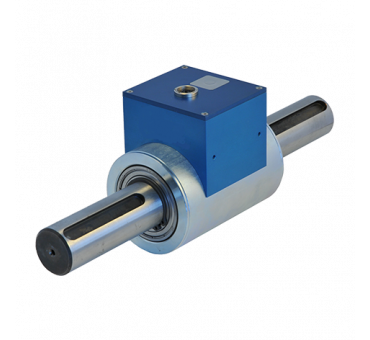

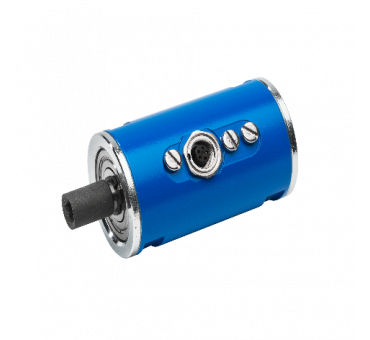

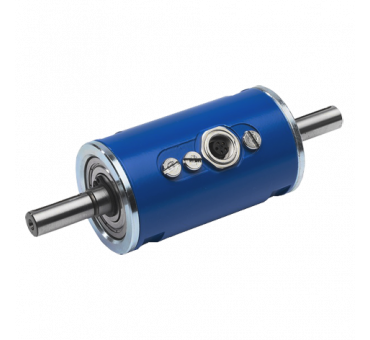

NON-CONTACT ROTARY TORQUE SENSORS
Accuracy1 %
Capacity2.5 Nm, 7.5 Nm, 17.5 Nm, 75...
Non-contact rotating torque sensors.
CE

NON-CONTACT ROTARY TORQUE SENSORS
Accuracy0.5 %
Capacity1 Nm, 2.5 Nm, 10 Nm, 20 Nm,...
Non-contact rotating torque sensors.
CE

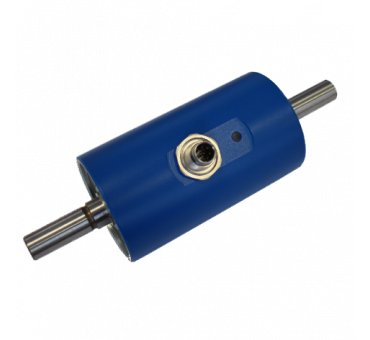

NON-CONTACT ROTARY TORQUE SENSORS
Accuracy0.25 %, 0.1 %
Capacity50 Nm, 100 Nm, 250 Nm, 500...
Non-contact rotary torque sensors.
CE

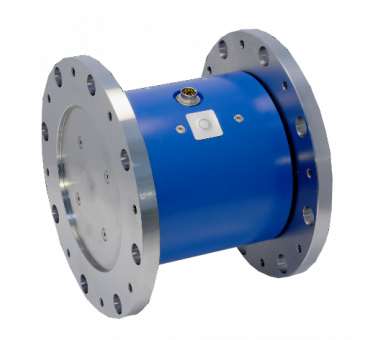

HIGH-CAPACITY NON-CONTACT ROTARY TORQUE SENSORS
Accuracy0.5 %
Capacity10 Nm, 15 NM, 20 Nm, 30 Nm
General purpose, high capacity non-contact rotary torque sensors.
CE

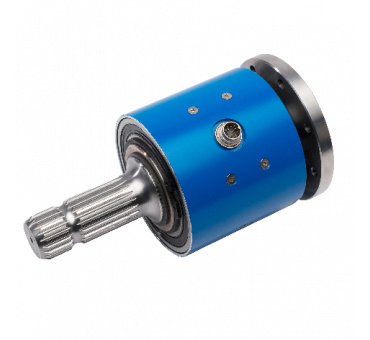

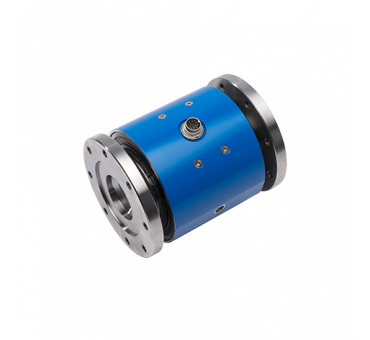

NON-CONTACT ROTARY TORQUE SENSORS
Accuracy0.5 %
Capacity3 kNm, 5 kNm
General purpose, non-contact rotary torque sensors with flanges or PTO shaft.

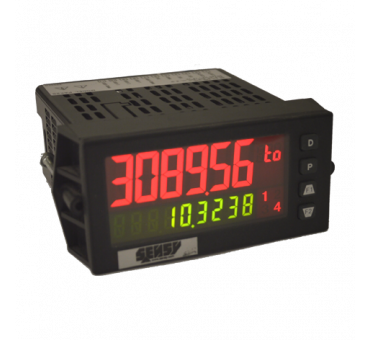

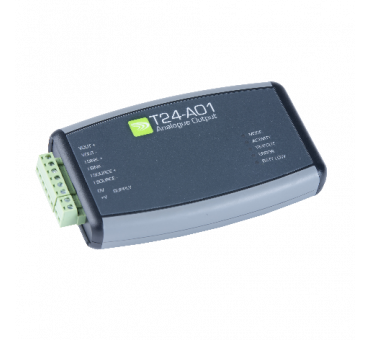

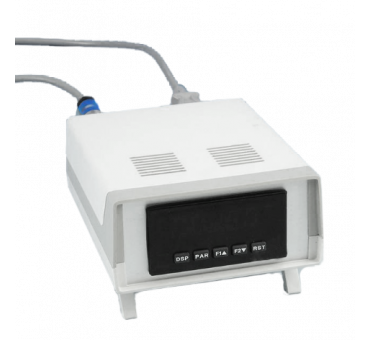

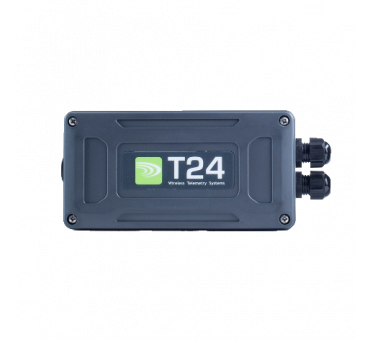

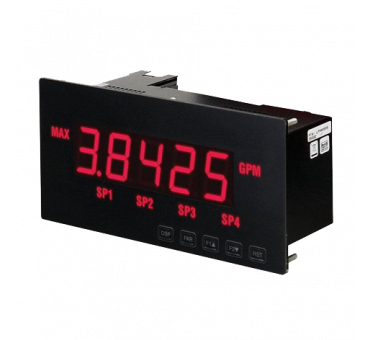

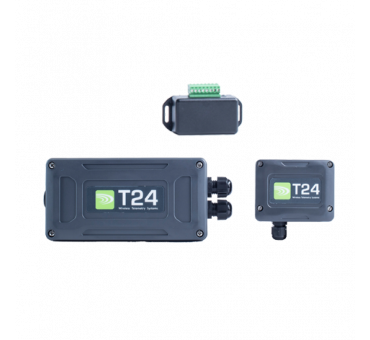

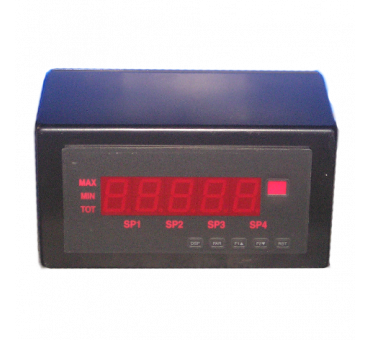

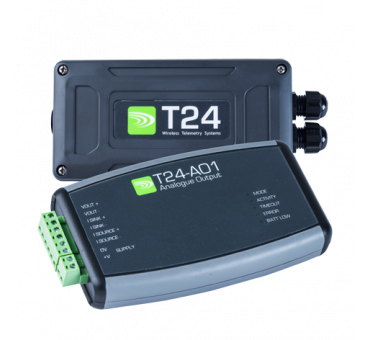

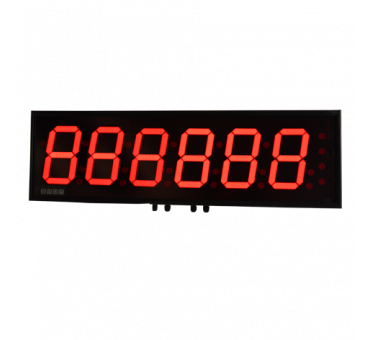

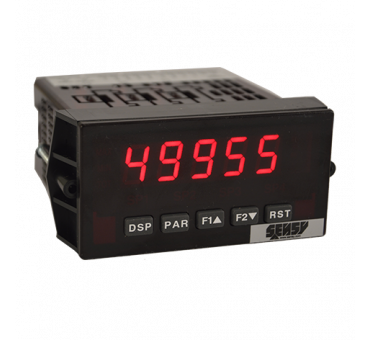

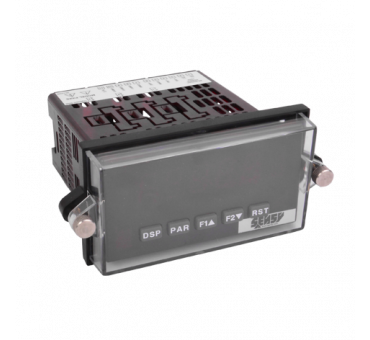

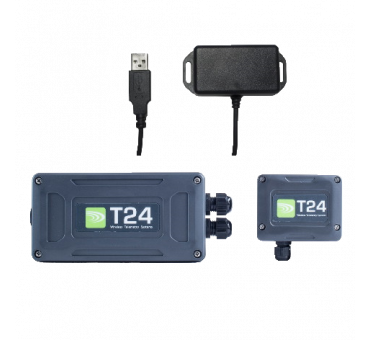

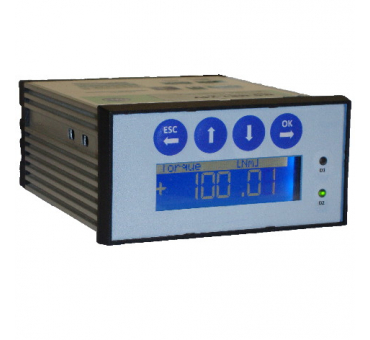

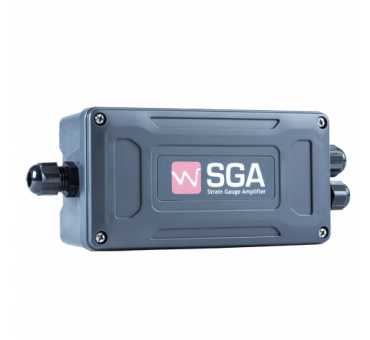

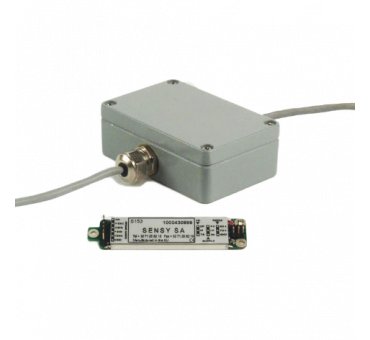

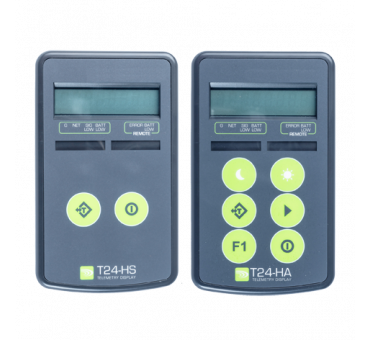

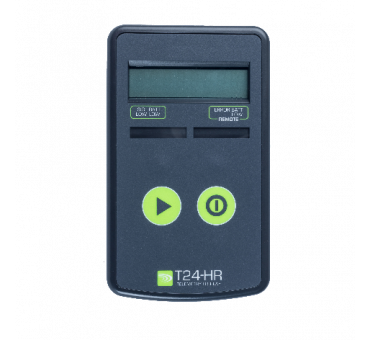

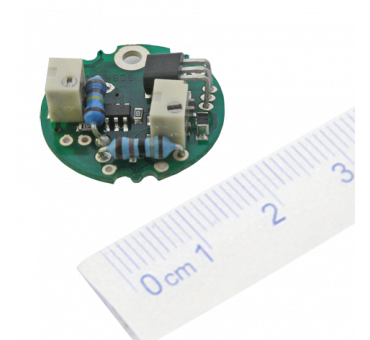

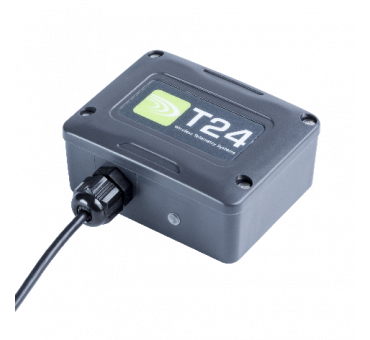

Associated electronics
