Weighing on mobile grapple cranes

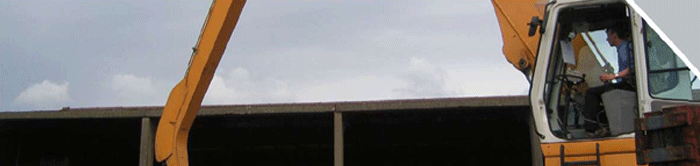

In fields as varied as the transportation of salvaged metals or the transfer of field beet to the sugar factory, mobile grapple cranes are used for truck loading. Since they use public roads, they are subject to regulations controlling their maximum load.

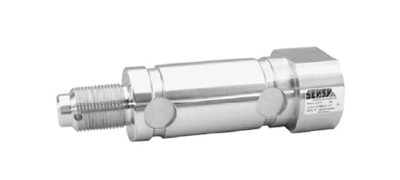

SENSY offers a cost-effective solution for measuring the on-board load. This consists of a custom-made load pin mounted in place of one of the axes supporting the grapple.

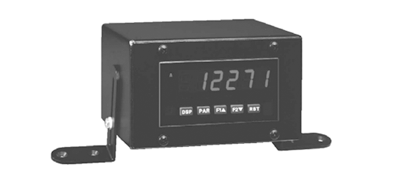

This load cell is connected to a dedicated indicator mounted in the driver's cabin which measures the weight of each batch and calculates their sum to be loaded into the truck.

Weighing on mobile grapple cranes
Weighing on mobile grapple cranes
Weighing on mobile grapple cranes Weighing on mobile grapple cranes

Load cells often used for this type of application

13

ON-BOARD WEIGHING LOAD CELLS
13

TENSION AND COMPRESSION LOAD CELLS
234813

CUSTOM-MADE LOAD PINS
3913

THROUGH HOLE (ANNULAR) LOAD CELLS
13

LOW-PROFILE COMPRESSION LOAD CELLS

Electronics often used for this type of application

1

ANALOGUE INPUT PANEL METERS
1

ANALOGUE INPUT PANEL METERS WITH DUAL LINE DISPLAY
1

JUNCTION BOXES FOR WEIGHING SYSTEMS
