Weighing load cells
Tank, Hopper, vessel, silo weighing
The range of SENSY force transducers is very wide. This one is characterised by a measurement range varying from 2 kg to 5000 t (tension and/or compression), OIML C1 to C3 approved or industrial with an accuracy of up to 0.01%.
Depending on the measuring range and the environment, our load cell models are available in the following materials: stainless steel, alloy steel, aluminum.
As is standard, you will obviously find the ‘classic’ models: S force sensors, miniature, pancakes, canisters, annular sensors, etc. to which can be added many options to adapt to the conditions of use: high temperature ( +200° C), low temperature (-50° C), explosive atmosphere, radioactivity, use under pressure, or under vacuum, etc.
These sensors are available with different output signals: unamplified analog (mV / V), amplified (V, mA); digital (RS-232, RS-485, USB, fieldbus), or wireless.
In addition, SENSY’s structure and flexibility allows it to offer custom-made weighing load cells to meet the most demanding requirements.
More detailed explanations on the operation of force sensors are available on our "Technology" pages.
| Accuracy | A3, 0.03 %, C 3 |
| Capacity | 100 N / 10 kg, 200 N / 20... |
| High-end load cell combining high accuracy with high resistance in harsh environment. | |
| Accuracy | 0.03 %, C 3 |
| Capacity | 1 kN / 100 kg, 1,5 kN / 150... |

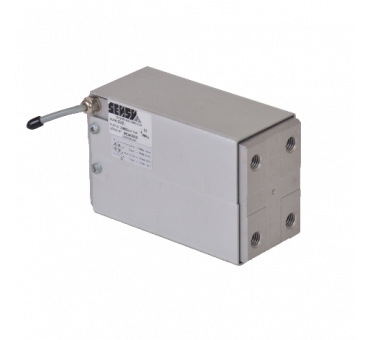

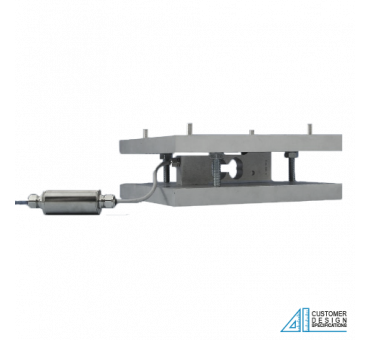

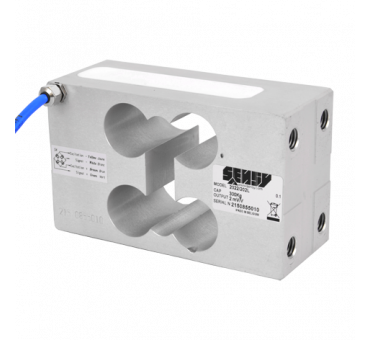

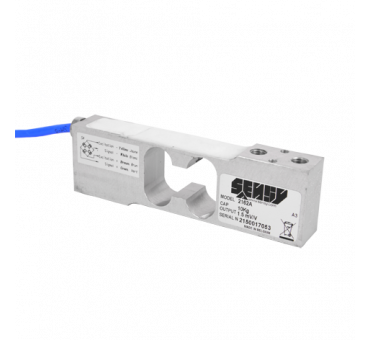

| Single point load cell specially designed for platforms and bunkers weighing. | |
| Accuracy | 0.1 %, 0.03 % |
| Capacity | 5 kN / 500 kg, 10 kN / 1 t,... |
| Universal load cell combining accuracy, sturdiness and easy installation | |
| Accuracy | 0.1 %, 0.03 %, 0.02 % |
| Capacity | 100 N / 10 kg, 200 N / 20... |
| High-accuracy universal load cells, easy to install. | |
| Accuracy | A3, 0.03 % |
| Capacity | 20 N / 2 Kg, 50 N / 5 Kg,... |
| Low capacity single point load cell | |
| Accuracy | A3 |
| Capacity | 100 N / 10 kg, 200 N / 20... |
| Economical single point load cell specially designed for the weighing of platforms and bunkers. | |
| Accuracy | 0.25 %, 0.1 % |
| Capacity | 10 t / 20 klb, 20 t / 40... |

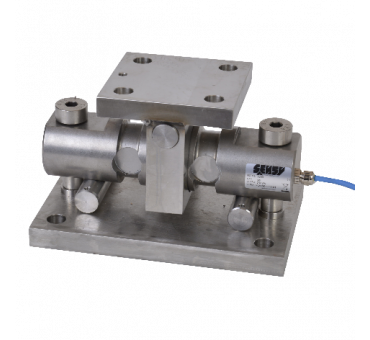

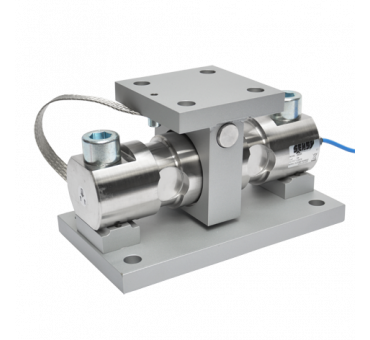

| Load cells for silo weighing combining a sturdy design with easy installation. | |
| Accuracy | 0.5 % |
| Capacity | 10 t / 20 klb, 50 t / 100 klb |
| Load cells specially designed for on-board weighing on trucks. | |
| Accuracy | 0.25 %, 0.1 %, C 1.5, 0.03 % |
| Capacity | 10 t / 20 klb, 20 t / 40... |

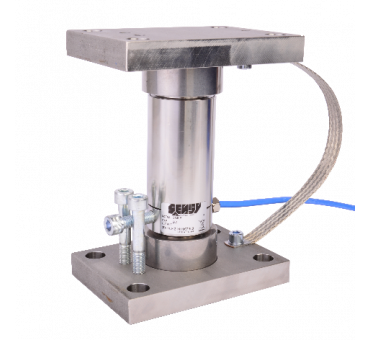

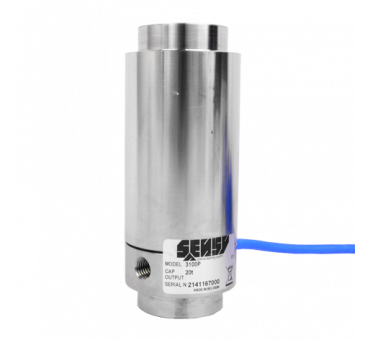

| Pendular compression load cell | |
| Capacity | 40...120 N/mm2 |

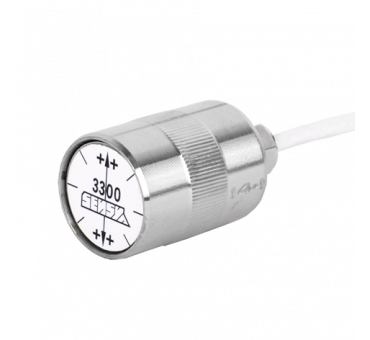

| Insertable extensometer designed to measure the force in a structure. | |
| Accuracy | 0.1 % |
| Capacity | 1 t / 2 klb, 2 t / 4 klb, 3... |
| Load cells for silo weighing combining a sturdy design with easy installation. | |
| Accuracy | 0.25 %, SL - HOIST |
| Capacity | 10 t / 20 klb, 50 t / 100... |
| Robust and easy-to-install tension load cells | |
| Accuracy | A3, 0.03 %, C 3 |
| Capacity | 0.5 t / 1 klb, 1 t / 2 klb,... |
| Universal load cell combining sturdy design, high accuracy and low cost. | |
| Accuracy | A3, 0.03 % |
| Capacity | 3 t / 6 klb, 5 t / 10 klb,... |
| Universal load cells combining sturdy design, high accuracy and low cost. | |
| Accuracy | 0.25 %, 0.1 % |
| Capacity | 0.5 t / 1 klb, 2 t / 4 klb,... |

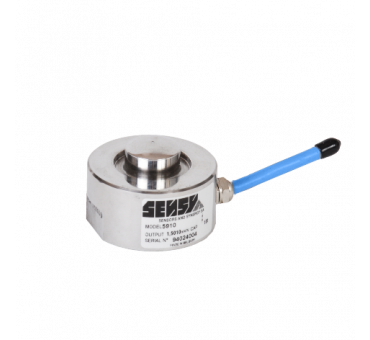

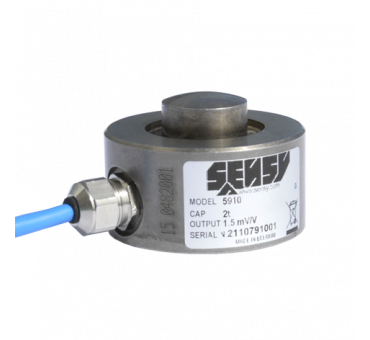

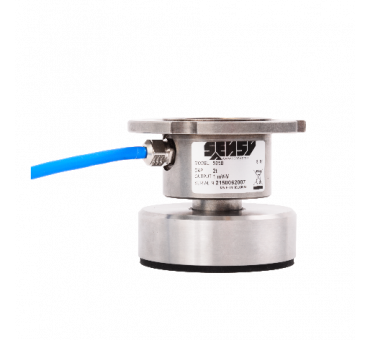

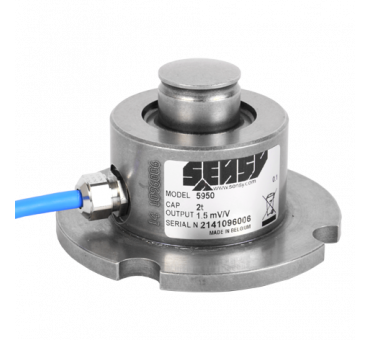

| Load cell combining high capacity with low design. | |
| Accuracy | 0.5 %, 0.25 %, 0.1 % |
| Capacity | 1 t / 2 klb, 2 t / 4 klb, 3... |
| Load cells combining high capacity, low design and cost-effective solution. | |
| Accuracy | SL - HOIST, SL - FORCE |
| Capacity | de 1 t à 400 t |
| Wireless load shackles designed to measure tension force. | |
Associated electronics
| Universal large panel meters to be used with transducers and process signals. |
| Universal panel meters for using with load cells and process signals. |
| Panel meters with dual line display for Wheatstone bridge sensors |
| Dual independent process input meter. |
| Conditioner-amplifier with 4..20 mA and -10..0..10 V output. |
| Conditionner-amplifier with 4..20 mA and 0..10 V output. |
| Analogue voltage and current signal converter with galvanic isolation. |

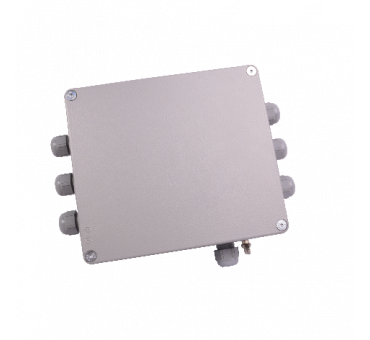

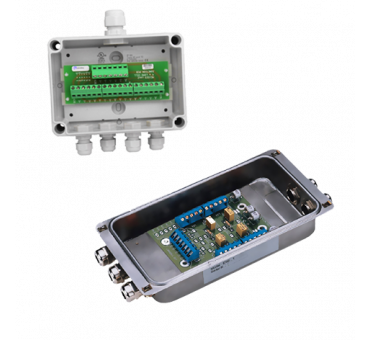

| Junction boxes designed to connect several load cells in parallel to the same electronics with corner adjustment. |
| Very high accuracy digital indicator designed for weighing applications. |
| Hand-held indicator for transducer with mV/V output. |
| Radio transmitter for analogue signals (mV/V, 4..20 mA, 0..10 V). |
| Hand-held wireless indicator. |
| Radio receiver with analogue output (4..20 mA, 0..10 V). |
| Base stations designed to connect wireless load cell (WI-T24TR-xxx) |
| Base station designed to connect up to 8 wireless load cells (WI-T24TR-xxx) |
| Converts the signal from the Wheatstone bridge (mV/V) into a robust industrial standardised 4 to 20 mA signal. |
| Convert the signal from a Wheatstone bridge (mV/V) into a standardised digital signal RS-232, RS-485 or USB. |
| Converts the signal from a Wheatstone bridge (mV/V) into a standardised digital signal RS-232, RS-485 or USB. |
| Smart junction box designed for parallel connecting of 2 to 4 load cells to an electronics and to ensure the monitoring of their correct functioning. |
| Large digital displays for distance reading |
