Instrumentation for civil engineering applications

Instrumentation for civil engineering applications

Our force transducers are used in many different economic sectors: industrial, chemical, materials handling, oil and gas, aeronautical, etc. … and also civil engineering!

They are being used more and more either for the continuous monitoring of complex structures or for the renovation of civil engineering works.



The surface movement or slippage of a man-made mound of waste (a slag heap) can have disastrous consequences.

Capteur de force instrumentation genie civil

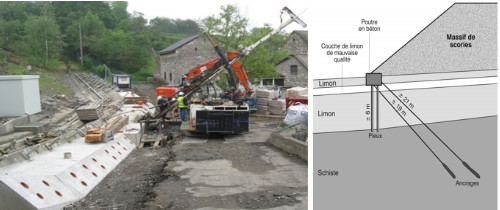

In order to contain this kind of movement, reinforced concrete beams are installed and are supported, along with other structural members, by tie beams set in the bedrock.

Capteur de force instrumentation genie civil

Over time the forces that these tie beams have to contain can increase. It is therefore essential to measure these forces continuously in order to ensure they do not exceed the maximum permissible load of the beam.

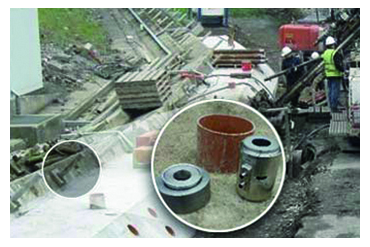

That is why the University of Louvain-la-Neuve (UCL) in Belgium asked SENSY to manufacture six custom-made annular load cells.

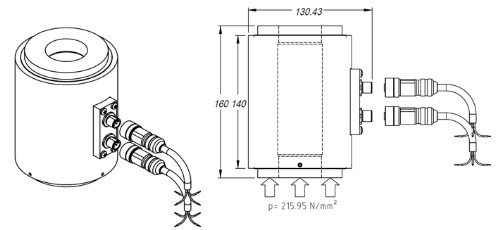

Technical description of the supplied material:

  • Capacity : 1 MN
  • Accuracy class : ± 0.5 %
  • Material : Stainless steel
  • Diameter of the central bore : 47 mm
  • Outside diameter of the supports : 89 mm
  • Protection rating : IP67
  • Operating temperature range : from -30 to +85°C
  • Compensated temperature range : from -10 to +85°C
  • Number of outputs : 2

Capteur de force instrumentation genie civil

A relatively high temperature range was chosen to take into account the possibility that the slag heap could become overheated.

The dual output was designed to allow measurement redundancy in order to increase the load cell’s reliability.

Capteur de force instrumentation genie

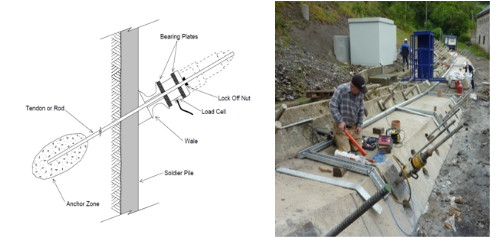

In a similar way to many other localised measurements (displacement, temperature, flow, level of the water table, etc.) these force transducers are connected to a data logger with internet access.

Since their installation in 2012, the site operator has accessed continuous information about the evolution of the forces applied to the six-instrumented tie beams.

Capteur de force instrumentation genie civil

This application example shows how SENSY is able to adapt its standard range of load cells (see the data sheet for model 5190) to meet the specific needs of this market.
