SIL3 " ready" load pins


Our load pins (5000,5300, and 5600 models) can be compliant to SIL (Safety Inntegrity Levels - EN 62061) and PL (Performance Levels - ISO 13849 standart) requirements.

SIL (Safety Integrity Level) or PL (Performance Level) are certifications which guarantee that the safety of the sensors is provided for by an independent control mechanism.

By applying system redundancy, SENSY offers a SIL 3 certified solution which is produced by using two completely independent output signals (two Wheatstone bridges, two amplifiers and two connectors) in combination with a safety PLC (Programmable Logic Controller). The use of this type of redundancy is the precondition for a high level of safety integrity (such as SIL 3) and for providing a high level of PL.

Therefore, in addition to our existing range of various certifications (ATEX, OIML R60, etc.), we can now provide SIL 3 ready load pins, too.

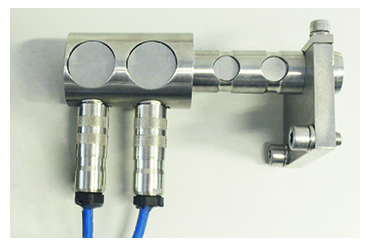

Example: Characteristics of the ‘custom-made’ torque transducer SENSY 5000

  • Measuring range : 3 tonnes-force
  • Permissible load without impairing performance : = 200 %
  • Breaking load : = 500 %
  • Accuracy class : ± 1 %
  • Output signal : 2 x 4..20 mA
  • Power supply : 24 VDC
  • Supplied with a key for locking the wedge socket assembly
