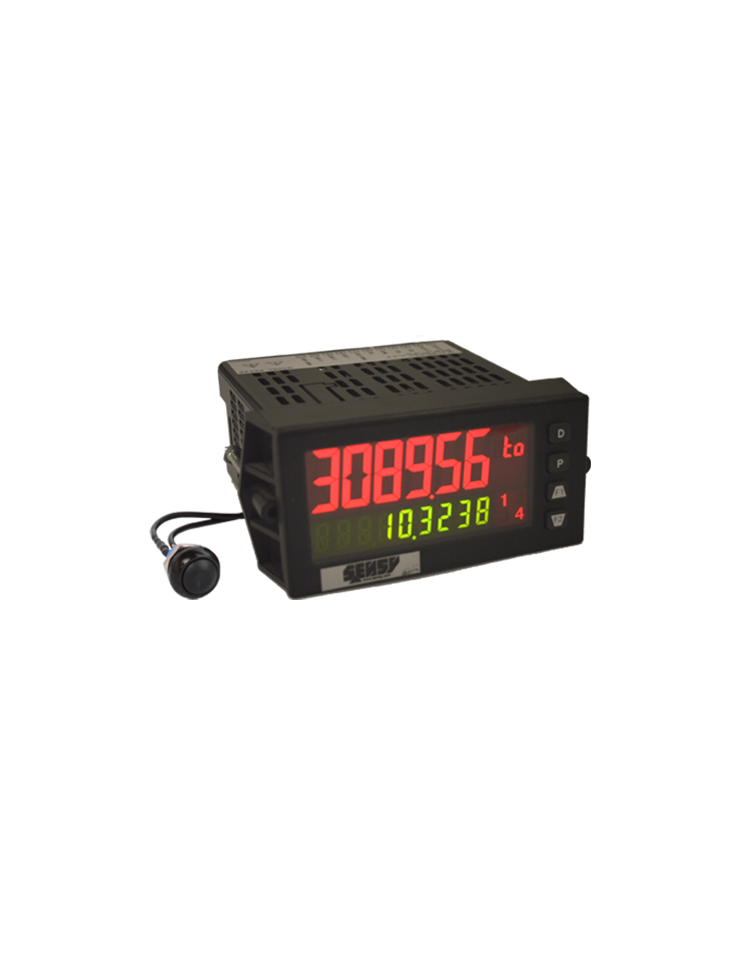

CRANE OVERLOAD PROTECTION ELECTRONICS

Reference :

Crane overload protection electronics with 3 set-points and display to be installed on a front panel.

o Easy and intuitive calibration
o Display of hoisted load
o Internal monitoring system of load cell integrity and load limitation electronics (fail safe)

AVAILABLE OPTIONS

- Analogue output 4 (0)...20 mA or 0...10 V
- RS-232, RS-485 or fieldbus capabilities
- NEMA 4X / IP67 (transparent protection cover + Option "COVER PAX")
- rail DIN adaptor
- also available with industrial metallic housing (see CRANE-BOY2 and CRANE-BOYP2 products)

Data Sheet
Download

	INDI-BOY2	DISP-BOYP2
Type (-)	Load limiter for single load cell	Load limiter for single load cell
Input range (-)	± 24 mVDC / ± 240 mVDC	20 mA (±25 mA)
Sensor excitation (-)	10 VDC @ 125 mA max	18 VDC @ 50 mA max.
Display (-)	1st line	1st line
Accuracy (% F.S.*)	0.1	0.1
A/D converter (-)	24 bits	24 bits
Converter rate (-)	Up to 160 readings/s	Up to 160 readings/s
Service temperature range (°C)	0...+50	0...+50
Storage temperature range (°C)	-40...+60	-40...+60
Power supply (-)	40...250 VAC, 50/60 Hz (20 VA), 21.6...250 VDC (8 W)	40...250 VAC, 50/60 Hz (20 VA),21.6...250 VDC (8 W)
IP rating (-)	IP20 / IP65	IP20 / IP65

*F.S. : Full Scale.
** : 5 VDC @ 65 mA max (jumper selectable).
*** : IP rating for front panel only.
Specifications subject to change without notice.
