CRANE OVERLOAD PROTECTION ELECTRONICS


OVERLOAD

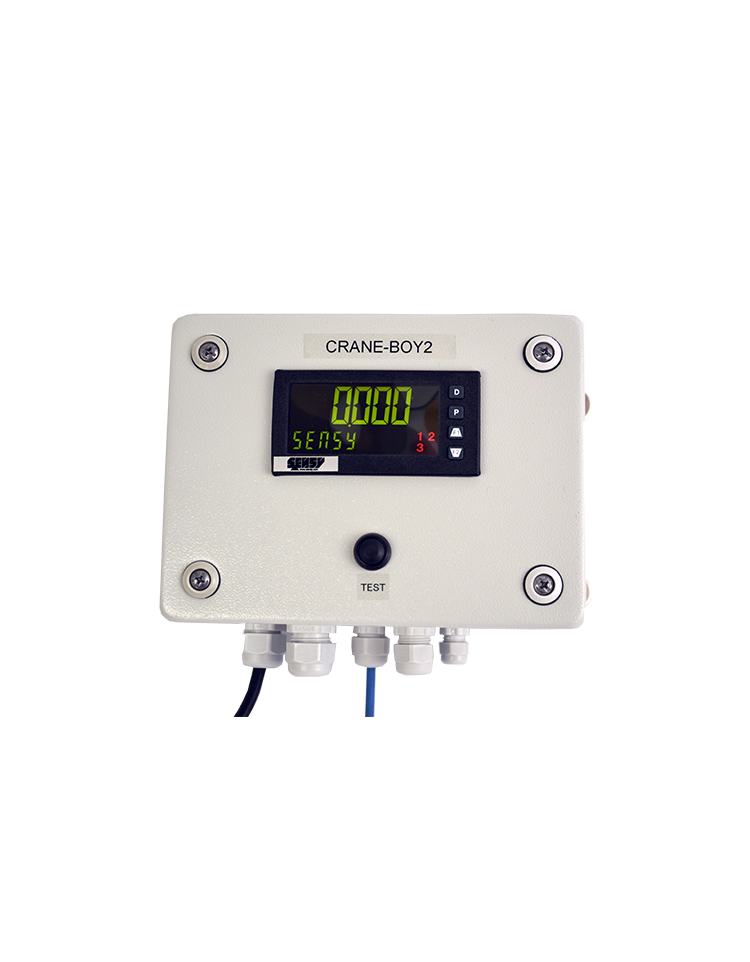

Crane overload protection electronics with 3 set-points and display

o Easy and intuitive calibration
o Display of hoisted load
o Internal monitoring system of load cell integrity and load limitation electronics (fail safe)
o Test button on front cover
o Also available without industrial metallic housing
  (see specific data sheet INDI-BOY2, DISP-BOYP2)



AVAILABLE OPTIONS

- Analogue output 4 (0)...20 mA or 0...10 V
- RS-232, RS-485 or fieldbus capabilities
- NEMA 4X / IP67 (transparent protection cover + Option "COVER PAX")
- Stainless steel housing
Add to basket
for quotation

CRANE-BOY2CRANE-BOYP2
Type (-) Load limiter for single load cell Load limiter for single load cell
Input range (-)
± 24 mVDC / ± 240 mVDC 20 mA (± 25 mA)
Sensor excitation (-) 10 VDC @ 125 mA max 18 VDC @ 50 mA max.
Display (-) 1st line 1st line
Accuracy (% F.S.*)
0.1 0.1
A/D converter (-)
24 bits 24 bits
Converter rate (-) Up to 160 readings/s Up to 160 readings/s
Service temperature range (°C)
0...+50 0...+50
Storage temperature range (°C)
-40...+60 -40...+60
Power supply (-)
40...250 VAC, 50/60 Hz (20 VA), 21.6...250 VDC (8 W) 40...250 VAC, 50/60 Hz (20 VA), 21.6...250 VDC (8 W)
IP rating (-) IP65 IP65

*F.S. : Full Scale.
** : 5 VDC @ 65 mA max (jumper selectable).
Specifications subject to change without notice.
