DATA RECORDING AND MANAGEMENT FOR EOT CRANES


OVERLOAD

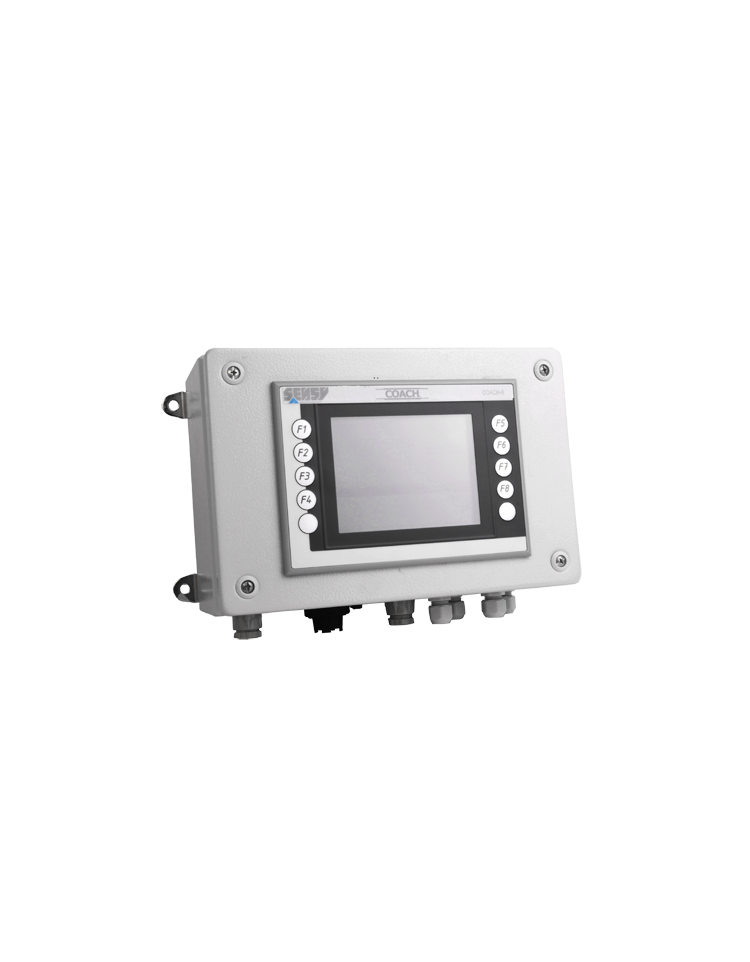

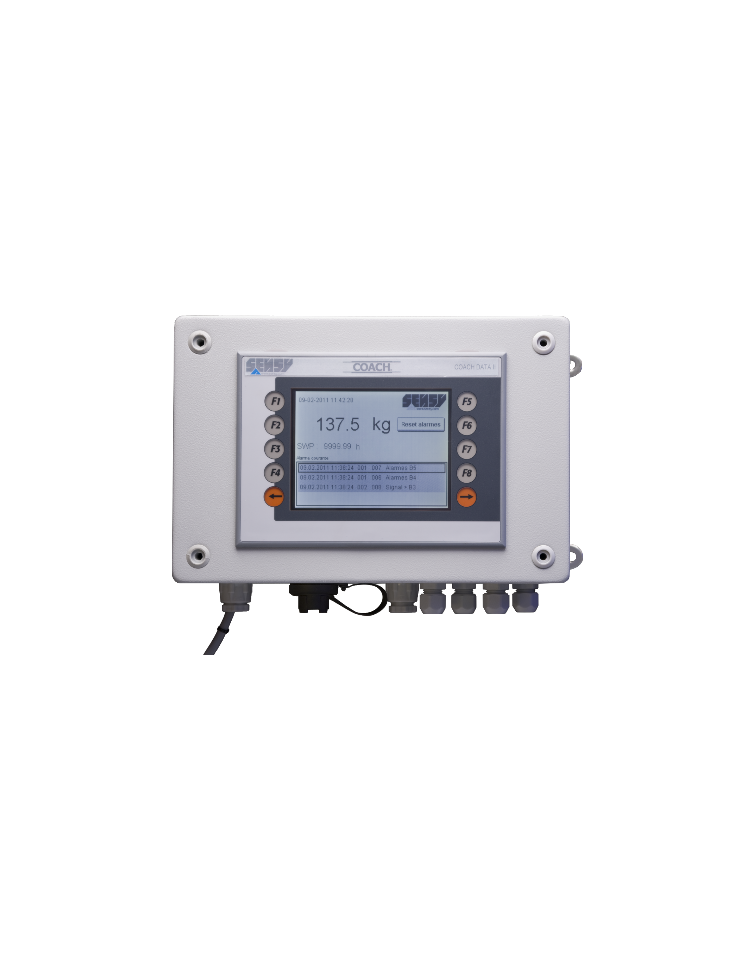

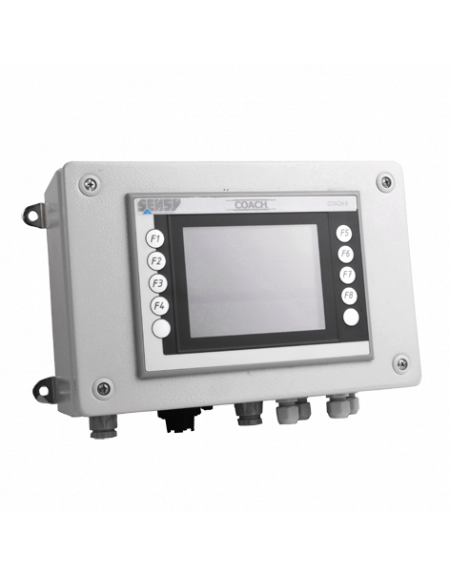

The COACH-II is a data recording system specially dedicated to crane monitoring.

o  The COACH-II is a new generation of electronic data logging, monitoring and management system for overhead travelling cranes (EOT), adaptable to other types of crane.
o  It is designed to optimise the maintenance with full knowledge of mechanical stress during use.
o  It can be used as a "black box" tracing the history of all recent movements.

Add to basket
for quotation

COACH-II-PMCOACH-II-IP65
Analog input (-) 1 x 0...10 V / 4...20 mA 1 x 0...10 V / 4...20 mA
Digital input (-) 4 4
Display (-) Touchscreen 5.7'' colour Touchscreen 5.7'' colour
Accuracy (% F.S.*)
0.1 0.1
Output signal (-) 0...10 V / 4...20 mA (SWP) 0...10 V / 4...20 mA (SWP)
Internal memory (-) 128 MB 128 MB
Service temperature range (°C)
0...+50 0...+50
Storage temperature range (°C)
-20...+70 -20...+70
Power supply (-)
24 VDC 24 VDC / 100..240 VAC
Qty of relay (-) 2 2
Contact rating (-) 5 A @ 240 VAC / 28 VDC 5 A @ 240 VAC / 28 VDC
IP rating (-) IP20 IP65

*F.S. : Full Scale
** : potential free contact
*** : compact flash
**** : 48 VAC (option)
***** : IP rating of front panel : IP65
****** : 100..240 VAC --> 24VDC converter included
Specifications subject to change without notice.
