DISPLAY FOR ROTARY TORQUE SENSOR


CE

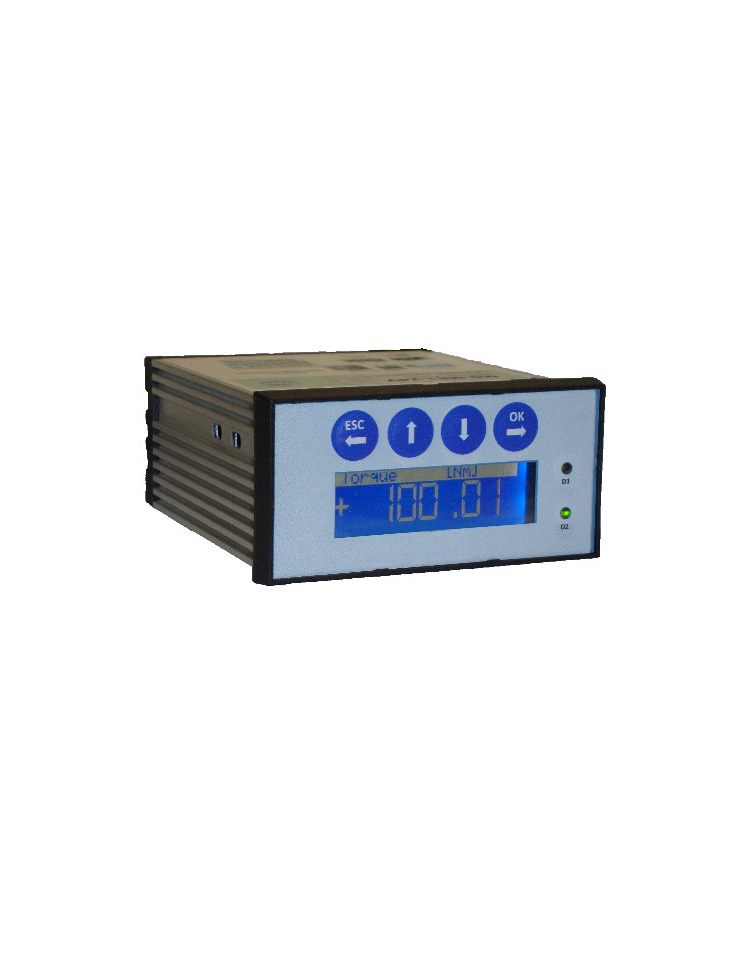

The DISP-60 is a display specially designed to be connected with a non-contact rotary torque sensor of the SENSY 60000 series.

o 1 torque sensor input 0...10 V
o 1 angle encoder input (A/B) or speed sensor input (A)
o 2 x digital input
o 2 x relay output
o USB interface (2.0 HID - Windows ® compatible software included)
o SD card slot (SD / SD HC)
o Acquisition interval: 10 ms...1 h

"Technical drawings available on datasheet"

Add to basket
for quotation

DISP-60
Input range (-)
0...10 V
Sensor excitation (-) 12 VDC
Display (-) 122 x 32 px
Accuracy (% F.S.*)
<±0.05
A/D converter (-)
100 Hz
Internal resolution (-) 2.5 mV / 12 bits
Service temperature range (°C)
+5...+50
Power supply (-)
15...30 VDC
Consumption (-) 200 mA
Qty of relay (-) 4 cabled by 2
Relay type (-) Form A (SPST) 1 A @ 125 VAC or 2 A @ 30 VDC
Dimensions (mm) H 45 x W 92 x L 108 (front H 49 x W 96)
Weight (kg) 0.33
IP rating (-) IP40

* F.S. : Full Scale.
Specifications subject to change without notice.
