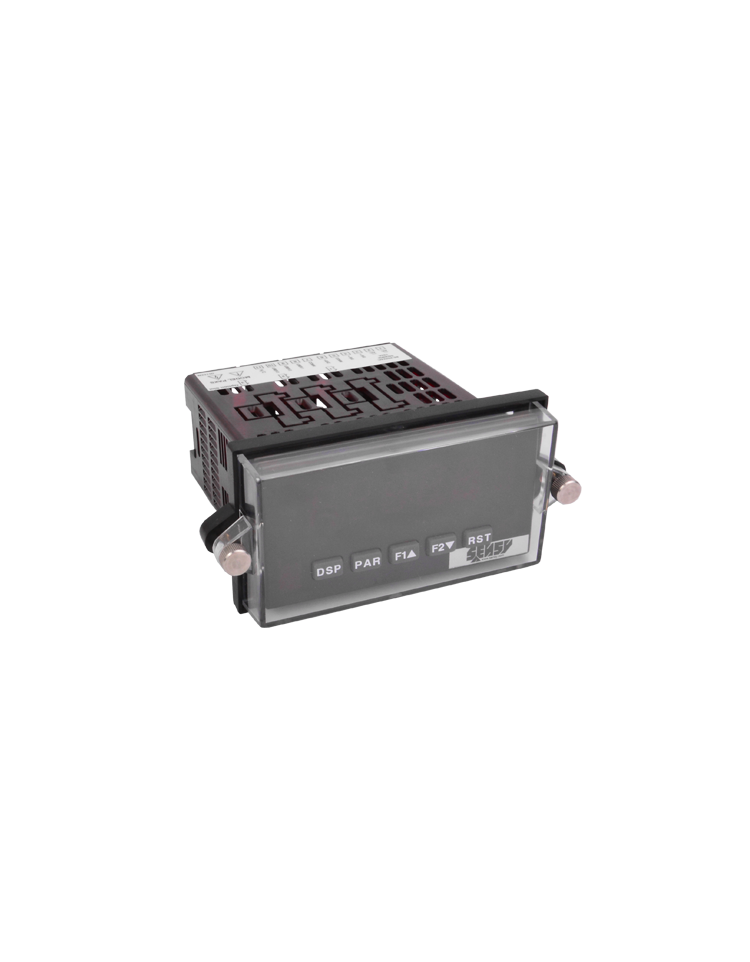

DUAL INPUT DISPLAYS


CE

Dual independent process input meters.

o A math function can be performed on both signals.
o Any of the 3 meter values can have alarms, analogue output or comms by adding optional card.
o Intuitive and easy programming (high flexibility)
o Variable intensity display
o 16 points scaling for linearisation
o Programmable function keys/user inputs


AVAILABLE OPTIONS

- Analogue output 4 (0)...20 mA or 0...10 V
- 2 or 4 set-points with relay outputs
- RS-232, RS-485, USB or fieldbus capabilities
- NEMA 4X / IP65 (transparent protection cover - Option "COVER PAX")
- Desktop or industrial steel housing
- Rail DIN adaptor
Add to basket
for quotation

DISP-PAXDPDISP-PAXDP24
Type (-)Dual process input meterDual process input meter
Input range (-)
2 x 20 mA (-26 to +26 mA) / 2 x 10 VDC (-13 to +13 VDC)2 x 20 mA (-26 to +26 mA) / 2 x 10 VDC (-13 to +13 VDC)
Sensor excitation (-)18 VDC ± 20 % @ 70 mA max. per input channel18 VDC ± 20 % @ 70 mA max. per input channel
Display (-)5 digits (14.2 mm)5 digits (14.2 mm)
Accuracy (% F.S.*)
0.10.1
A/D converter (-)
16 bits16 bits
Converter rate (-)Up to 20 readings /sUp to 20 readings /s
Service temperature range (°C)
0...+500...+50
Storage temperature range (°C)
-40...+60-40...+60
Power supply (-)
85...250 VAC, 50/60 Hz (21 VA)18...36 VDC (13 W), 24 VAC (16 VA)
IP rating (-) IP54IP54

*F.S. : Full Scale
** : configurable at user level
*** : IP rating only for front panel
Specifications subject to change without notice
