HAND-HELD RADIO RECEIVERS WITH DISPLAY


CE

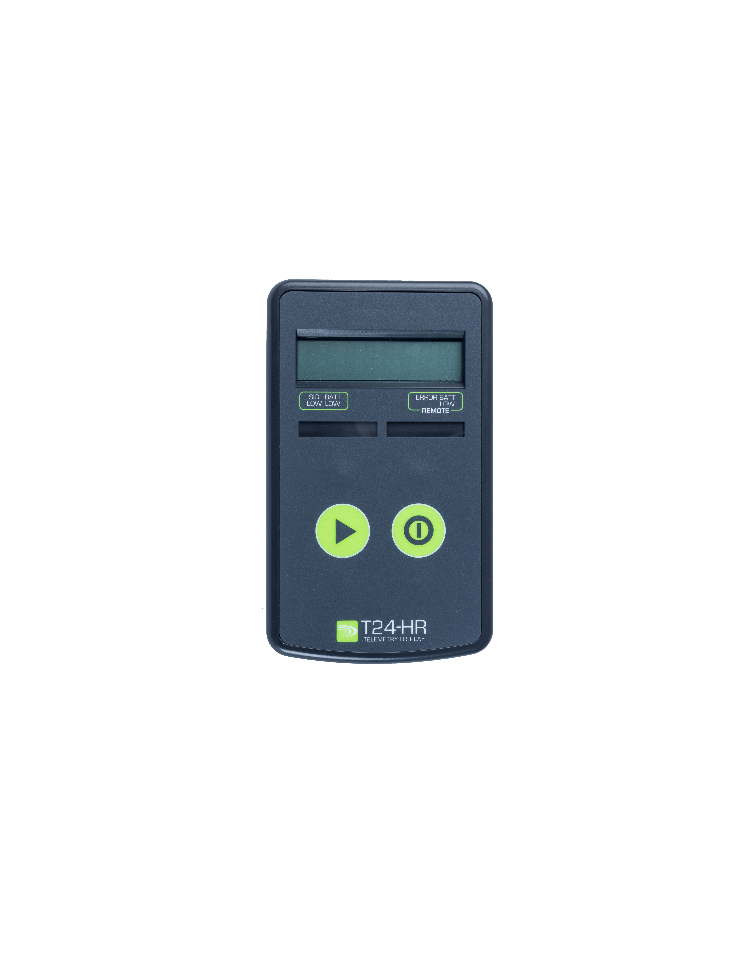

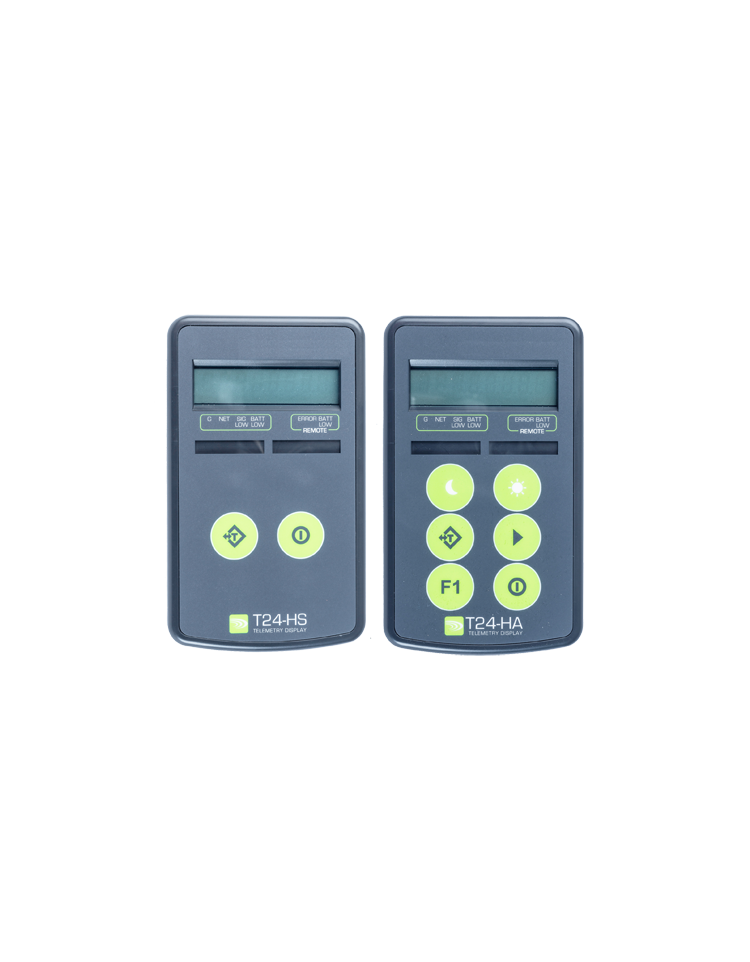

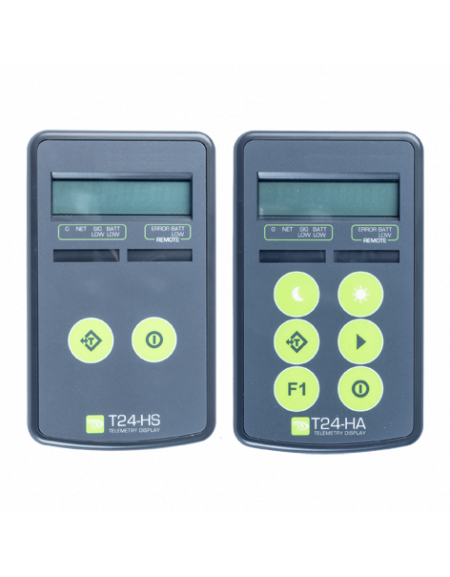

The WI-T24RE-HS, WI-T24RE-HA and WI-T24RE-HR are hand-held indicators for sensors equipped with a radio transmitter.

o Frequency:        2.4 GHz
o Licence:             exemption
o Range:               up to 800 m open field
o Antenna:            integrated
o High resolution:  7 digits
o Channels:
          - WI-T24RE-HS: 1
         - WI-T24RE-HA: up to 12
         - WI-T24RE-HR: displays all transmitters within its range (roaming)

"Technical drawings available on datasheet"


AVAILABLE OPTIONS

- leather carry case with clear viewing window and shoulder strap (CASE-PSD)
Add to basket
for quotation

WI-T24RE-HSWI-T24RE-HAWI-T24RE-HR
Type (-) Handheld indicator (1 sensor) Handheld indicator (up to 12 sensors) Handheld indicator (unlimited (roaming))
Display (-) 7 digits LCD of 8.8 mm high 7 digits LCD of 8.8 mm high 7 digits LCD of 8.8 mm high
Service temperature range (°C)
-10...+50 -10..+50 -10...+50
Storage temperature range (°C)
-40...+85 -40..+85 -40...+85
Power supply (-)
2.5 up to 3.6 VDC (2 AA alkalines batteries) 2.5 up to 3.6 VDC (2 AA alkalines batteries) 2.5 up to 3.6 VDC (2 AA alkalines batteries)
Autonomy @ normal mode (2 batteries) (-)
35 hours 35 hours 35 hours
Autonomy @ ''Powered off' mode (-)
18 months 18 months 18 months
Dimensions (mm) 152 x 90 x 34 152 x 90 x 34 152 x 90 x 34
IP rating (-) IP67 / NEMA 4 IP67 / NEMA 4 IP67 / NEMA 4

Specifications subject to change without notice.
