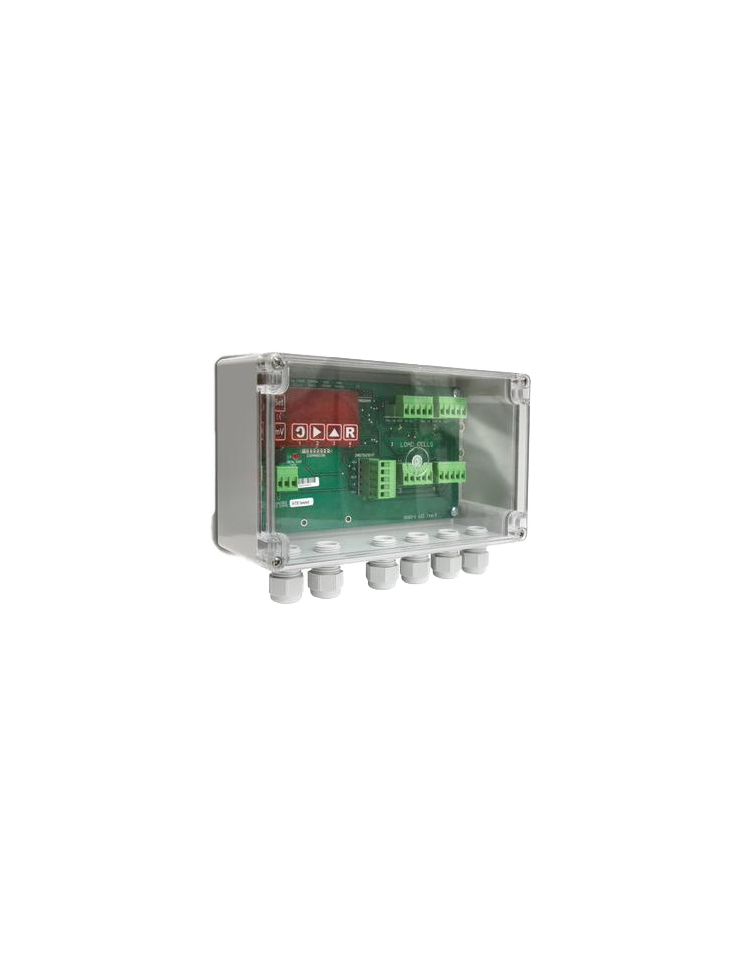

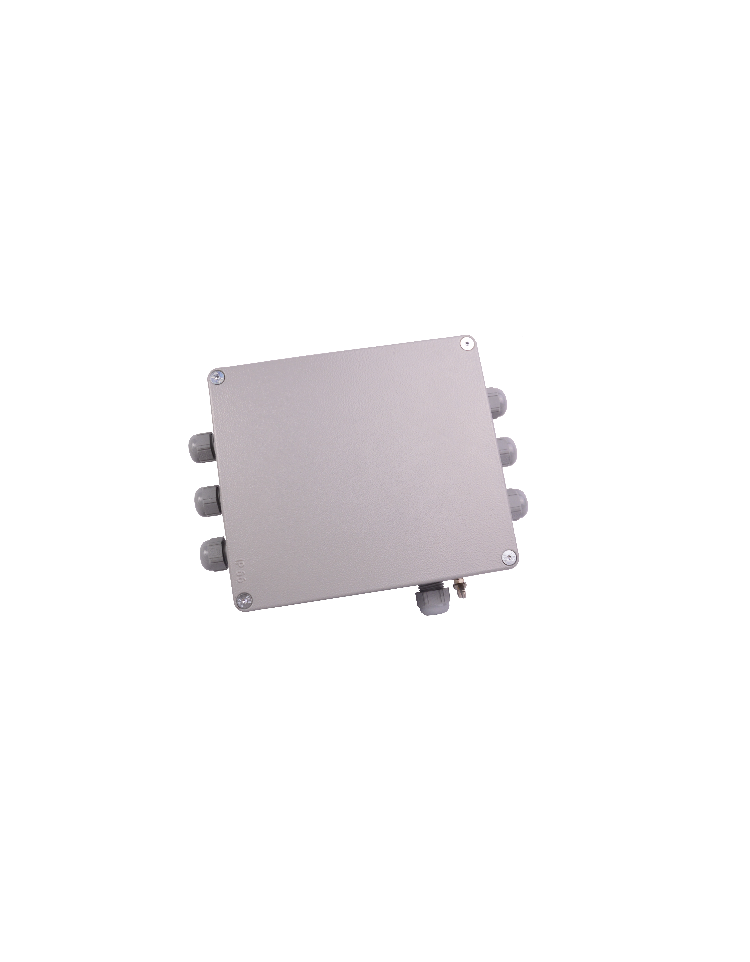

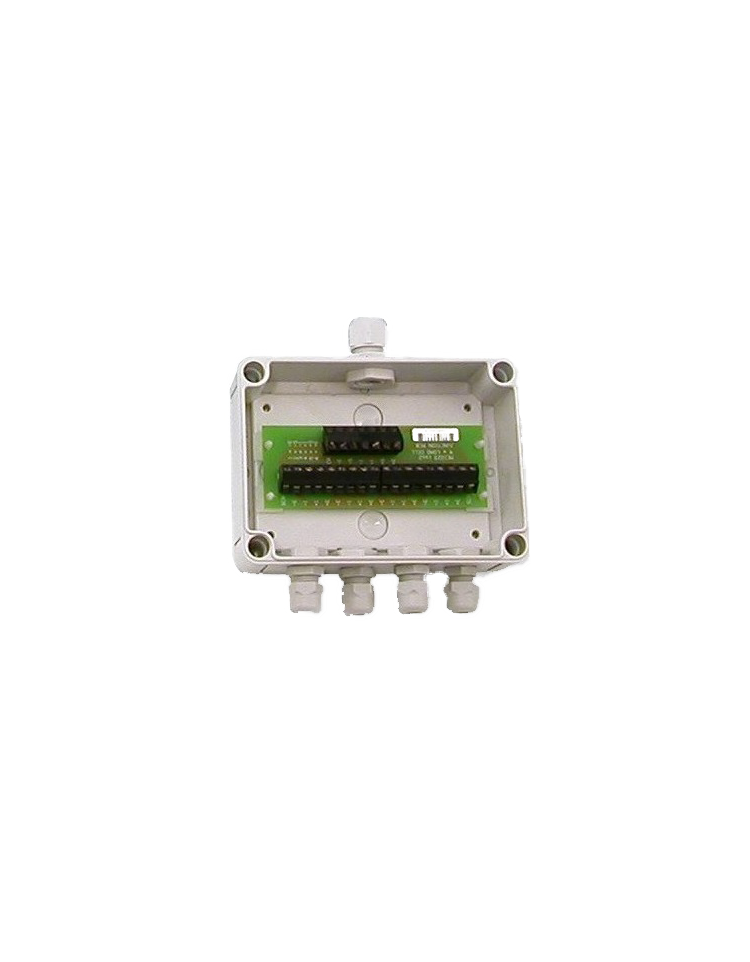

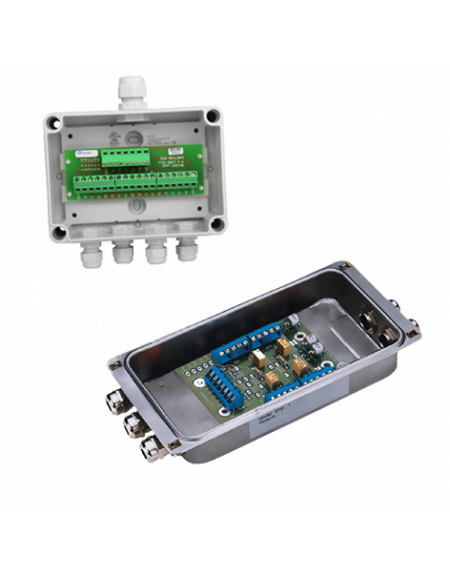

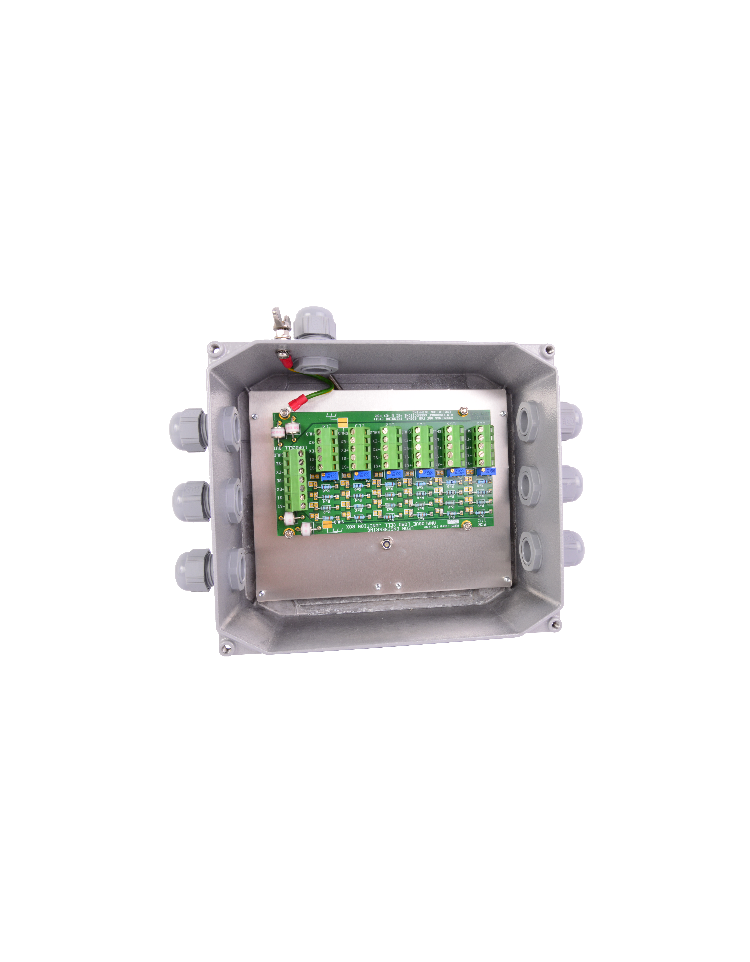

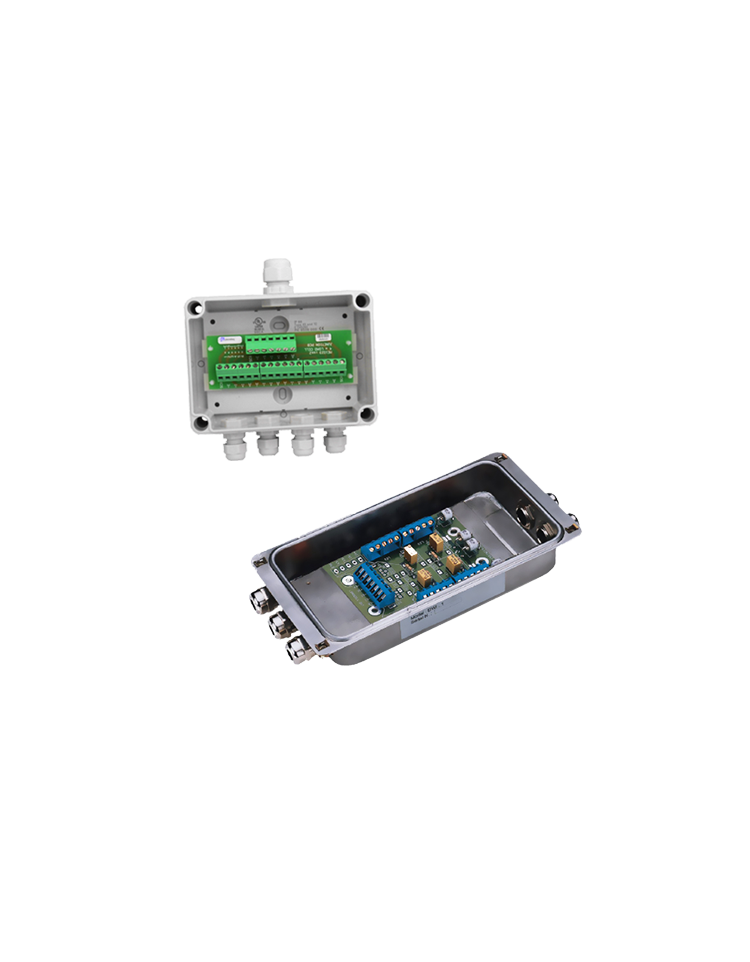

JUNCTION BOXES FOR WEIGHING SYSTEMS


CE

Junction boxes designed to connect several load cells in parallel to the same electronics with corner adjustment.

o 4 or 6 inputs
o Connection in 4 or 6 wires
o Cabling of load cells and electronics by screw terminals
o Waterproof

Add to basket
for quotation

JBOX-4JBOX-AJB-4JBOX-AJB-6
Qty of load cells max. (-) 4 4 6
Corner adjustment (-) No Yes Yes
Service temperature range (°C)
-10...+40 -10...+40 -10...+40
Storage temperature range (°C)
-30...+70 -30...+70 -30...+70
Qty of cable glands (-) 5 5 7
Material (-) Polycarbonate Stainless steel Stainless steel
IP rating (-) IP66 IP67 IP67

*F.S. : Full Scale.
Specifications subject to change without notice.
