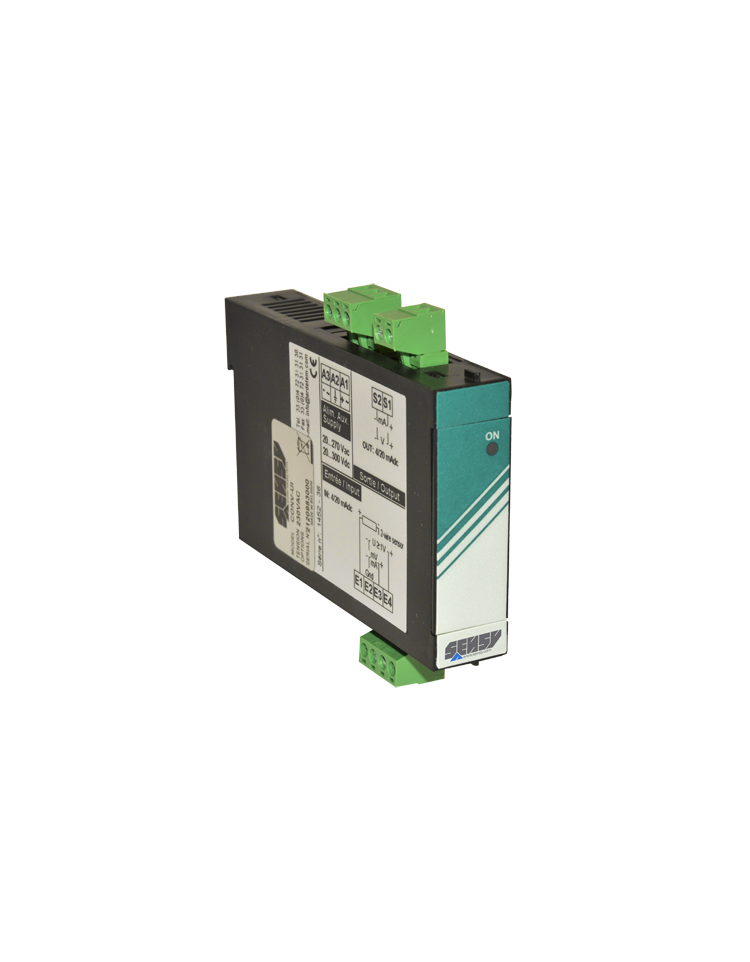

MEASUREMENT TRANSMITTER FOR DC VOLTAGE AND CURRENT SIGNALS


CE

Measurement transmitter designed to convert any not-normalised DC voltage or current signal into a normalised signal while providing galvanic insulation.

o Voltage or current input
o Galvanic isolation 2 kV RMS. 50 Hz during max. 60 s between input, output and power supply
o Selection of input and output ranges by jumpers behind the front plate
o Wide range of power supplies
o Rail DIN mounting
o Weight: 130 g
o Compliant with EMC EN  50082-2

"Technical drawings available on datasheet"

Add to basket
for quotation

CONV-UI
Type (-) Signal converter
Input range (-)
±10 mVDC, ±100 mVDC, ±1 VDC, ±10 VDC, ±100 VDC, ±500 VDC, ±5 mA, ± 50 mA
Accuracy (% F.S.*)
<= ± 0.2 %
Bandwidth (Hz)
0...1
Service temperature range (°C)
-10...+60
Storage temperature range (°C)
-30...+80
Power supply (-)
20...270 VAC / 20...300 VDC
Output tension (V) 0...10 V (load resistance > 1 kohm)
Output current (mA) 0...20 mA, 4...20 mA (load resistance < 750 ohms)
IP rating (-) IP20

*F.S. : Full Scale.
Specifications subject to change without notice.
