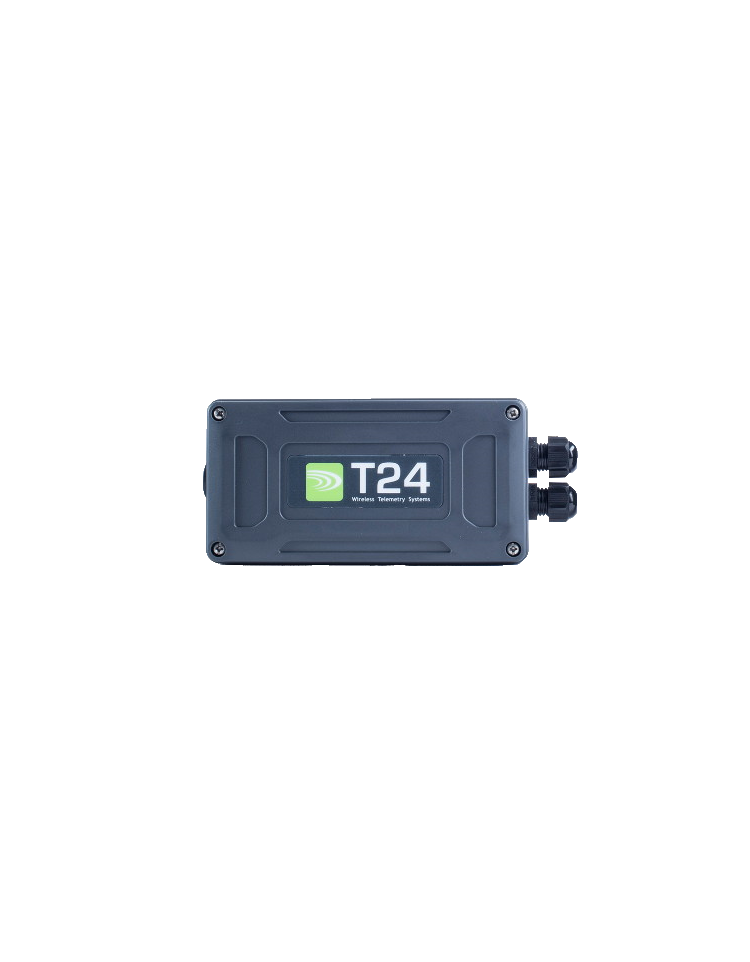

MULTICHANNEL WIRELESS RECEIVER WITH DIGITAL OUTPUT


CE

The WI-T24RE-SO is a base station designed to connect up to 8 transducers provided by a wireless transmitter WI-T24TR-ACM-xA to a PC or a PLC. It achieves configuration, calibration and data acquisition of each one or all of them.

o Frequency:        2.4 GHz
o Power:               10 mW
o License:             exemption
o Range:               up to 800 m open field
o Antenna:            integrated

"Technical drawings available on datasheet"

Add to basket
for quotation

WI-T24RE-SO
Communication (-) RS-232, RS-485
Service temperature range (°C)
-20...+55
Storage temperature range (°C)
-40...+85
Power supply (-)
9...32 VDC
Consumption (-) 100 mA @ 12 V
Dimensions (mm) 164 x 84 x 57
IP rating (-) IP67
Humidity (% RH) 0...95

Specifications subject to change without notice..

Typical Applications
Download our leaflet
