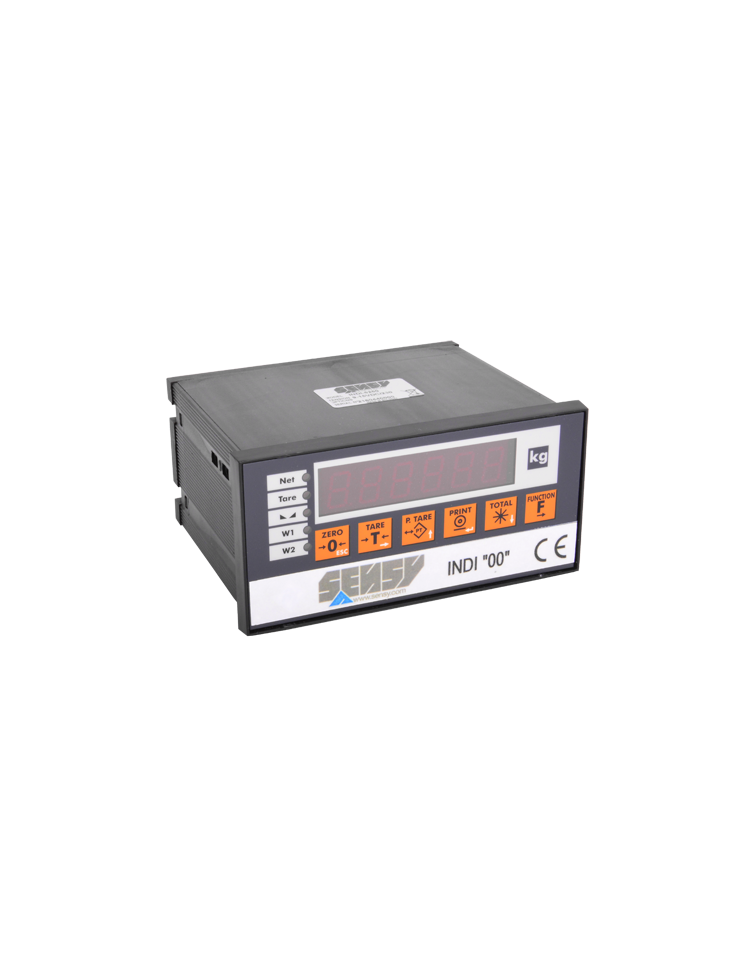

WEIGHING INDICATOR


CE OIML

Very-high-accuracy digital indicator designed for weighing applications.

o Approved for 10.000 d OIML
o Up to 70 measurements per second
o Alibi-memory for 10.000 records
o Parallel connection of up to 10 strain-gauge load cells (350 ohms)
o Display resolution up to 99.000 d
o Bright, 6-digit, red LED display (14 mm)
o Serial RS-232 port for connection to serial printer, computer or remote display
o Desktop or industrial housing
o 1 digital input (programmable as tilt input or to tare scale remotely or others)
o 2 digital outputs (programmable as weight set-points or as other control outputs)

"Technical drawings available on datasheet"


AVAILABLE OPTIONS

- analogue output 4(0)...20 mA or 0.02...10 V
Add to basket
for quotation

INDI-5250
Type (-) Strain-gauge input (mV/V)
Accuracy class (-)
10 000 d OIML
Input range (-)
1...4 mV/V
Sensor excitation (-) ±5 VDC switched polarity or +5 VDC, with sense
Non-linearity error (% F.S.*) <= 0.01
Display (-) 6 digits
Internal resolution (-) 550 000 div.
Service temperature range (°C)
-10...+40
Storage temperature range (°C)
-10...+70
Temperature coefficient of the sensitivity (% F.S.*/10°C) < 0.02
Temperature coefficient of zero signal (% F.S.*/10°C) < 0.02
Power supply (-)
9...15 VDC (adapter 230 VAC included)
IP rating (-) IP40 (IP54)

*F.S. : Full Scale.
** : front panel only.
Specifications subject to change without notice.
