WIRELESS RECEIVERS WITH DIGITAL OUTPUTS


CE

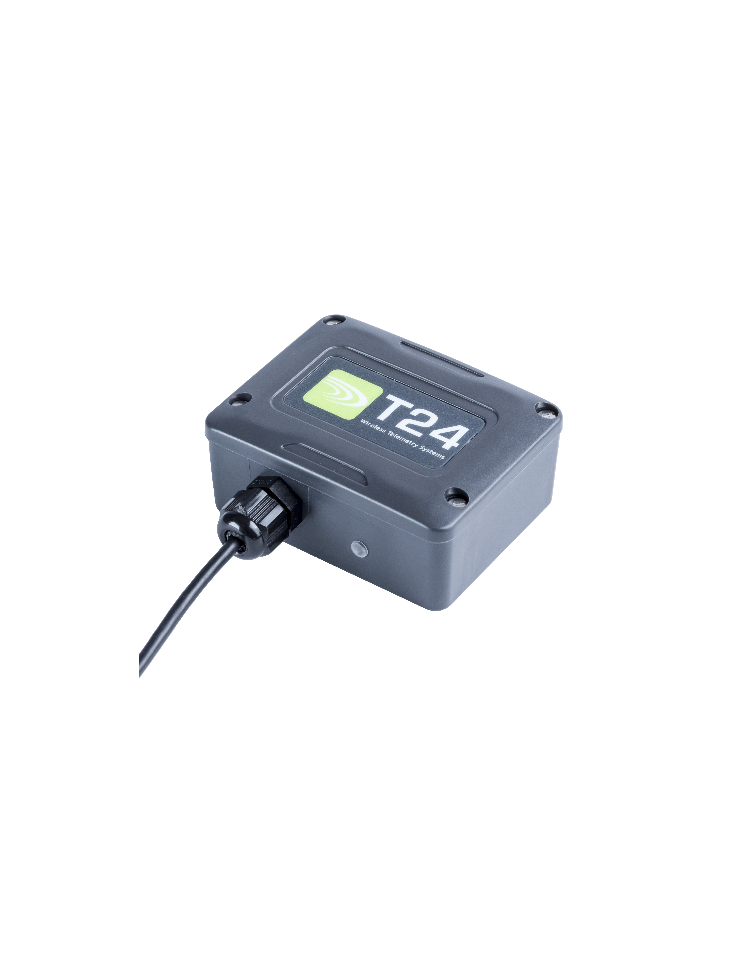

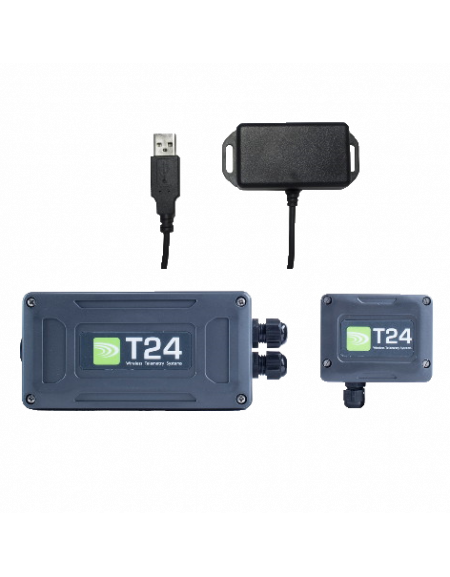

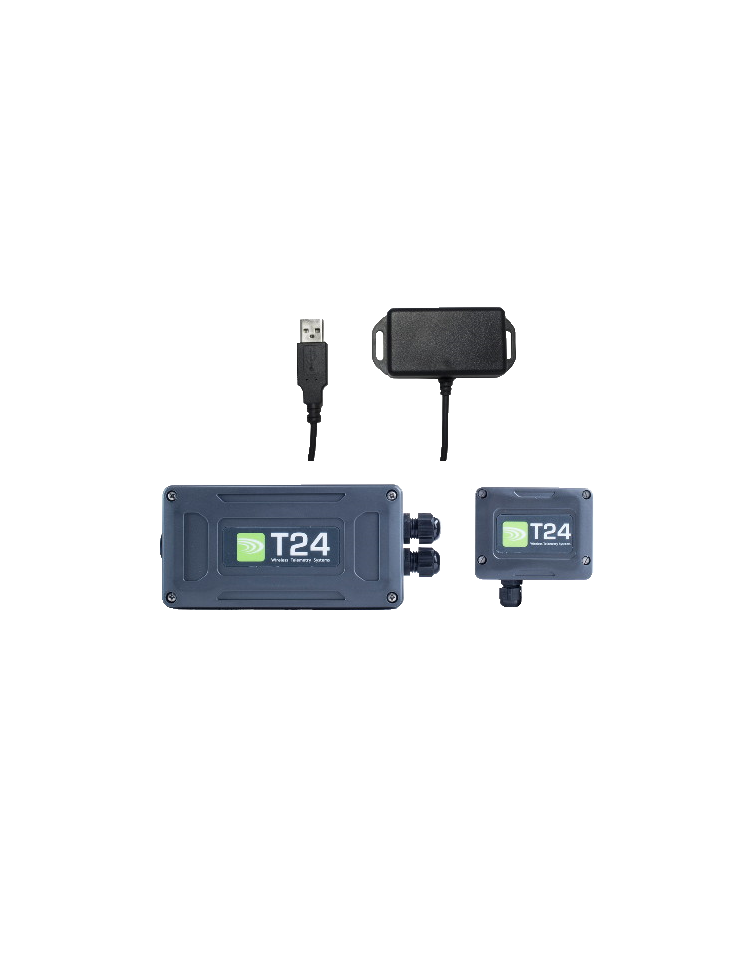

WI-T24RE-BSU, -BSUE and -BSI are base stations designed to connect every transducer provided by a wireless transmitter (WI-T24TR-ACM-xA) to a PC or a PLC in order to achieve its configuration, calibration and data acquisition.

o Frequency: 2.4 GHz
o Power:        10 mW
o Licence:      exemption
o Range:        up to 800 m open field
o Antenna:     integrated

"Technical drawings available on datasheet"

Add to basket
for quotation

WI-T24RE-BSUWI-T24RE-BSUEWI-T24RE-BSI
Communication (-) USB USB USB, RS-232, RS-485
Service temperature range (°C)
-20...+55 -20...+55 -20...+55
Storage temperature range (°C)
-40...+85 -40...+85 -40...+85
Power supply (-)
4.875...5.125 VDC (USB) 4.875...5.125 VDC (USB) 9...32 VDC
Consumption (-) - - 100 mA @ 12 V
Dimensions (mm) 76 x 35 x 20 80 x 62 x 34 164 x 84 x 57
IP rating (-) IP50 IP67 IP67
Humidity (% RH) 0...95 0...95 0...95

Specifications subject to change without notice.
