Tension and compression load cells very high capacities

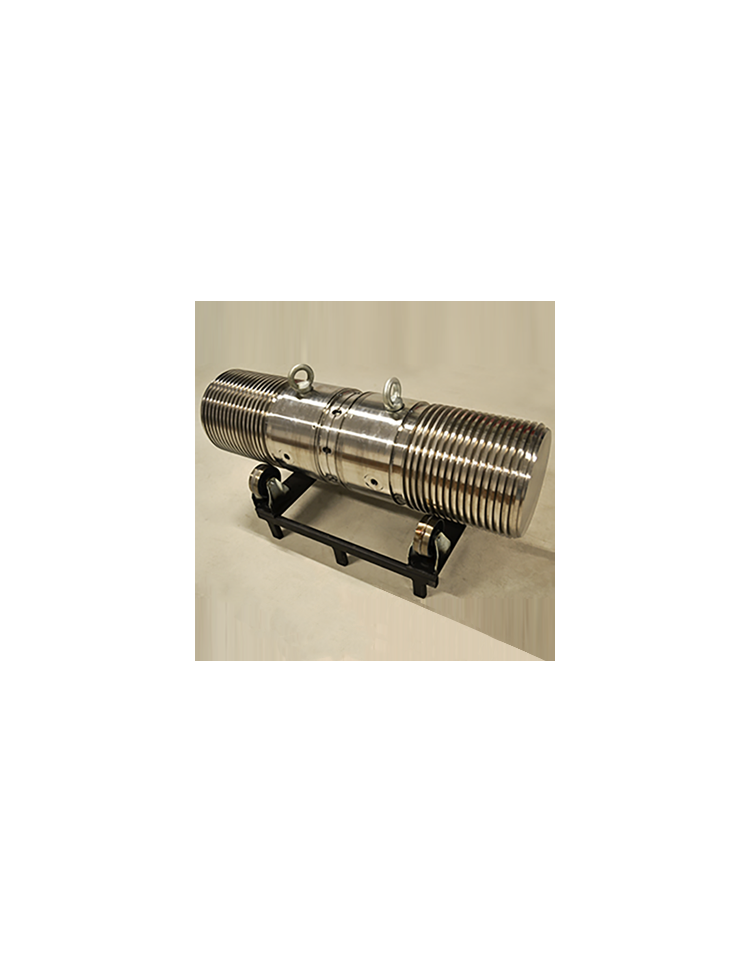

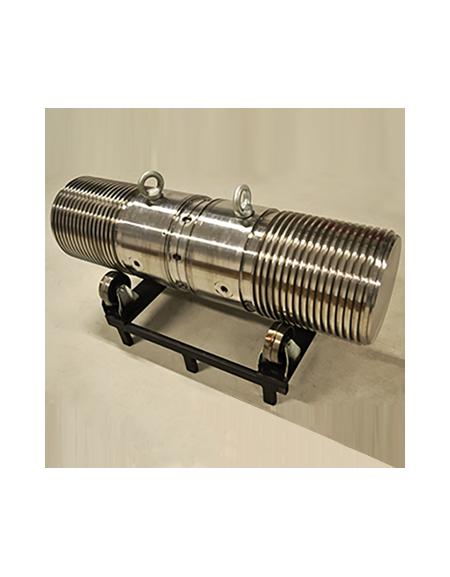

A tension-compression standard transducer with a very high measuring range: 27 MN developed for the calibration of a tension and compression test bench

This type of transducer is always custom-made to fit the dimensions of the testing machine and the mounting accessories of the customer.
In addition, custom-loading accessories are required for calibration and qualification in a certified metrology institute.

Specifications:

  • Measurement range : 27 MN in traction and compression
  • Accuracy : Certified class "0.5" accordintg to ISO376
  • Material : Alloy steel
  • Height : 1,46 m (57,48")
  • Diameter : 0.45 m (17,72")
  • Threads : TR 400x24
  • Protection class : IP66
  • Weight : 1421 kg (3132,77 lb)
