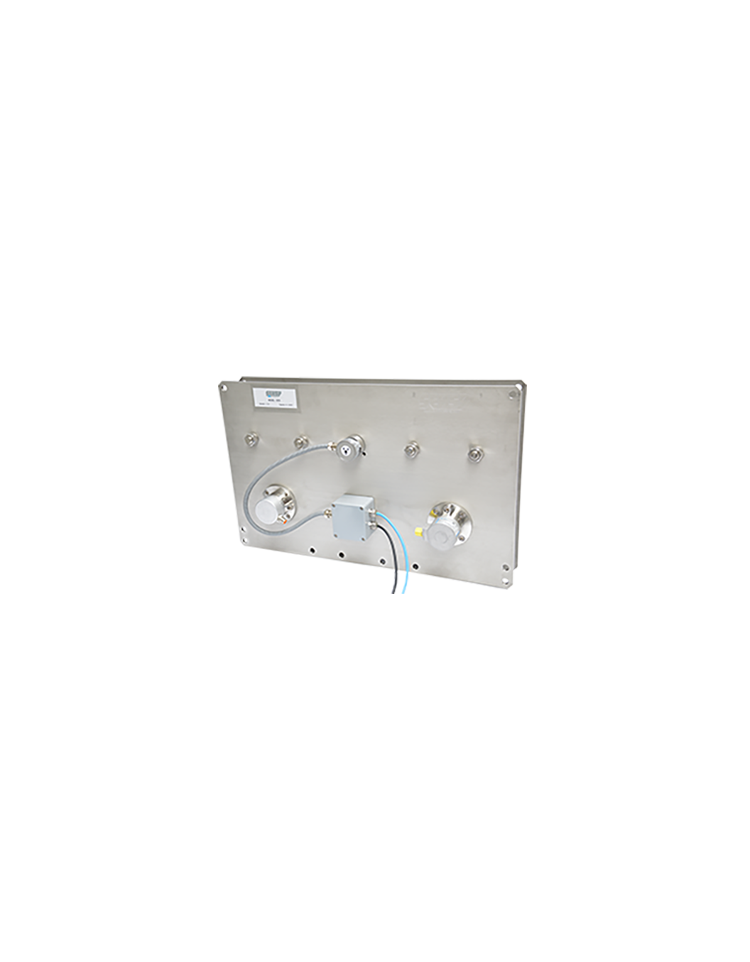

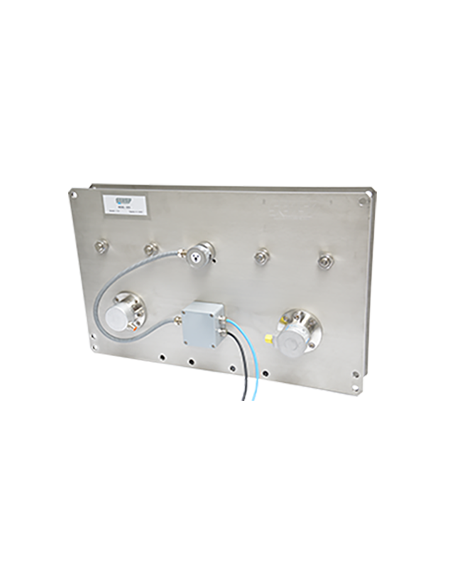

Running line tensiometer

Running line tensiometer for measuring the tension force applied to the cable (slickline) supporting the train of devices lowered into wells during oil exploration.
In addition to the tension force measurement, there is a displacement measurement (payout) and cable speed.
This transducer is designed to be connected to the display DISP-RLT (indicator for running line tensiometer).

Specification :

• Measurement ranges:
  • Force : 60 kN
  • Movement : 5000 m
  • Speed : 20 m/min
• Output signal :
  • Force : 4..20 mA
  • Movement : Absolute encoder (SSI)
  • Speed : Incrementam encoder
• Certification: ATEX, IECEx et CSA
