CRANE OVERLOAD PROTECTION ELECTRONICS FOR 4 CHANNELS + SUM


OVERLOAD

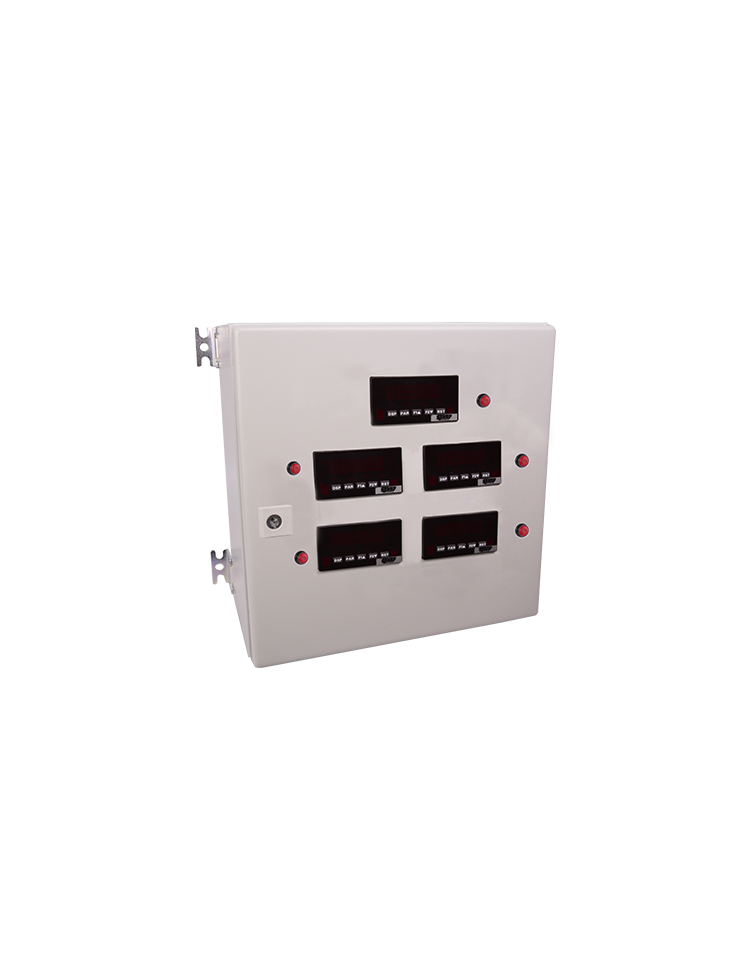

The CABIN-4IB1SUMD and CABIN-4DB1SUMD are crane overload protection systems designed to manage 4 hoisting devices as well as the sum of the loads.

    x = input:
           - I: mV/V or
           - D: process input 4(0)...20 mA
o Easy and intuitive calibration
o Display of hoisted loads and input signals
o Internal monitoring system of load cell integrity and load limitation electronics (fail safe)



AVAILABLE OPTIONS

- Analogue output 4 (0)...20 mA or 0...10 V
- RS-232, RS-485, USB or fieldbus capabilities
- NEMA 4X / IP67 (transparent protection cover - option "COVER PAX")
- power supply: 48 VAC / 24 VDC (see CABIN-4xB1SUMD2 products)
- stainless steel cabinet
Add to basket
for quotation

CABIN-4IB1SUMDCABIN-4IB1SUMD12CABIN-4DB1SUMDCABIN-4DB1SUMD12
Type (-) Load limiter for 4 load cells Load limiter for 4 load cells Load limiter for 4 load cells Load limiter for 4 load cells
Input range (-)
± 24 mVDC / ± 240 mVDC ± 24 mVDC / ± 240 mVDC 20 mA (-2 to +26 mA) 20 mA (-2 to +26 mA)
Sensor excitation (-) 10 VDC @ 125 mA (max) 10 VDC @ 125 mA (max) 24 VDC ± 5 % @ 50 mA (max) 24 VDC ± 5 % @ 50 mA (max)
Display (-) 5 x 5 digits (14.2 mm) 5 x 5 digits (14.2 mm) 5 x 5 digits (14.2 mm) 5 x 5 digits (14.2 mm)
Accuracy (% F.S.*)
0.5 0.5 0.5 0.5
Service temperature range (°C)
0...+50 0...+50 0...+50 0...+50
Storage temperature range (°C)
-40...+60 -40...+60 -40...+60 -40...+60
Power supply (-)
85...250 VAC, 50/60 Hz (75 VA) 11...36 VDC (55 W) 24 VAC (75 VA) 85...250 VAC, 50/60 Hz (75 VA) 11...36 VDC (55 W) 24 VAC (75 VA)
Qty of relay (-) 4 x 3 + 4 4 x 3 + 4 4 x 3 + 4 4 x 3 + 4
Relay type (-) "Form A"- potential free "Form A"- potential free "Form A"- potential free "Form A"- potential free
Contact rating (-) 3 A @ 250 VAC / 30 VDC Resistive load 3 A @ 250 VAC / 30 VDC Resistive load 3 A @ 250 VAC / 30 VDC Resistive load 3 A @ 250 VAC / 30 VDC Resistive load
IP rating (-) IP54 IP54 IP54 IP54

*F.S. : Full Scale.
** : configurable at user's level.
*** : 5 VDC @ 65 mA max (jumper selectable).
**** : we recommend the CABIN-4xB1SUM2 for use in 24 VDC.
Specifications subject to change without notice.
