CRANE OVERLOAD PROTECTION ELECTRONICS FOR THE SUM OF SEVERAL CHANNELS


OVERLOAD

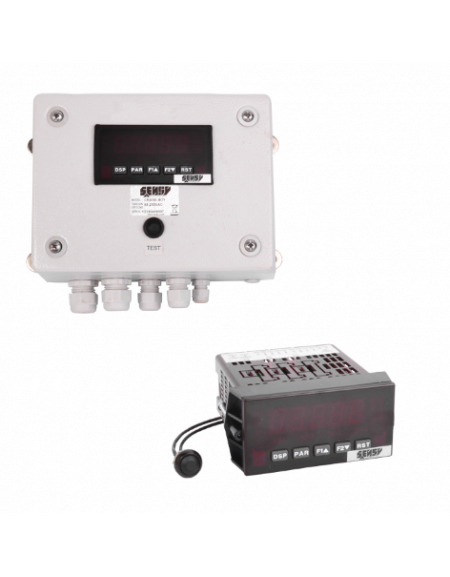

CRANE-SUMD and DISP-SUMD are designed to limit the sum of the load of several hoisting devices already equipped with their own load limitation device.

o Type:

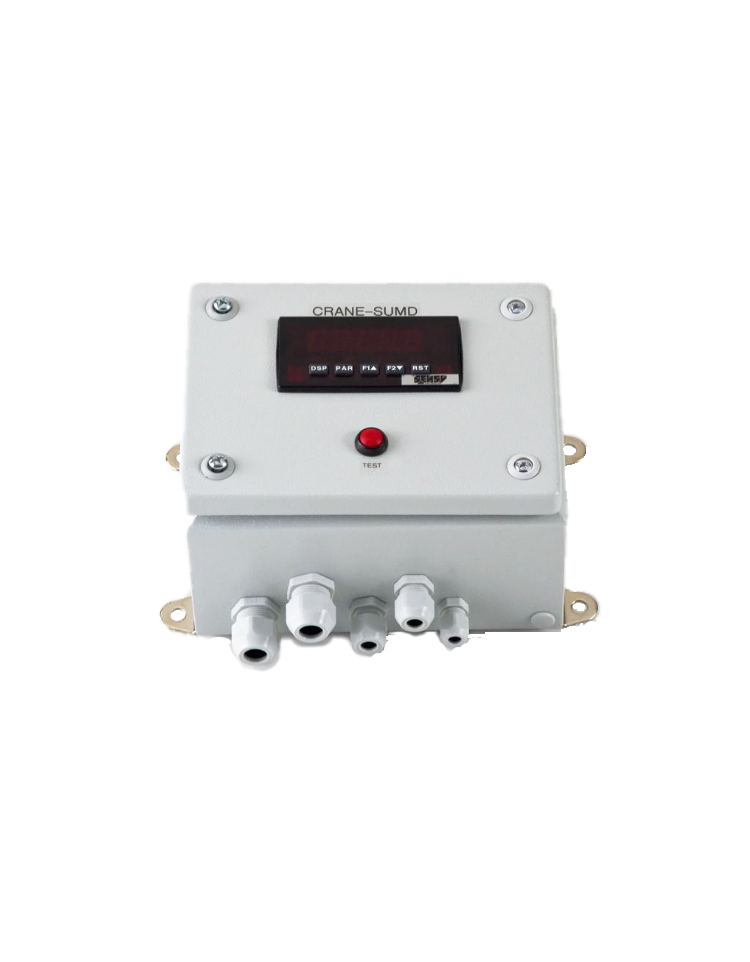

      - CRANE-SUMD: with industrial metallic housing

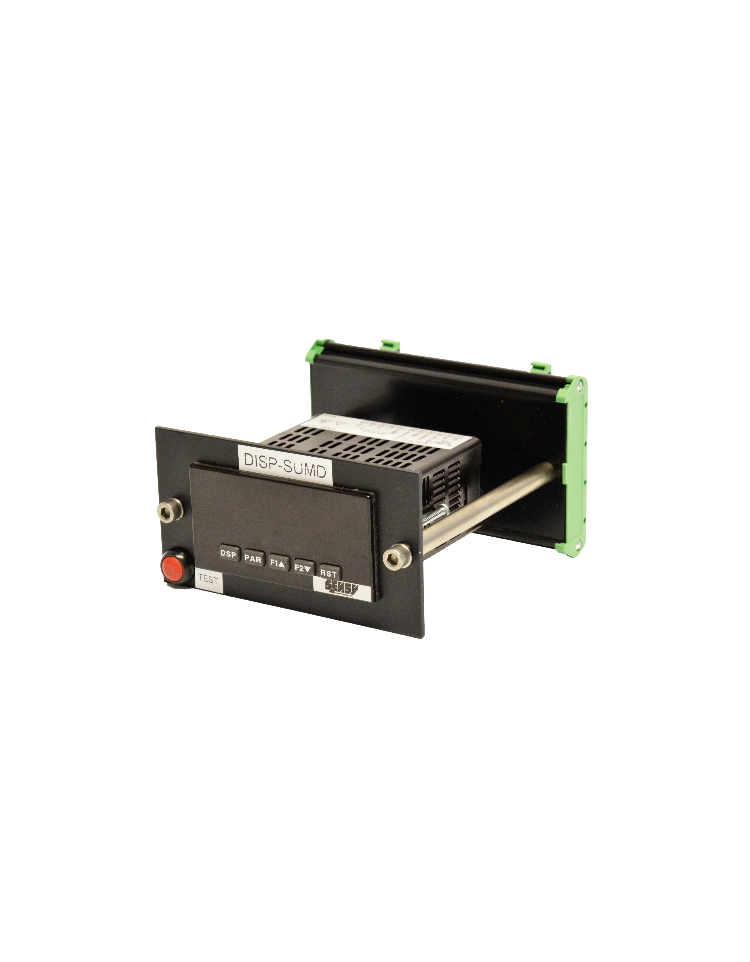

      - DISP-SUMD: to be installed on the front panel
o Connected to the analogue output (4...20 mA) of the load limitation electronics BRIDGE-BOY, CRANE-BOY, INDI-BOY, DISP-BOYP, etc. (CARD-CDL10 option)
o  Easy and intuitive calibration
o  Display of hoisted load and input signal


AVAILABLE OPTIONS

- analogue output  4(0)...20 mA / 0...10 V
- RS-232, RS-485 or fieldbus output
- power supply: 48 VAC / 24 VDC (see CRANE-SUMD2 and DISP-SUMD2 porducts)
- stainless steel housing
- NEMA 4X / IP67 (transparent protection cover - Option "COVER PAX")
- rail DIN adaptor
Add to basket
for quotation

CRANE-SUMDCRANE-SUMD12DISP-SUMDDISP-SUMD12
Type (-) Load limiter of the sum Load limiter of the sum Load limiter of the sum Load limiter of the sum
Input range (-)
±20 mA, ±200 mA ±20 mA, ±200 mA ±20 mA, ±200 mA ±20 mA, ±200 mA
Display (-) 5 digits (14.2 mm) 5 digits (14.2 mm) 5 digits (14.2 mm) 5 digits (14.2 mm)
Accuracy (% F.S.*)
0.1 0.1 0.1 0.1
Service temperature range (°C)
0...+50 0...+50 0...+50 0...+50
Storage temperature range (°C)
-40...+60 -40...+60 -40...+60 -40...+60
Power supply (-)
85...250 VAC, 50/60 Hz (15 VA) 11...36 VDC (11 W) 24 VAC (15 VA) 85...250 VAC, 50/60 Hz (15 VA) 11...36 VDC (11 W) 24 VAC (15 VA)
Qty of relay (-) 3 3 3 3
Relay type (-) "Form A"- potential free Form A - potential free Form A - potential free Form A - potential free
Contact rating (-) 3 A @ 250 VAC / 30 VDC Resistive load 3 A @ 250 VAC / 30 VDC Resistive load 3 A @ 250 VAC or 30 VDC resistive load 3 A @ 250 VAC or 30 VDC Resistive load
IP rating (-) IP54 IP54 IP54 IP54

*F.S. : Full Scale.
** : IP rating for front panel only.
*** : we recommend the CRANE-SUMD2 and DISP-SUMD2 for use in 24 VDC.
Specifications subject to change without notice.
