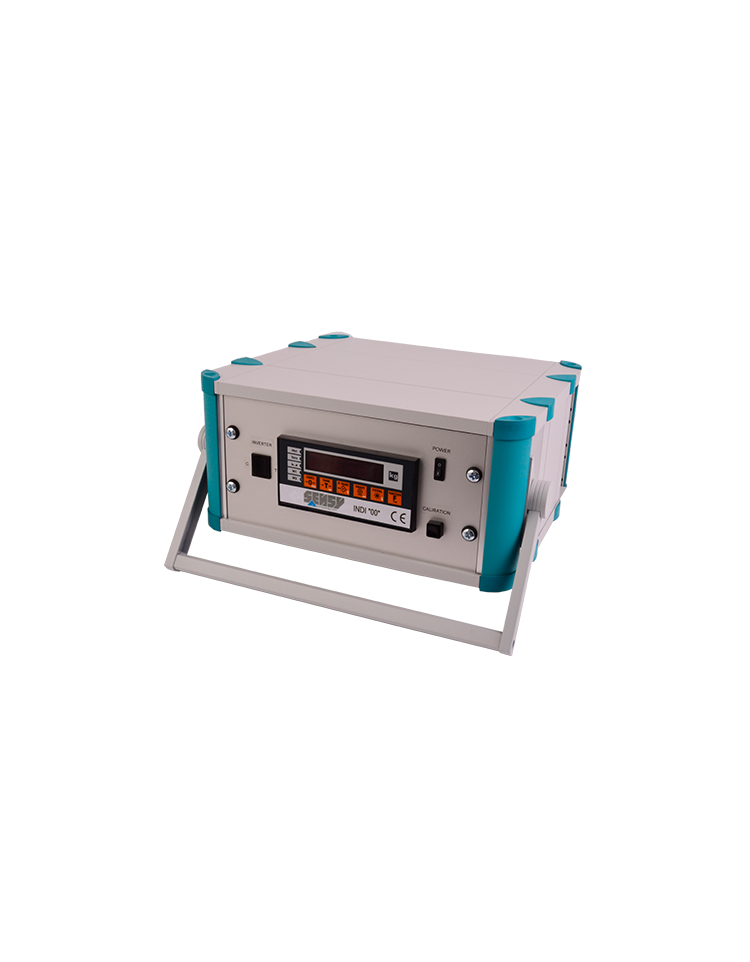

DISPLAY FOR STANDARD REFERENCE FORCE TRANSDUCERS
The INDI-00 is a high-accuracy portable indicator designed to be used in combination with standard reference force transducers with accuracy classes 1, 0,5 and 00*** according to ISO 376 standard.
- working with rechargeable battery (charger included)
o High accuracy: 0.01%
o High resolution: 5 1/2 digits
o 6-wire connection
o RS-232 output
AVAILABLE OPTIONS
- acquisition and management software- working with rechargeable battery (charger included)
| INDI-00 | |
|---|---|
| Type (-) | Strain-gauge input (mV/V) |
| Accuracy class (-) | Classes 1, 05 and 00 compatible |
| Input range (-) | -0.25...2 / -0.25...4 mV/V |
| Sensor excitation (-) | +5 VDC switched polarity or + 5 VDC with "sense" |
| Non-linearity error (% F.S.*) | <= 0.01 |
| Display (-) | 6 digits |
| Internal resolution (-) | 550 000 div. |
| Service temperature range (°C) | -10...+40 |
| Storage temperature range (°C) | -10...+70 |
| Temperature coefficient of the sensitivity (% F.S.*/10°C) | < 0.02 |
| Temperature coefficient of zero signal (% F.S.*/10°C) | < 0.02 |
| Power supply (-) | 230 VAC |
| Weight (kg) | 6.7 |
*F.S. : Full Scale.
** : internal rechargeable battery (option).
*** : with a calibration in mV/V or on request.
Specifications subject to change without notice.
