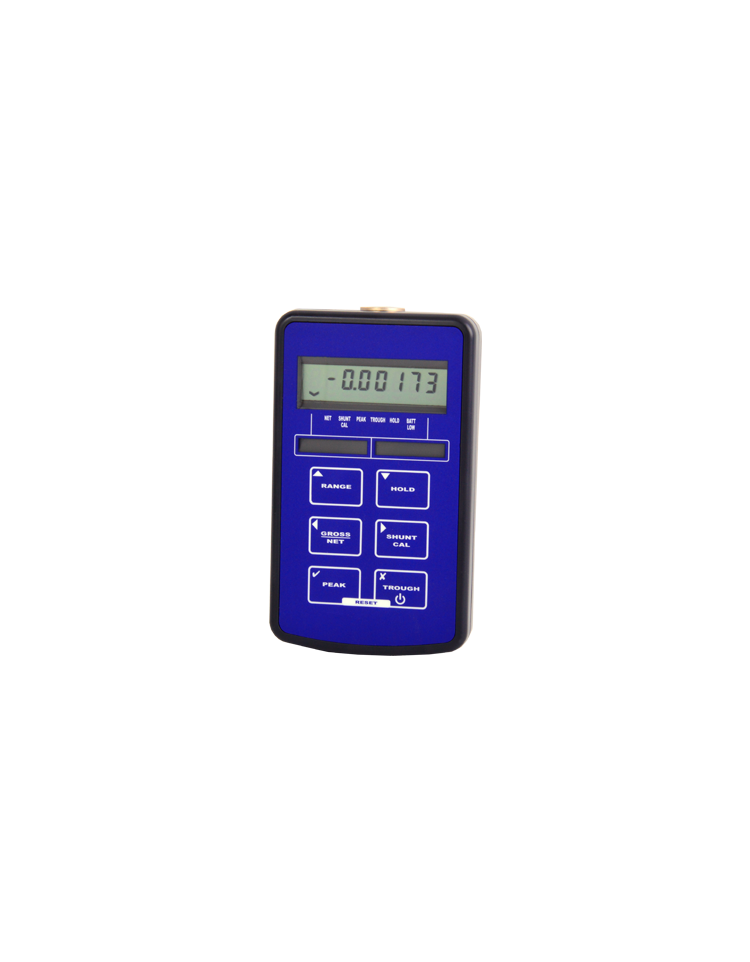

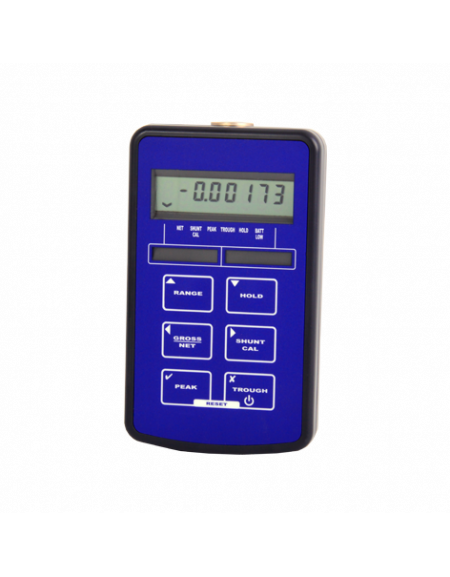

HAND-HELD DISPLAYS FOR STRAIN-GAUGE-BASED TRANSDUCERS


CE

The INDI-PSD are hand-held indicators for load cells, force transducers or torque meters based on strain-gauge technology.

o 7 digit LCD display
o High resolution
o Light (250 g)
o Dual range
o Large autonomy (450 h in power save mode)

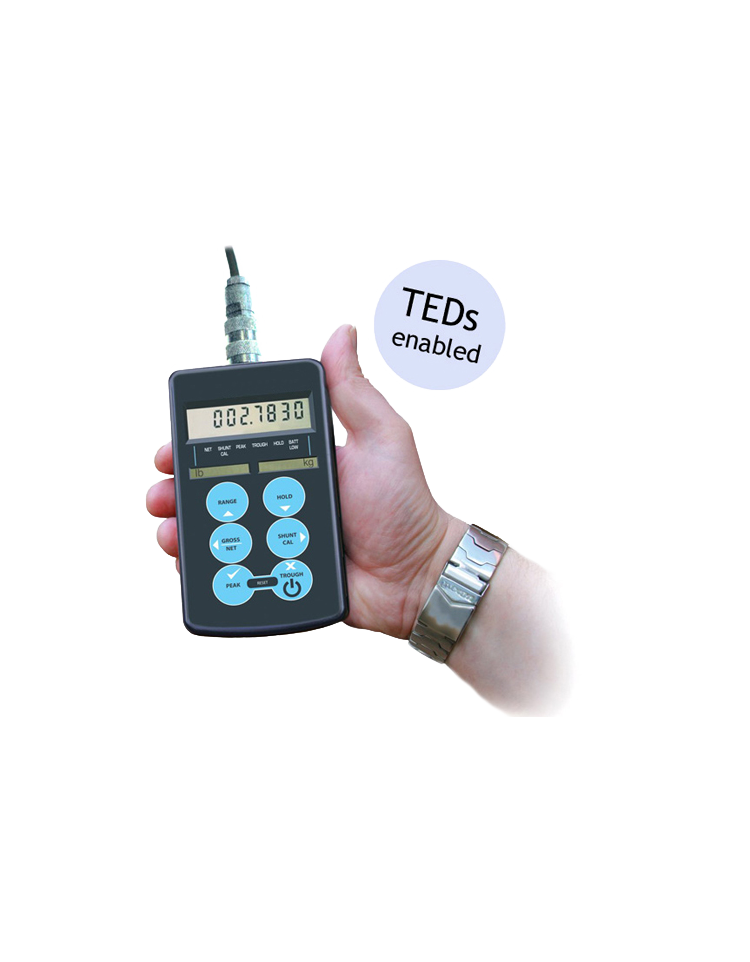

o TEDS enabled
o RS-232 output (INDI-PSD232 only)

"Technical drawings available on datasheet"


AVAILABLE OPTIONS

- CASE-PSD: leather case with shoulder strap and clear viewing
- BATT-PSD: rechargeable batteries with charging unit (230 VAC)
Add to basket
for quotation

INDI-PSDINDI-PSD232
Type (-) Strain-gauge hand-held indicator Strain-gauge hand-held indicator
Input range (-)
± 5 mV/V ± 5 mV/V
Sensor excitation (-) 5 VDC (59 mA max.) 5 VDC (59 mA max.)
Non-linearity error (% F.S.*) <± 0.005 <± 0.005
Display (-) 7 digits LCD (8.8 mm) 7 digits LCD (8.8 mm)
A/D converter (-)
250 000 pts@1 Hz / 65 000 pts@10 Hz 250 000 pts@1 Hz / 65 000 pts@10 Hz
Communication (-) no RS-232
Service temperature range (°C)
-10...+50 -10...+50
Storage temperature range (°C)
-40...+65 -40...+65
Temperature coefficient of the sensitivity (% F.S.*/10°C) <± 0.005 <± 0.005
Temperature coefficient of zero signal (% F.S.*/10°C) <± 0.007 <± 0.007
Power supply (-)
2 x AA alkaline batteries 2 x AA alkaline batteries
IP rating (-) IP65 IP65

*F.S. : Full Scale.
** : Battery life : 35 h (450 h in low power mode) with transducer of 350 ohms.
*** : Transducer impedance of 85...5000 ohms.
Specifications subject to change without notice.
