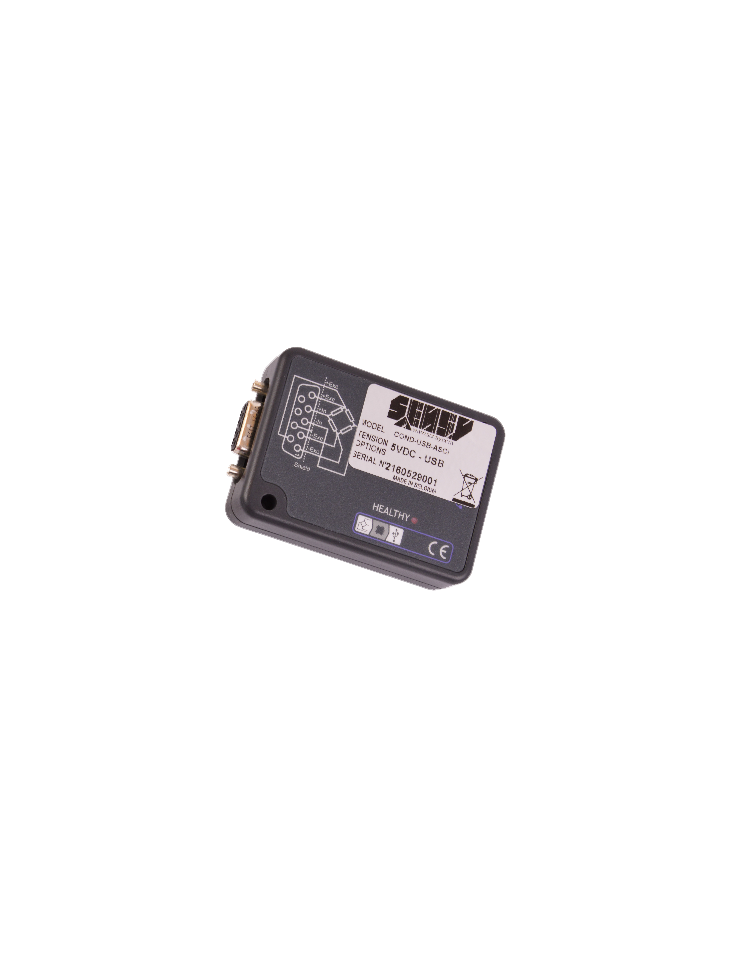

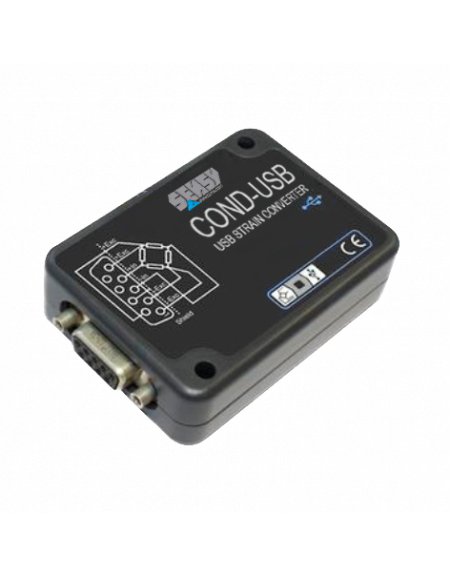

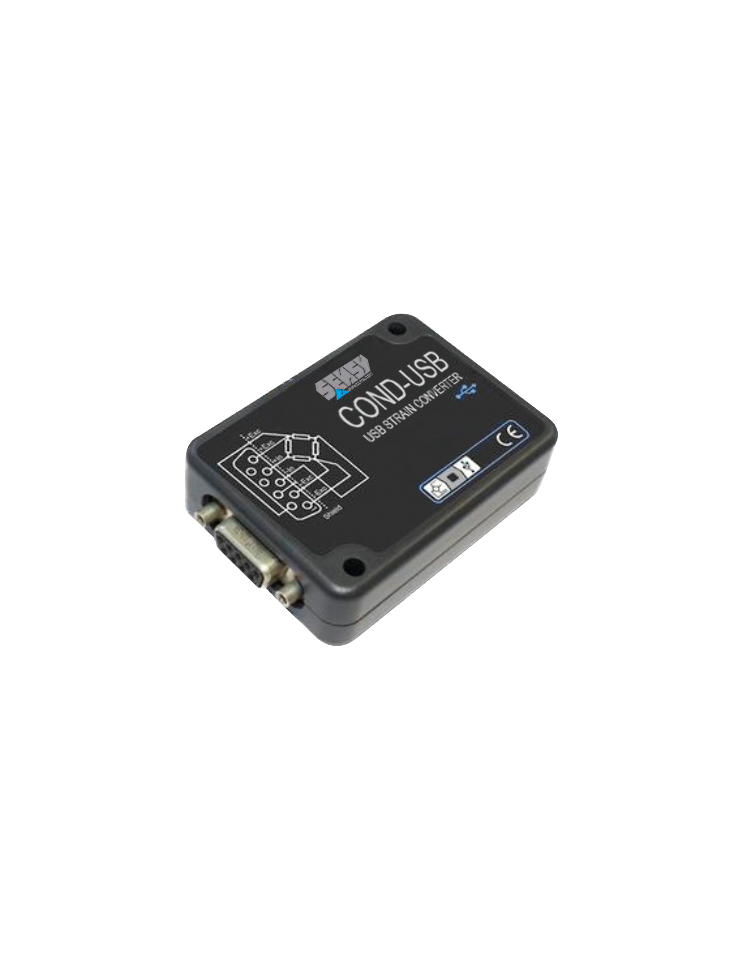

STRAIN-GAUGE BRIDGE TO USB CONVERTER


CE

The COND-USB converts the signal from a Wheatstone bridge (mV/V) into a USB signal.

o High accuracy
o Very high resolution
o Linearisation of transducer signal available
o Toolkit software included
o ABS IP50 enclosure
o DB9 socket @ load cell side
o Micro USB socket with 1.5 m cable

"Technical drawings available on datasheet"

Add to basket
for quotation

COND-USB
Input range (-)
±3 mV/V
Sensor excitation (-) 4.5...5.25 VDC
Non-linearity error (% F.S.*) <=± 0.0025
Impedance of Wheatstone bridge (ohm(s)) 85...5000
Baud rate (-) 115...200 kbps
A/D converter (-)
50 000...200 000 div.
Protocol (-) ASCII
Bandwidth (Hz)
1...100
Service temperature range (°C)
-40...+85
Temperature coefficient of the sensitivity (% F.S.*/10°C) <± 0.005
Temperature coefficient of zero signal (% F.S.*/10°C) <± 0.004
Consumption (max.) (mA) 68
Dimensions (mm) 74.5 x 51 x 20
IP rating (-) IP50

*F.S. : Full Scale.
** : with Wheatstone bridge of 350 ohms.
*** : according to reading frequency.
**** : 95% relative humidity.
Specifications subject to change without notice.
