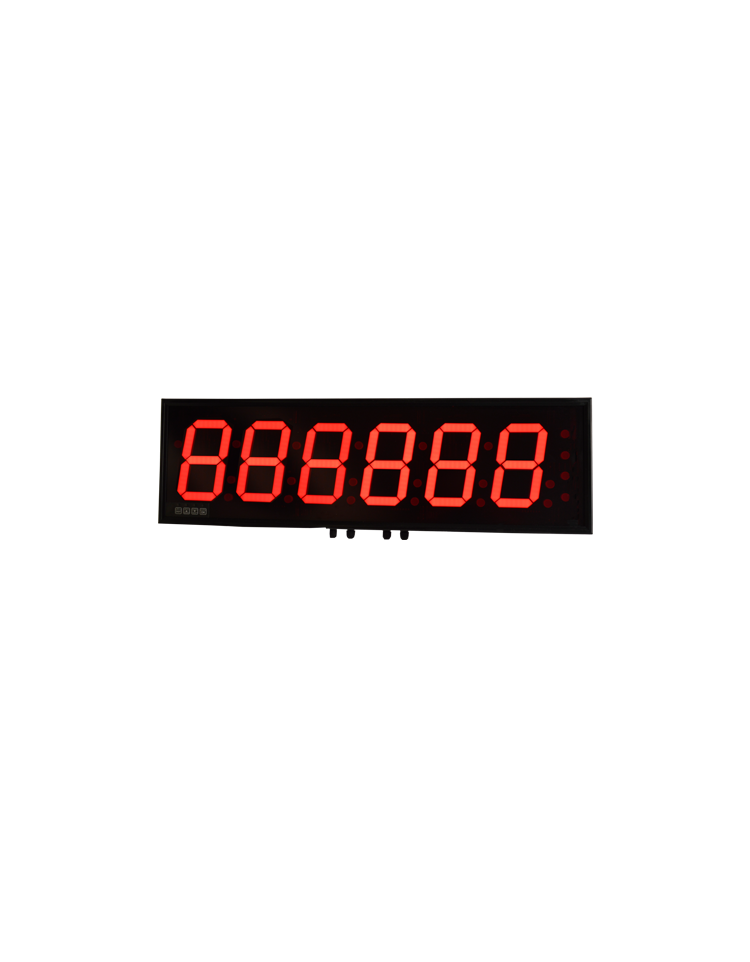

LARGE DIGITAL DISPLAYS


CE

Large digital displays for distance reading.

DISP-Fx-yz

    x = input
           - P: process input: 0...10 V and 4(0)...20 mA
           - S2: RS-232
           - S4: RS-485

    y = Digits (4 or 6)

    z = Digits height:
           - DISP-Fx-y2:     57 mm
           - DISP-Fx-y4:   102 mm
           - DISP-Fx-y6:   150 mm
           - DISP-Fx-y8:   200 mm
           - DISP-Fx-y12: 300 mm
           - DISP-Fx-y16: 400 mm
           - other on request

"Technical drawings available on datasheet"



Add to basket
for quotation

DISP-Fx-yz-ACDISP-Fx-yz-AC48DISP-Fx-yz-DC
Type (-) Large indicator Large indicator Large indicator
Non-linearity error (% F.S.*) <± 0.05 <± 0.05 <± 0.05
Display (-) 4 / 6 digits 4 / 6 digits 4 / 6 digits
Low pass filter (Hz) 0...25 0...25 0...25
Service temperature range (°C)
0...50 0...50 0...50
Storage temperature range (°C)
-20...70 -20...70 -20...70
Temperature coefficient of the sensitivity (% F.S.*/10°C) <± 0.025 <± 0.025 <± 0.025
Temperature coefficient of zero signal (% F.S.*/10°C) <± 0.03 <± 0.03 <± 0.03
Power supply (-)
100...240 VAC (40 VA) 48 VAC 11...30 VDC
IP rating (-) IP65 IP65 IP65

*F.S. : Full Scale.
** : N.A . for DISP-FS2-yz and DISP-FS4-yz.
*** : option -25...+50°C (internal heating system).
**** : display mounted vertically.
Specifications subject to change without notice.

Datasheets
Manuals
  • MA-DISP-FP4x & 6x_EN.pdf (1.53M) *
  • MA-DISP-FP4x & 6x_FR.pdf (1.77M) *
  • MA-DISP-FP4x et 6x serial-RS232-RS485_EN.pdf (3.14M) *
