CONDITIONERS - AMPLIFIERS FOR STRAIN-GAUGE-BASED TRANSDUCERS


CE

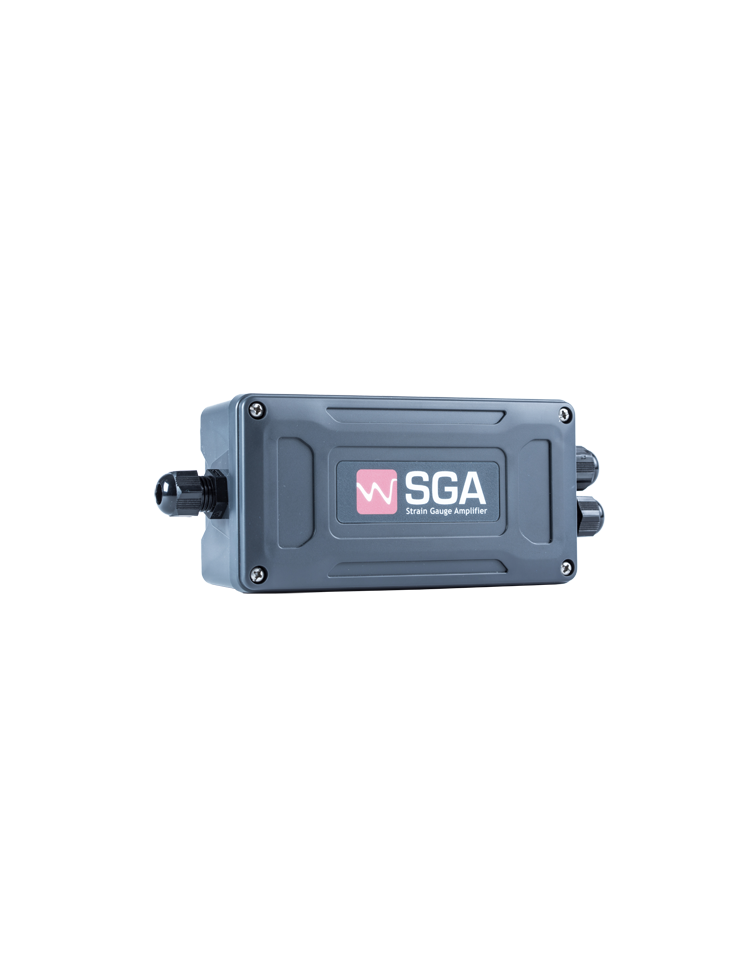

The COND-SGA conditioners - amplifiers provide standardised signals in current and voltage from every load cell, force transducer and torque sensor based on strain-gauge technology.

o Input: Wheatstone bridge 0.1 to 30 mV/V
o Output: 4(0)...20 mA, -10...0...+10 V
o Power supply:
         - COND-SGA-A: 115...230 VAC / 18...24 VDC
         - COND-SGA-D: 18...24 VDC
o Low-cost
o Enclosure: ABS case 164 x 84 x 57 mm

"Technical drawings available on datasheet"

Add to basket
for quotation

COND-SGA-ACOND-SGA-D
Type (-) Strain-gauge conditioner (mV/V) Strain-gauge conditioner (mV/V)
Input range (-)
0.1...30 mV/V 0.1...30 mV/V
Sensor excitation (-) 5 / 10 VDC (Zmin. 5 / 10 VDC (Zmin.
Non-linearity error (% F.S.*) < 0.03 < 0.03
Low pass filter (Hz) 1...5000 1...5000
Bandwidth (Hz)
DC...6000 DC...6000
Service temperature range (°C)
-10...+50 -10...+50
Storage temperature range (°C)
-20...+70 -20...+70
Temperature coefficient of the sensitivity (% F.S.*/10°C) <± 0.07 <± 0.07
Temperature coefficient of zero signal (% F.S.*/10°C) <± 0.02 <± 0.02
Power supply (-)
110...230 VAC / 18...24 VDC 18...24 VDC
Output tension (V) 0...10 / -10...0...+10 (load R. >= 5 kohms) 0...10 / -10...0...+10 (load R. >= 5 kohms)
Output current (mA) 0...20 / 4...20 (load R.<= 500 ohms) 0...20 / 4...20 (load R.<= 500 ohms)
IP rating (-) IP67 IP67

*F.S. : Full Scale.
** : Power supply 9...36 VDC available on request.
Specifications subject to change without notice.
