CRANE OVERLOAD PROTECTION ELECTRONICS


OVERLOAD

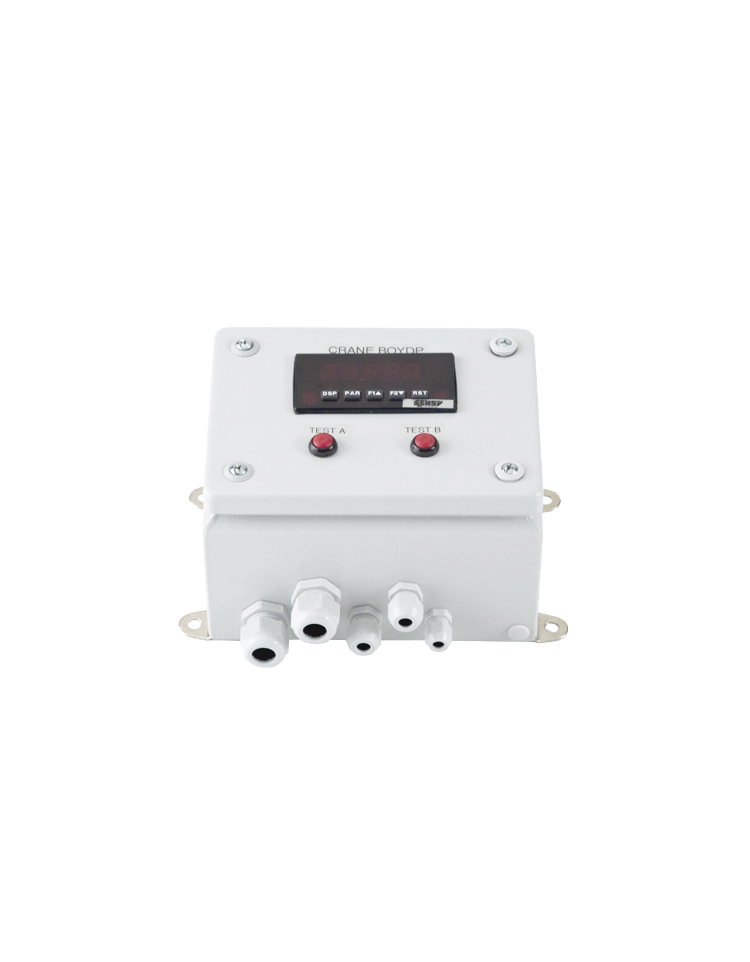

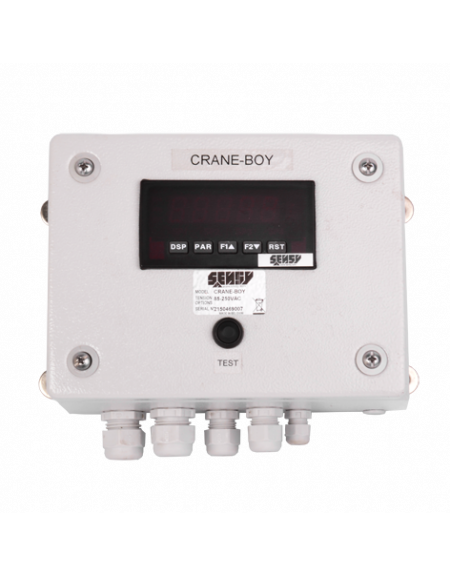

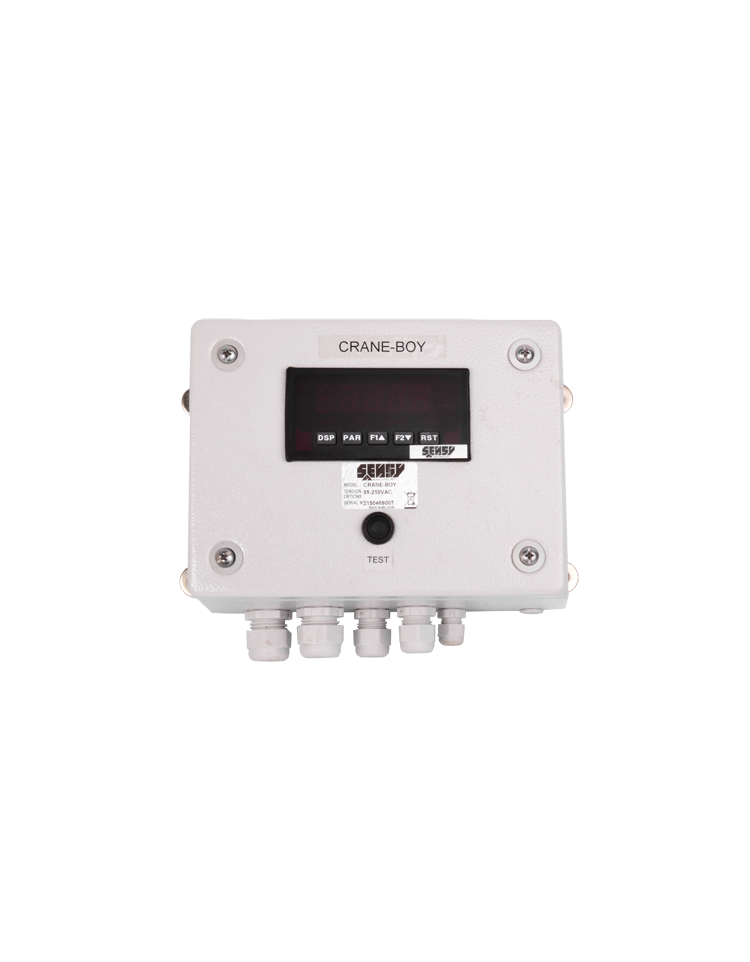

Crane overload protection electronics with 3 set-points and display

o Easy and intuitive calibration
o Display of hoisted load and input signal
o Internal monitoring system of load cell integrity and load limitation electronics (fail safe)
o Test button on front cover
o Also available without industrial metallic housing
  (see INDI-BOY, DISP-BOYP and DISP-SUMD)

"Technical drawings available on datasheet"


AVAILABLE OPTIONS

- Analogue output 4 (0)...20 mA or 0...10 V
- RS-232, RS-485 or fieldbus capabilities
- NEMA 4X / IP65 (transparent protection cover + Option "COVER PAX")
- Power supply: 48 VAC (only for 85...230 VAC version)
- Stainless steel housing
Add to basket
for quotation

CRANE-BOYCRANE-BOY24CRANE-BOYPCRANE-BOYP24
Type (-) Load limiter for single load cell Load limiter for single load cell Load limiter for single 4-20 mA load cell Load limiter for single 4-20 mA load cell
Input range (-)
± 24 mVDC / ± 240 mVDC ± 24 mVDC / ± 240 mVDC 20 mA (-2 to +26 mA) 20 mA (-2 to +26 mA)
Sensor excitation (-) 10 VDC @ 125 mA max 10 VDC @ 125 mA max 24 VDC ± 5 % @ 50 mA max. 24 VDC ± 5 % @ 50 mA max.
Display (-) 5 digits (14.2 mm) 5 digits (14.2 mm) 5 digits (14.2 mm) 5 digits (14.2 mm)
Accuracy (% F.S.*)
0.1 0.1 0.1 0.1
A/D converter (-)
16 bits 16 bits 16 bits 16 bits
Converter rate (-) Up to 20 readings /s Up to 20 readings /s Up to 20 readings /s Up to 20 readings /s
Service temperature range (°C)
0...+50 0...+50 0...+50 0...+50
Storage temperature range (°C)
-40...+60 -40...+60 -40...+60 -40...+60
Power supply (-)
85...250 VAC, 50/60 Hz (15 VA) 11...36 VDC (11 W), 24 VAC (15 VA) 85...250 VAC, 50/60 Hz (15 VA) 11...36 VDC (11 W), 24 VAC (15 VA)
Qty of relay (-) 3 3 3 3
Relay type (-) Form A - potential free Form A - potential free Form A - potential free Form A - potential free
Contact rating (-) 3 A @ 250 VAC / 30 VDC 3 A @ 250 VAC / 30 VDC 3 A @ 250 VAC / 30 VDC 3 A @ 250 VAC / 30 VDC
IP rating (-) IP54 IP54 IP54 IP54

*F.S. : Full Scale.
** : 5 VDC @ 65 mA max (jumper selectable).
Specifications subject to change without notice.
