HIGH-CAPACITY COMPRESSION STANDARD REFERENCE FORCE TRANSDUCERS


CE ISO 376

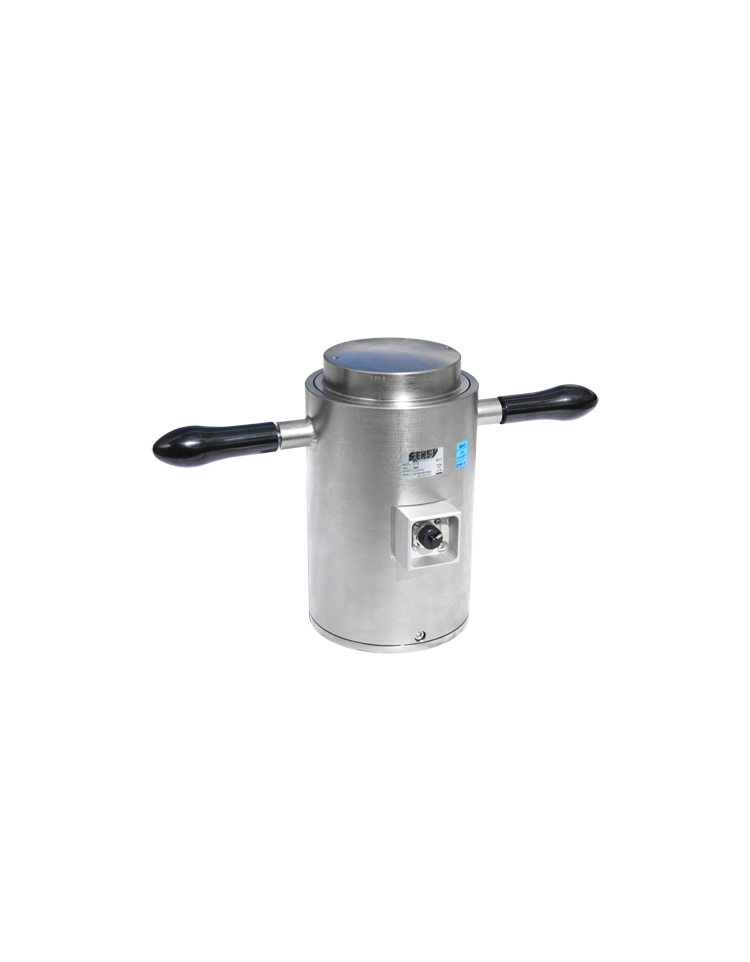

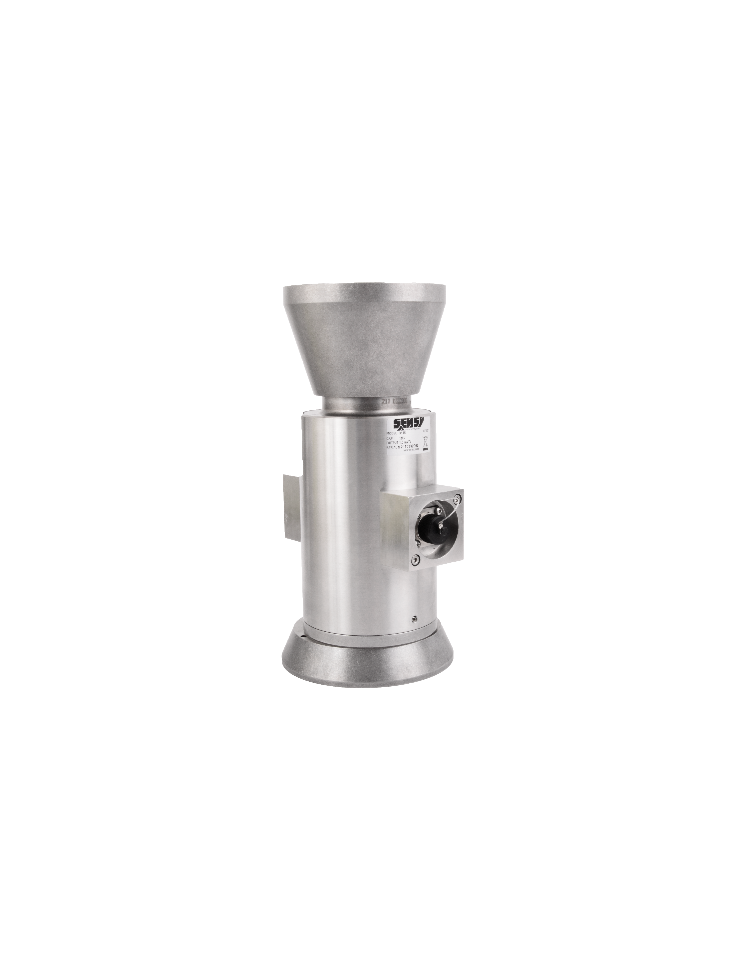

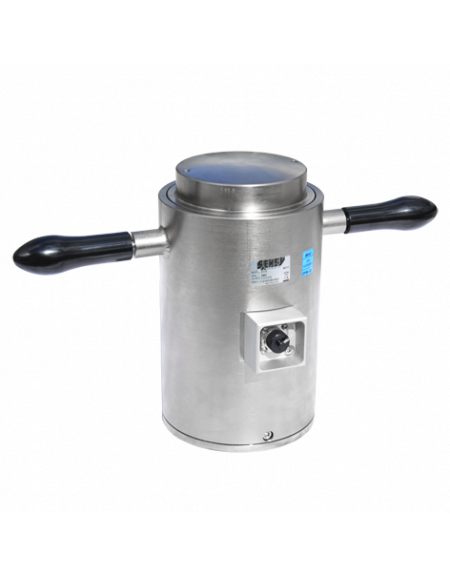

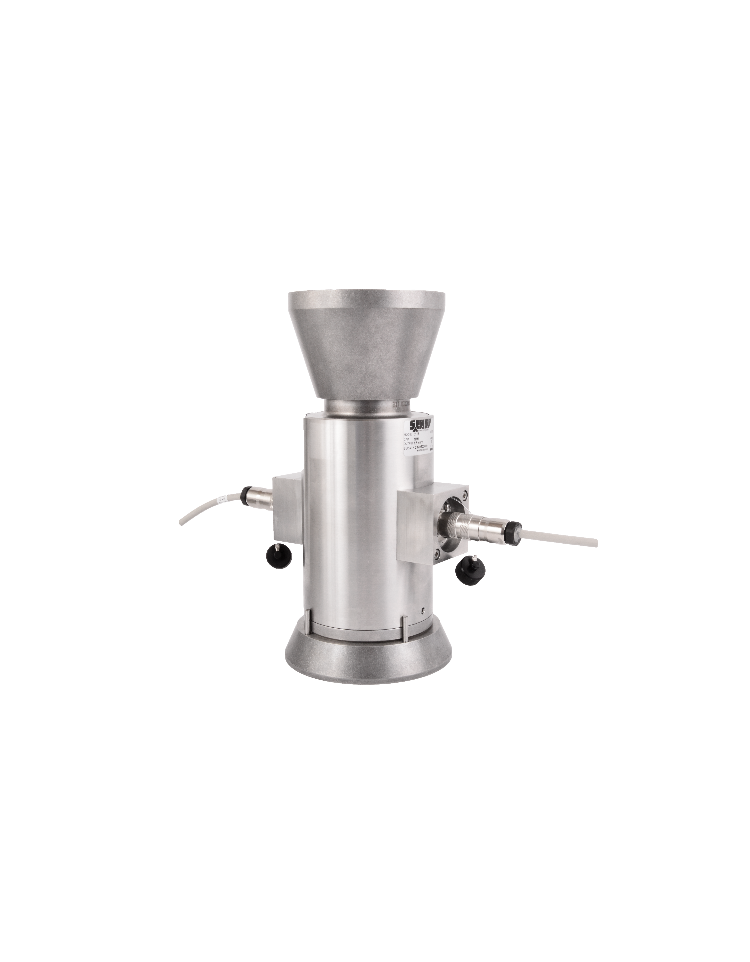

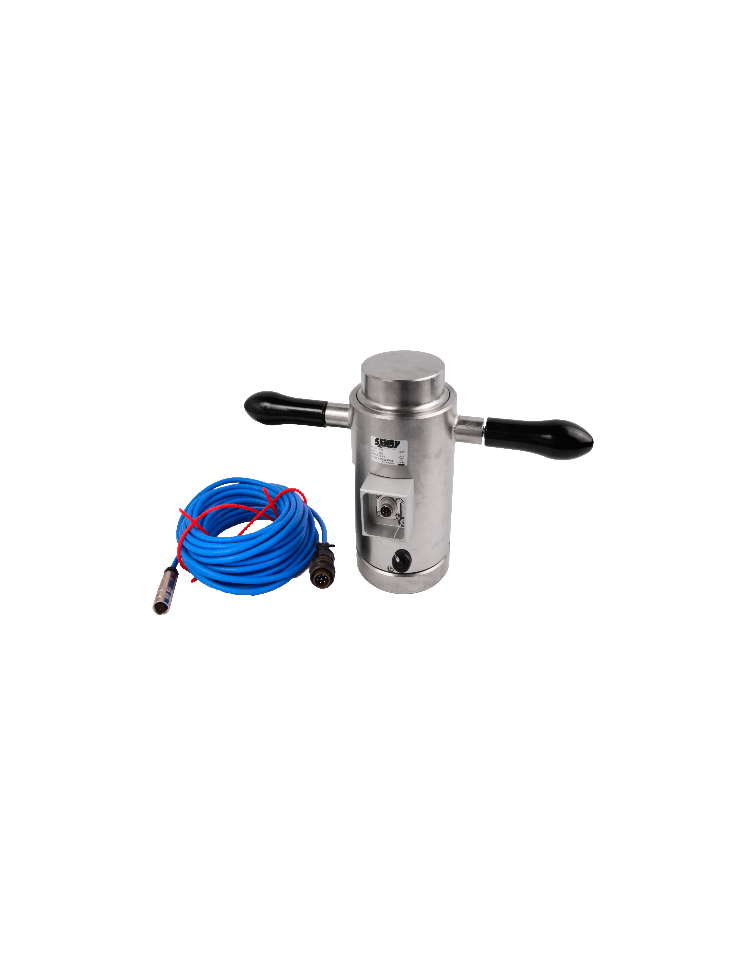

Standard reference force transducers specially designed according to ISO 376 standard (classes 1, 0,5 and 00).

o Wide range of capacities (up to 50 MN)
o Complete range of load accessories
o Protection class: IP65
o Material: alloy steel (stainless steel available on request)
o Cable length: see drawing table - CL (other lengths available on request)


AVAILABLE OPTIONS

DIGITAL-OUTPUT
USB
ASTM-E74
SOFTWARE
ISO376
Do you have
specific need ?
Add to basket
for quotation

10500
Relative reversibility error (% M.V.**) <± 0.3 <± 0.15 <± 0.07
Relative repeatability error with rotation (% M.V.**) <± 0.2 <± 0.1 <± 0.05
Relative repeatability error without rotation (% M.V.**) <± 0.1 <± 0.05 <± 0.025
Stabilization time after power excitation supply (s) 200...600 200...600 200...600
Creep error over 30 min. (% F.S.*) <± 0.1 <± 0.05 <± 0.025
Zero shift after loading (% F.S.*)
<± 0.05 <± 0.025 <± 0.012
Reference temperature (°C) 20 20 20
Compensated temperature range (°C) -10...+45 -10...+45 -10...+45
Service temperature range (°C)
-30...+70 -30...+70 -30...+70
Storage temperature range (°C)
-50...+85 -50...+85 -50...+85
Temperature coefficient of the sensitivity (% F.S.*/10°C) <± 0.035 <± 0.035 <± 0.015
Temperature coefficient of zero signal (% F.S.*/10°C) <± 0.03 <± 0.03 <± 0.023
Zero balance (mV/V)
± 0.02 ± 0.02 ± 0.02
Nominal sensitivity (mV/V) 1.5 1.5 1.5
Input resistance (ohm(s)) 350...700 ± 2 350...700 ± 2 350...700 ± 2
Output resistance (ohm(s)) 350...700 ± 2 350...700 ± 2 350...700 ± 2
Insulation resistance (50 V) (Mohm(s)) > 5000 > 5000 > 5000
Reference excitation voltage (VDC)
10 10 10
Permissible nominal range of excitation voltage (VDC) 3...12 3...12 3...12
Safe load limit (% F.S.*) 110 110 110
Breaking load (% F.S.*)
>300 >300 >300

* : Full Scale of the force transducer.
** : M.V. is the measured value. The mentioned values are only valid if M.V. >= 10 % of full scale.
Specifications subject to change without notice.
