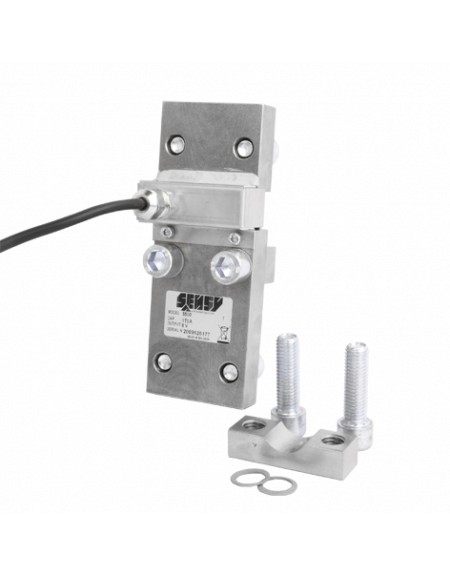

WIRE ROPE LOAD CELLS
Low cost load cells specially designed to measure the tension force on hoisting ropes.
o CE certified for hoisting applications
o Easy installation directly without dismantling on the hoisting rope
o Wide range of measured loads on cable (from 0.25 up to 24 t) and suitable cables (available diameters: from 6 up to 46 mm)
o Material: - 5500: stainless steel
- 5505: nickel-plated steel
o Protection class: IP65
o Sturdy design
o Reliable and economical solution
o Complete range of "CE" certified electronics and load limiters available
o Cable length: see drawing table - CL (other lengths available on request)
AVAILABLE OPTIONS
| 2 - 5 % | |
|---|---|
| Reference temperature (°C) | 23 |
| Compensated temperature range (°C) | -10...+45 |
| Service temperature range (°C) | -30...+70 |
| Storage temperature range (°C) | -50...+85 |
| Temperature coefficient of the sensitivity (% F.S.*/10°C) | <± 0.1 |
| Temperature coefficient of zero signal (% F.S.*/10°C) | <± 0.1 |
| Nominal sensitivity (mV/V) | ± 1 |
| Input resistance (ohm(s)) | 350 ± 2 |
| Output resistance (ohm(s)) | 350 ± 2 |
| Insulation resistance (50 V) (Mohm(s)) | > 5000 |
| Reference excitation voltage (VDC) | 10 |
| Permissible nominal range of excitation voltage (VDC) | 3...12 |
| Safe load limit (% F.S.*) | 200 |
| Breaking load (% F.S.*) | >300 |
| Permissible dynamic loading (% F.S.*) | 70 |
* F.S. : Full Scale.
** : can be different (according to the wire rope)
Combined error depends on rope material and on-site calibration
Specifications subject to change without notice
