HIGH-RANGE REACTION TORQUE METERS

ADD
TO COMPARE PDF
DATASHEET
CE ATEX

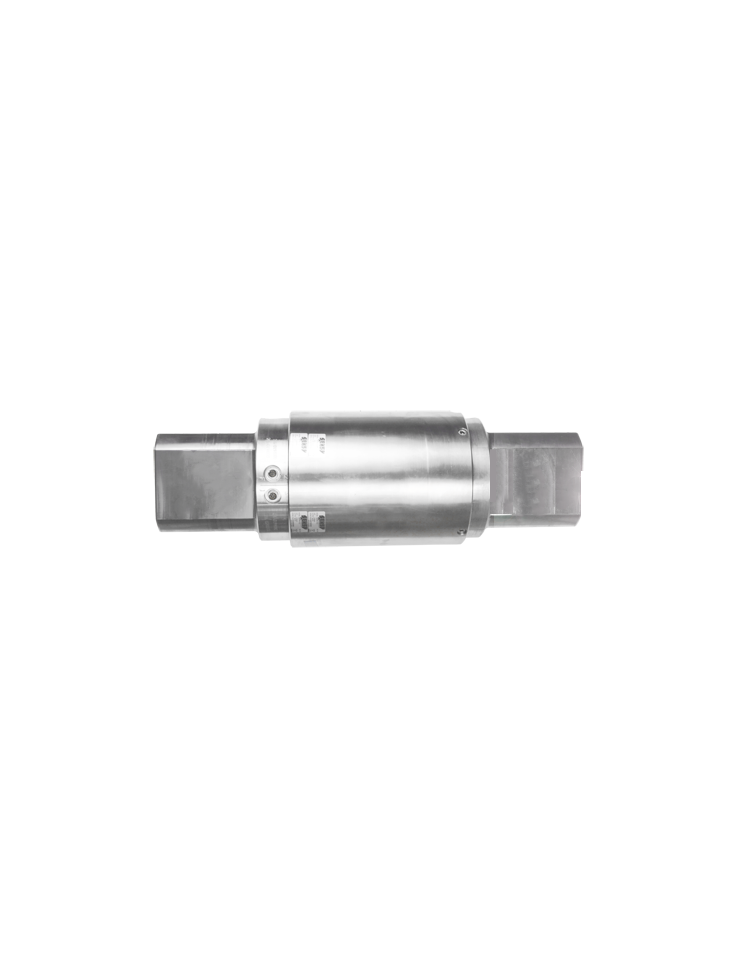

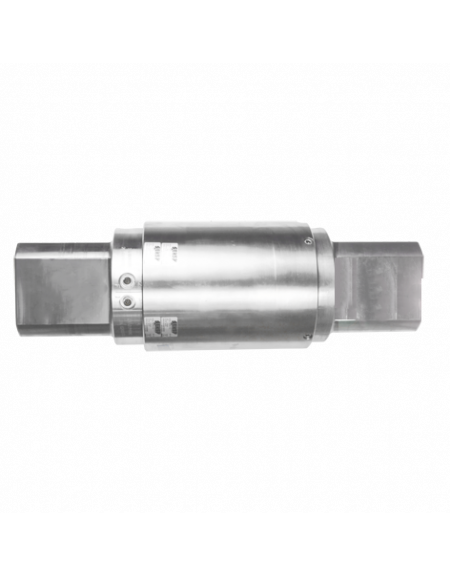

High-range reaction torque transducers with square ends.

 o Wide range of capacities: from 20 kN·m to 1.1 MN·m
 o Protection class: IP67
 o Material:
     - 6300V: stainless steel
     - 6305V: alloy steel
 o Cable length: 3 m (other lengths available on request)

AVAILABLE OPTIONS

DUAL-BRIDGE
AMPLIFIED-OUTPUT
DIGITAL-OUTPUT
MULTIPLE-MOMENTS
-50+180
Do you have
specific need ?
Add to basket
for quotation

0.5 %
Combined error (non-linearity + hysteresis) (% F.S.*) < ± 0.5
Repeatability error (% F.S.*) < ± 0.25
Creep error over 30 min. (% F.S.*) < ± 0.2
Reference temperature (°C) 23
Compensated temperature range (°C) -10...+45
Service temperature range (°C)
 -25...+70
Storage temperature range (°C)
 -50...+85
Temperature coefficient of the sensitivity (% F.S.*/10°C) < ± 0.1
Temperature coefficient of zero signal (% F.S.*/10°C) < ± 0.1
Zero balance (mV/V)
 ± 0.02
Nominal sensitivity (mV/V) 1.5
Sensitivity tolerance (%) < ± 0.5
Input resistance (ohm(s)) 350±2 or 700±2
Output resistance (ohm(s)) 350±2 or 700±2
Insulation resistance (50 V) (Mohm(s)) > 5000
Reference excitation voltage (VDC)
 10
Permissible nominal range of excitation voltage (VDC) 3...12
Safe load limit (% F.S.*) 150
Breaking load (% F.S.*)
 > 300
Permissible dynamic loading (% F.S.*)
 40

* F.S. : Full Scale.
Specifications subject to change without notice.
