NON-CONTACT ROTARY TORQUE SENSORS

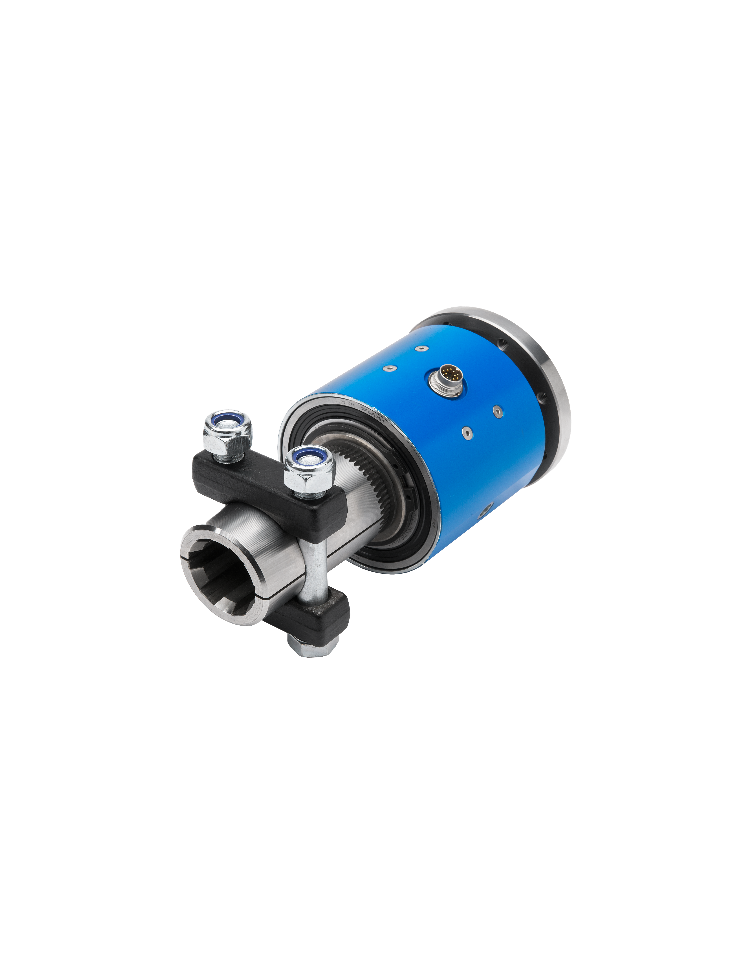

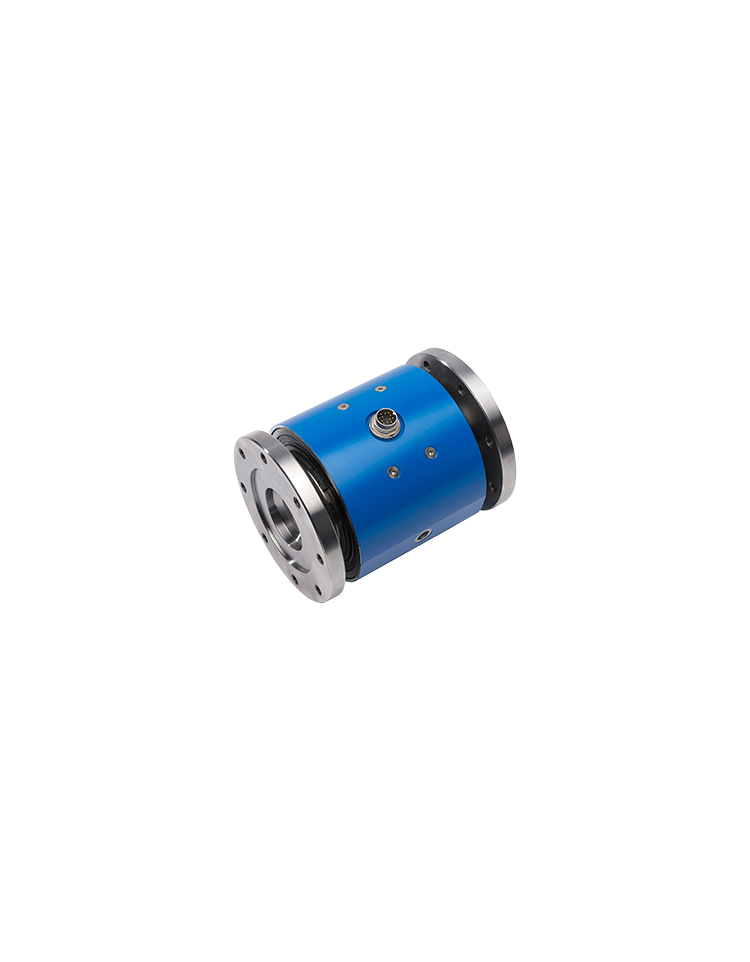

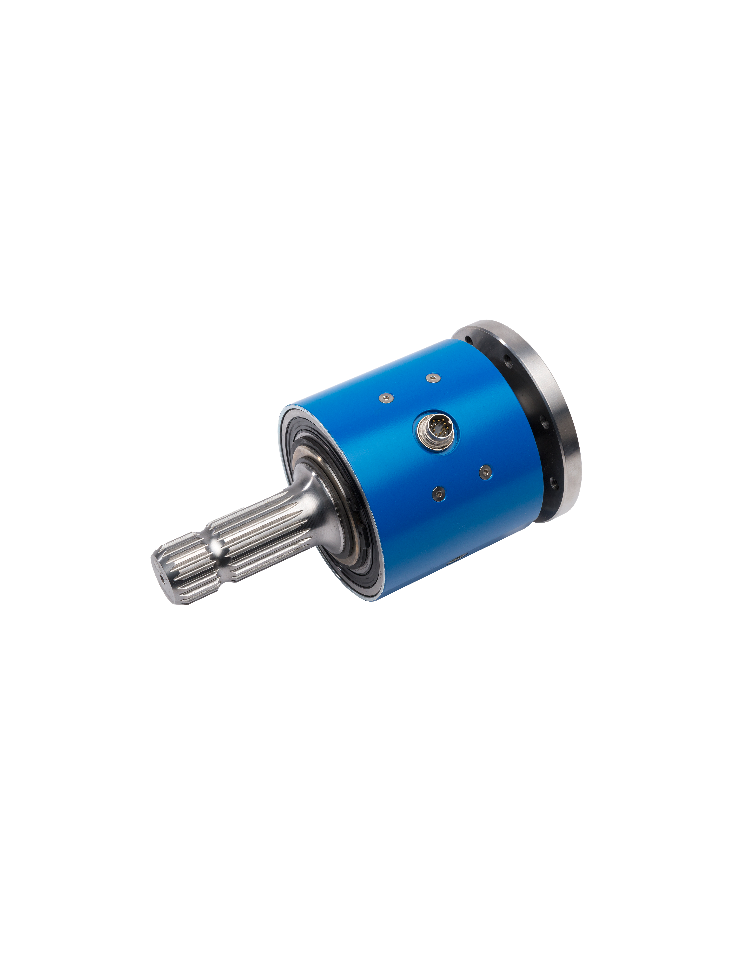

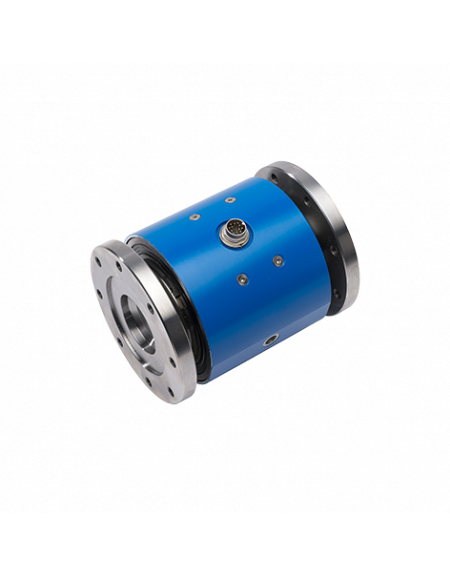

General purpose, non-contact rotary torque sensors with flanges or PTO shaft.
o Bidirectional
o Measurement range up to 5 kN·m
o Rotating speed up to 3600 rpm
o Integrated signal conditioning
o Analogue output signal (see Wiring table)
o Cable length: 5 m (other lengths available on request)
o Torque limit 5000 N·m
AVAILABLE OPTIONS
| 67000 | |
|---|---|
| Combined error (non-linearity + hysteresis) (% F.S.*) | <± 0.5 |
| Repeatability error (% F.S.*) | <± 0.05 |
| Rotational signal uniformity (% F.S.*) | <± 0.5 |
| Compensated temperature range (°C) | +15...+35 |
| Service temperature range (°C) | -40...+85 |
| Storage temperature range (°C) | -40...+85 |
| Temperature coefficient of the sensitivity (% F.S.*/10°C) | < 0.5 |
| Temperature coefficient of zero signal (% F.S.*/10°C) | < 0.5 |
| Zero signal (V) | 5 |
| Power supply (-) | 9...28 VDC |
| Consumption (max.) (mA) | 100 |
| Nominal sensitivity (V) | ± 4 |
| Start-up current (mA) | < 150 |
| IP rating (-) | IP50 |
* F.S. : Full Scale.
** : see individual calibration sheet
Specification subject to change without notice
