REACTION TORQUE METERS

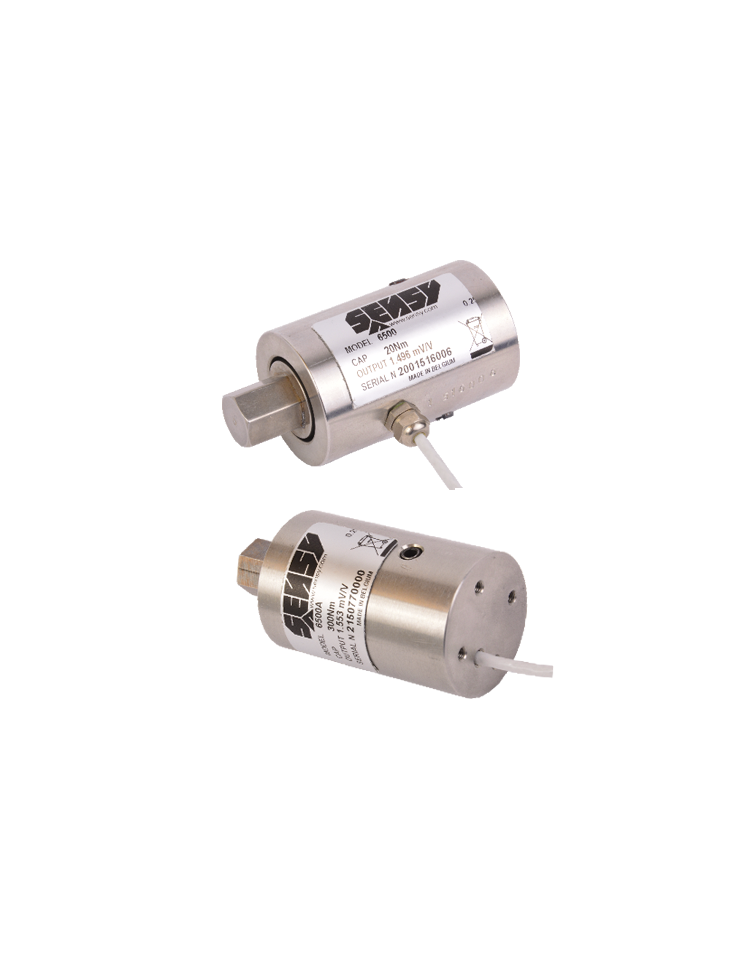

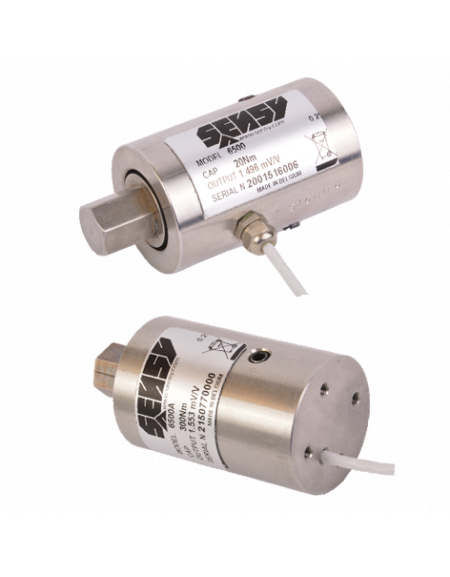

Non-rotating torque meters with hexagonal head.
o 6500-6502: cable output with radial cable gland
o 6500A-6502A: cable output with axial cable gland
o Compact design, easy to install
o 6500(A)-6502(A): mechanical fastening with threaded holes (see drawing)
o Protection class: IP54
o Material: - stainless steel (6500 / 6500A)
- anodised aluminium alloy (6502 / 6502A)
o Cable length: see drawing table - CL (other lengths available on request)
AVAILABLE OPTIONS
| 0.25 % | |
|---|---|
| Combined error (non-linearity + hysteresis) (% F.S.*) | <± 0.25 |
| Repeatability error (% F.S.*) | <± 0.1 |
| Creep error over 30 min. (% F.S.*) | <± 0.1 |
| Reference temperature (°C) | 23 |
| Compensated temperature range (°C) | -10...+45 |
| Service temperature range (°C) | -30...+70 |
| Storage temperature range (°C) | -50...+85 |
| Temperature coefficient of the sensitivity (% F.S.*/10°C) | <± 0.05 |
| Temperature coefficient of zero signal (% F.S.*/10°C) | <± 0.035 |
| Zero balance (mV/V) | ± 0.02 |
| Nominal sensitivity (mV/V) | 1.5 |
| Sensitivity tolerance (%) | <± 0.3 |
| Input resistance (ohm(s)) | 350 ± 2 |
| Output resistance (ohm(s)) | 350 ± 2 |
| Insulation resistance (50 V) (Mohm(s)) | > 5000 |
| Reference excitation voltage (VDC) | 10 |
| Permissible nominal range of excitation voltage (VDC) | 3...12 |
| Safe load limit (% F.S.*) | 120 |
| Breaking load (% F.S.*) | >300 |
| Permissible dynamic loading (% F.S.*) | 40 |
| Static lateral force limit (% F.S.*) | 10 |
* F.S. : Full Scale.
Specifications subject to change without notice.
