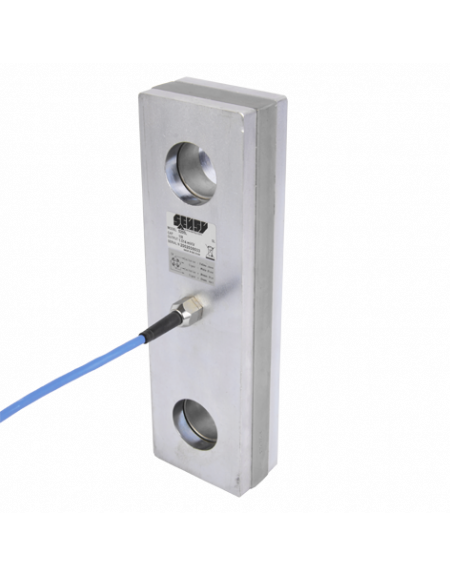

TENSION LINK LOAD CELLS
Tension link load cells specially designed for load limitation on hoisting devices.
o Sturdy design
o Breaking load > 500 %
o CE certified for hoisting devices
o Protection class: IP66
o Material: stainless steel (5200L), nickel-plated steel (5205L)
o Easy to install (standard shackles)
o Cable length: 0.5...5 t: 3 m (other lengths available on request)
10 t: 6 m (other lengths available on request)
o Complete range of CE certified electronics and load limiters available
AVAILABLE OPTIONS
| SL - HOIST | SL - LIFT | |
|---|---|---|
| Combined error (non-linearity + hysteresis) (% F.S.*) | < ± 1 | < ± 1 |
| Creep error over 30 min. (% F.S.*) | <± 0.3 | <± 0.2 |
| Zero shift after loading (% F.S.*) | <± 0.5 | <± 0.5 |
| Reference temperature (°C) | 23 | 23 |
| Compensated temperature range (°C) | -10...+45 | -10...+45 |
| Service temperature range (°C) | -25...+70 | -25...+70 |
| Storage temperature range (°C) | -50...+85 | -50...+85 |
| Temperature coefficient of the sensitivity (% F.S.*/10°C) | <± 0.2 | <± 0.2 |
| Temperature coefficient of zero signal (% F.S.*/10°C) | <± 0.2 | <± 0.2 |
| Zero balance (mV/V) | ± 0.02 | ± 0.02 |
| Nominal sensitivity (mV/V) | ± 1 | ± 0.5 |
| Input resistance (ohm(s)) | 350 ± 2 | 350 ± 2 |
| Output resistance (ohm(s)) | 350 ± 2 | 350 ± 2 |
| Insulation resistance (50 V) (Mohm(s)) | > 5000 | > 5000 |
| Reference excitation voltage (VDC) | 10 | 10 |
| Permissible nominal range of excitation voltage (VDC) | 3...12 | 3...12 |
| Safe load limit (% F.S.*) | 200 | 300 |
| Breaking load (% F.S.*) | > 500 | > 1000 |
| Permissible dynamic loading (% F.S.*) | 75 | 100 |
* F.S. : Full Scale.
Specifications subject to change without notice.
