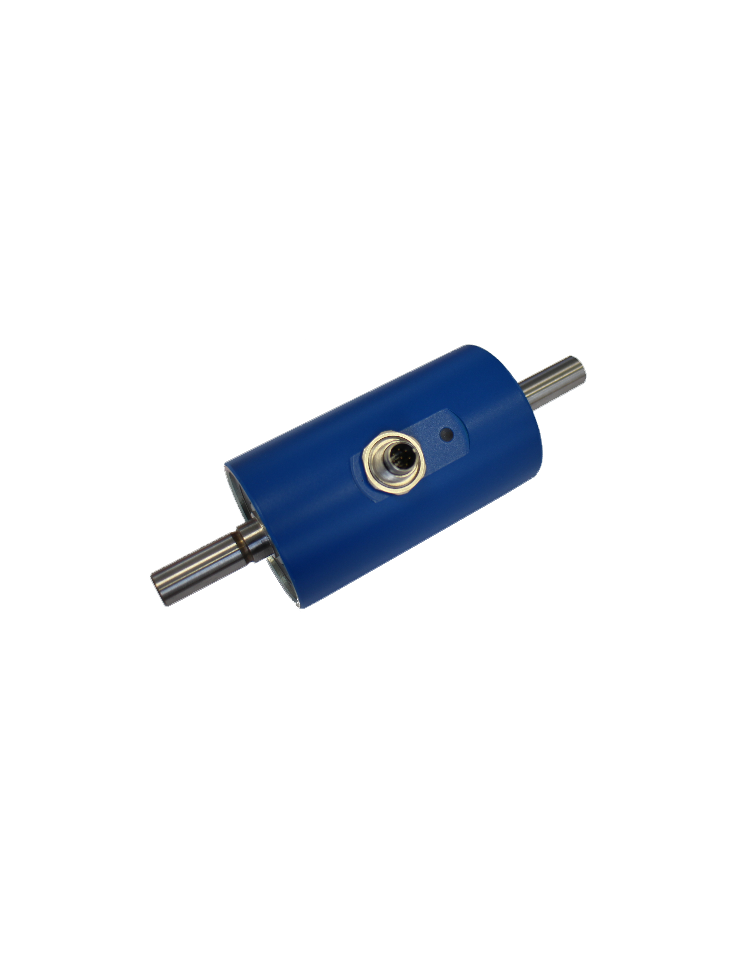

NON-CONTACT ROTARY TORQUE SENSORS
General purpose, high rotating speed, non-contact rotary torque sensors with square or round shaft.
o Bidirectional
o Maintenance free
o Round or square shafts (see drawing)
o Measurement range up to 100 N·m
o Max. rotating speed:
- Square shaft: 5 000 rpm
- Round shaft: 10 000 rpm
o Integrated signal conditioning
o Analogue output signal (see Wiring table)
o Cable length: 5 m (other lengths available on request)
AVAILABLE OPTIONS
| 62300 | |
|---|---|
| Combined error (non-linearity + hysteresis) (% F.S.*) | <± 0.5 |
| Repeatability error (% F.S.*) | <± 0.05 |
| Rotational signal uniformity (% F.S.*) | <± 0.5 |
| Compensated temperature range (°C) | +15...+35 |
| Service temperature range (°C) | -30 ... +85 |
| Storage temperature range (°C) | -30 ... +85 |
| Temperature coefficient of the sensitivity (% F.S.*/10°C) | < 0.1 |
| Temperature coefficient of zero signal (% F.S.*/10°C) | < 0.1 |
| Zero signal (V) | 5 |
| Safe load limit (% F.S.*) | 130 |
| Power supply (-) | 5...28 VDC |
| Consumption (max.) (mA) | 37...45 |
| Nominal sensitivity (V) | ± 4 |
| Start-up current (mA) | < 100 |
| IP rating (-) | IP50 |
*F.S.: Full Scale.
** : See individual calibration sheet
Specification subject to change without notice
