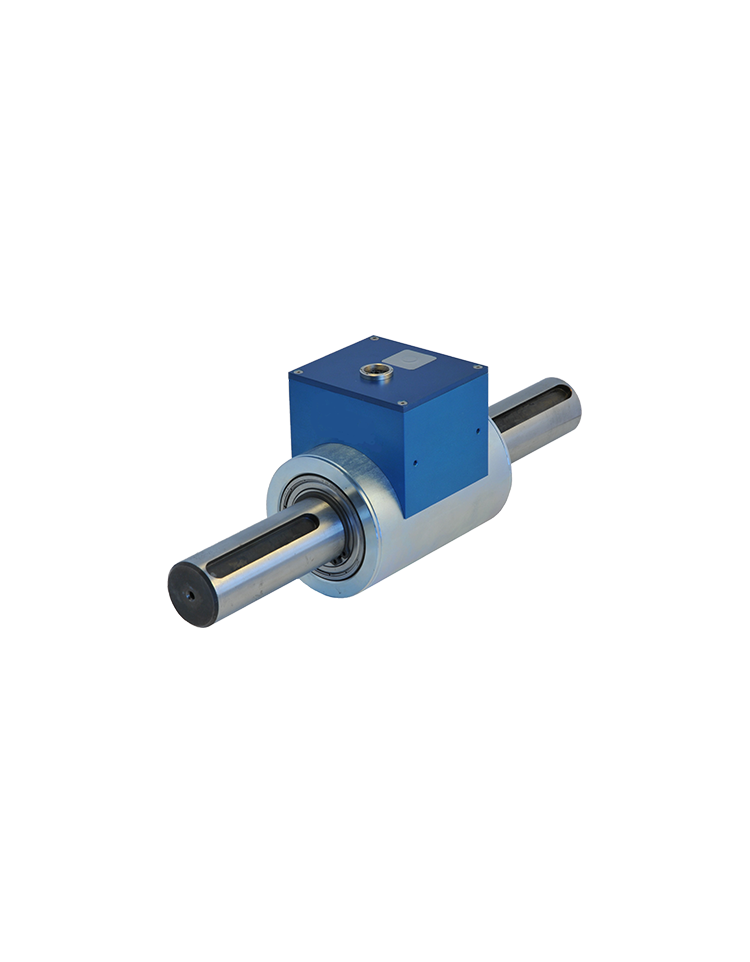

NON-CONTACT ROTARY TORQUE SENSORS
General purpose, high-accuracy non-contact rotary torque sensors.
o Bidirectional
o Measurement range up to 2000 N·m
o Combined error (non-linearity + hysteresis):
- 63000: ± 0.2% F.S.*
- 64000: ± 0.1% F.S.*
o Rotational signal uniformity:
- 63000: ± 0.2% F.S.*
- 64000: ± 0.1% F.S.*
o Integrated signal conditioning
o Analogue output signal (see Wiring table)
o Cable length: 5 m (other lengths available on request)
AVAILABLE OPTIONS
| 63 / 64000-A | 63 / 64000-B | 63 / 64000-C | |
|---|---|---|---|
| Capacities (-) | 50 - 100 N·m | 250 - 500 N·m | 1000 - 2000 N·m |
| Repeatability error (% F.S.*) | <± 0.05 | <± 0.05 | <± 0.05 |
| Compensated temperature range (°C) | +15...+35 | +15...+35 | +15...+35 |
| Service temperature range (°C) | -40...+85 | -40...+85 | -40...+85 |
| Storage temperature range (°C) | -40...+85 | -40...+85 | -40...+85 |
| Temperature coefficient of the sensitivity (% F.S.*/10°C) | < 0.5 | < 0.5 | < 0.5 |
| Temperature coefficient of zero signal (% F.S.*/10°C) | < 0.2 | < 0.2 | < 0.2 |
| Zero signal (V) | 5 | 5 | 5 |
| Safe load limit (% F.S.*) | 130 | 130 | 130 |
| Power supply (-) | 11...28 VDC | 11...28 VDC | 11...28 VDC |
| Breaking load (% F.S.*) | 300 | 300 | 300 |
| Consumption (max.) (mA) | 150 | 150 | 150 |
| Nominal sensitivity (V) | ± 4 | ± 4 | ± 4 |
| Start-up current (mA) | < 200 | < 200 | < 200 |
| Maximum rotational speed (rpm) | 10000 | 8000 | 5000 |
| IP rating (-) | IP50 | IP50 | IP50 |
*F.S. : Full Scale.
** : See individual calibration sheet.
*** : 2000 N·m only for model 63000.
Specification subject to change without notice
