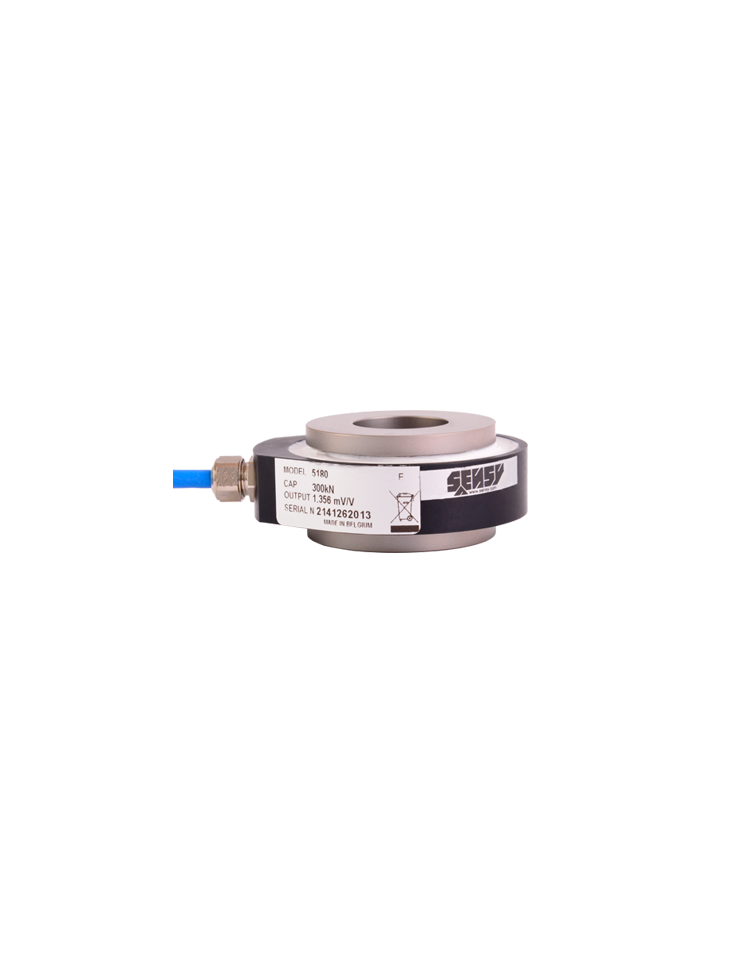

COMPRESSION WASHER LOAD CELLS
Compression washer annular load cells specially designed for force measurement on bolts.
o Very low profile for high-capacity load cells
o Material:
- stainless steel body; aluminium housing (5180)
- anodised aluminium alloy (5182)
- 2 washers (included): stainless steel
o Protection class: IP65
o Very competitive prices
o Cable length: see drawing table - CL (other lengths available on request)
AVAILABLE OPTIONS
| SL | |
|---|---|
| Reference temperature (°C) | 23 |
| Compensated temperature range (°C) | -10...+45 |
| Service temperature range (°C) | -30...+70 |
| Storage temperature range (°C) | -50...+85 |
| Temperature coefficient of the sensitivity (% F.S.*/10°C) | <± 0.2 |
| Temperature coefficient of zero signal (% F.S.*/10°C) | <± 0.2 |
| Zero balance (mV/V) | ± 0.02 |
| Input resistance (ohm(s)) | 700 ± 2 |
| Output resistance (ohm(s)) | 700 ± 2 |
| Insulation resistance (50 V) (Mohm(s)) | > 5000 |
| Reference excitation voltage (VDC) | 5 |
| Permissible nominal range of excitation voltage (VDC) | 3..10 |
| Safe load limit (% F.S.*) | 150 |
| Breaking load (% F.S.*) | > 300 |
| Permissible dynamic loading (% F.S.*) | 50 |
| Static lateral force limit (% F.S.*) | 25 |
* F.S. : Full Scale.
Specifications subject to change without notice.
