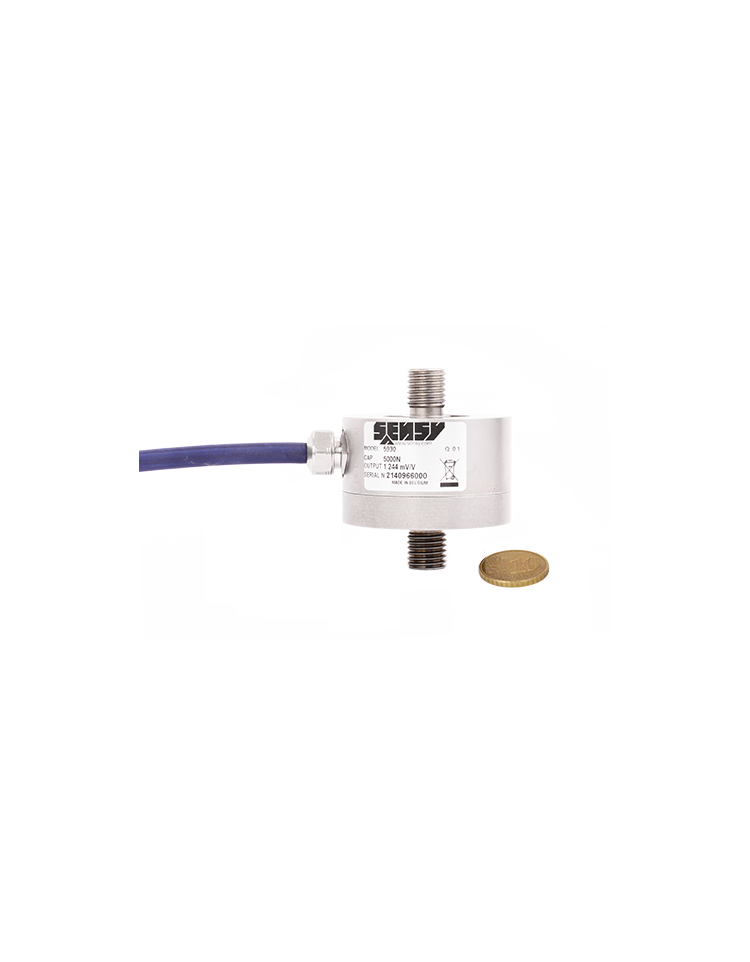

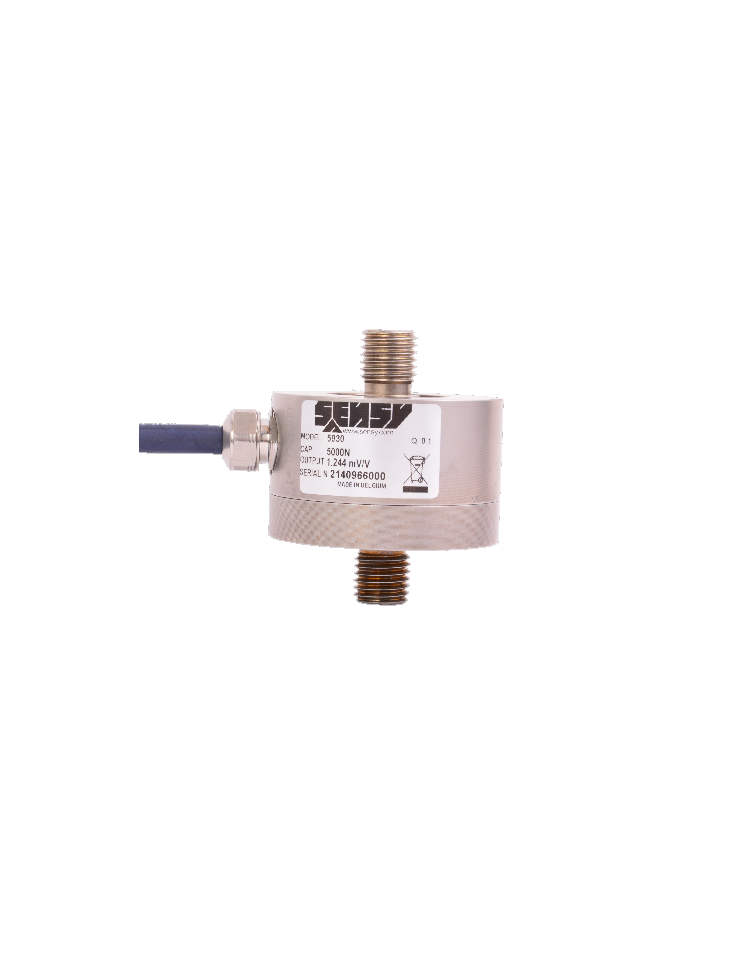

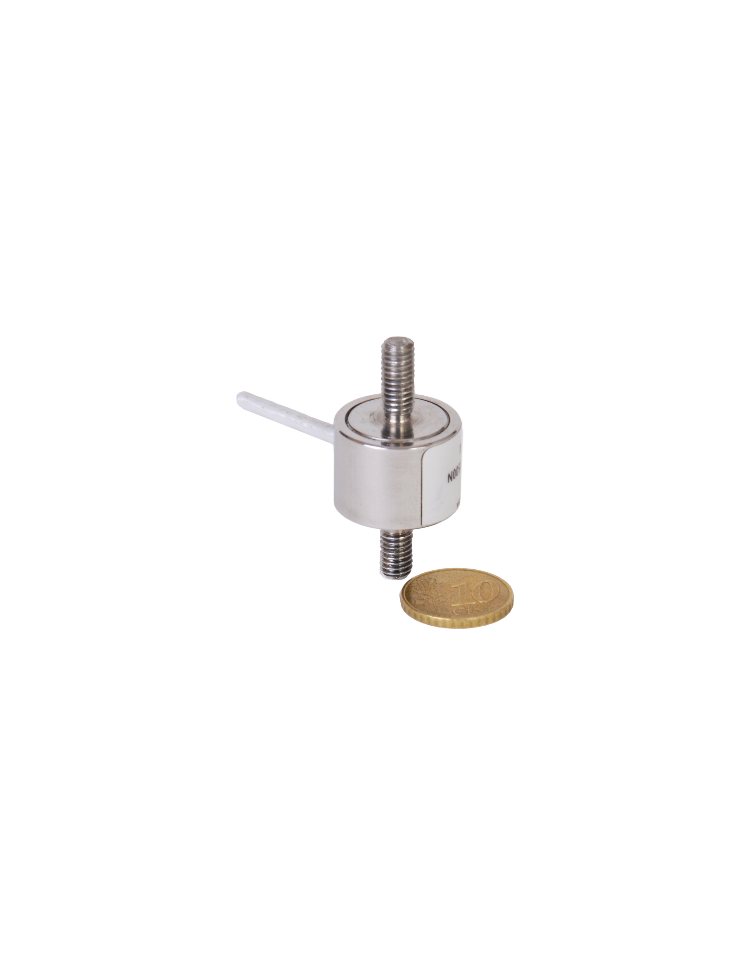

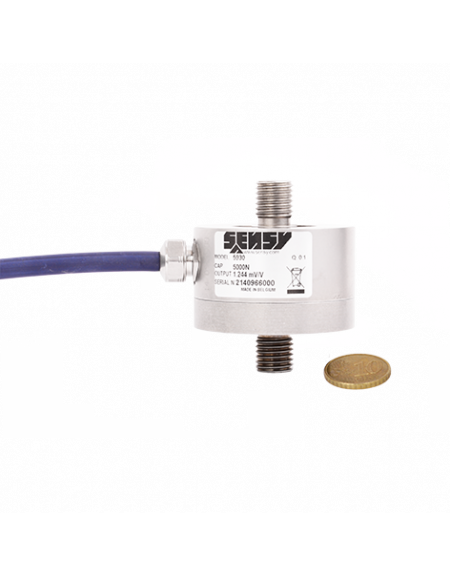

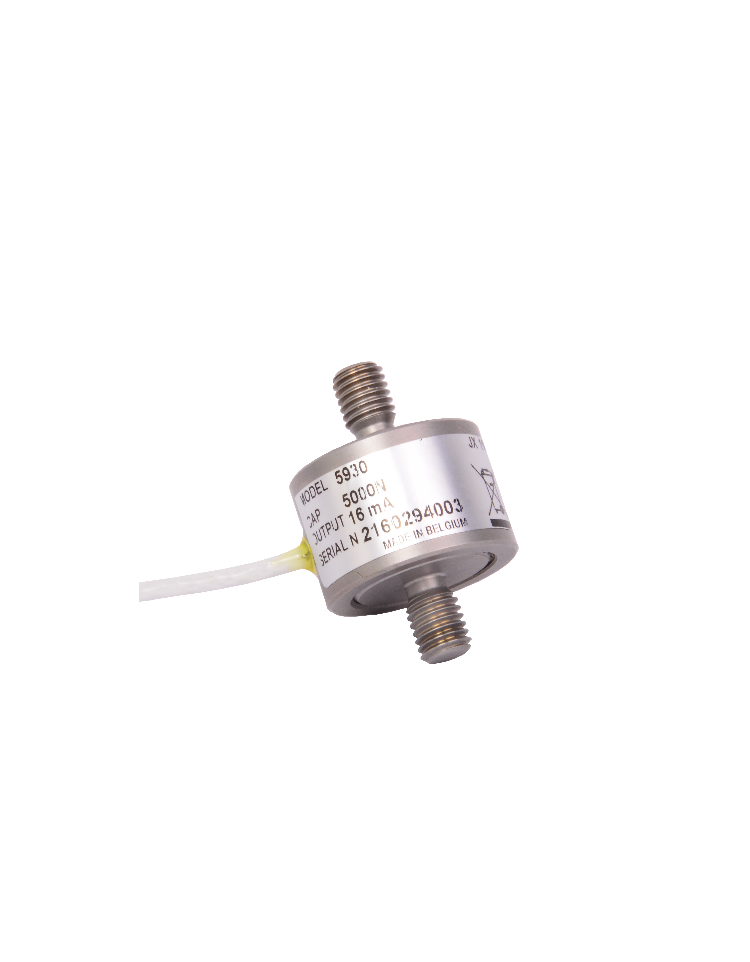

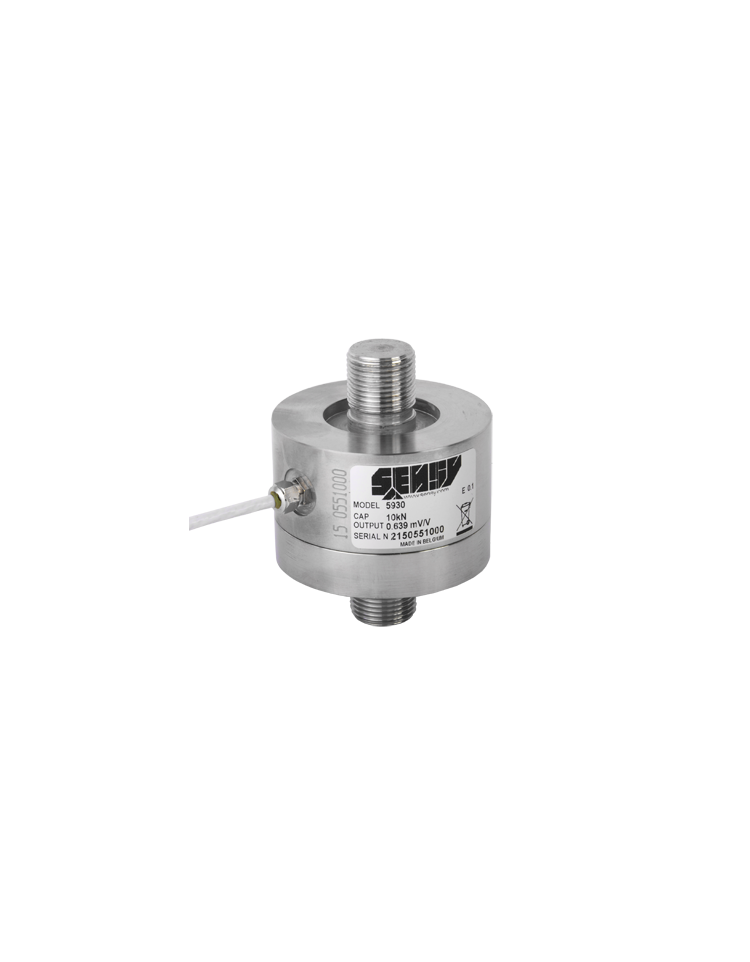

MINIATURE TENSION AND COMPRESSION LOAD CELLS


CE ATEX

Sealed and compact tension and compression sensors.

o Protection class: IP65
o Very competitive prices
o Tension and / or compression (universal)
o Load accessories available
o Material:
   - stainless steel (5930)
   - anodised aluminium alloy (5932)
o Cable length: 1.5 m (other lengths available on request)

Technical drawings available on datasheet

AVAILABLE OPTIONS

AMPLIFIED-OUTPUT
DIGITAL-OUTPUT
USB
-50+130
EXi
IP67
IP68
Do you have
specific need ?
Add to basket
for quotation

1 %
Combined error (non-linearity + hysteresis) (% F.S.*) <± 1
Repeatability error (% F.S.*) <± 0.5
Creep error over 30 min. (% F.S.*) <± 0.25
Zero shift after loading (% F.S.*)
<± 0.2
Reference temperature (°C) 23
Compensated temperature range (°C) -10...+45
Service temperature range (°C)
-25...+70
Storage temperature range (°C)
-50...+85
Temperature coefficient of the sensitivity (% F.S.*/10°C) <± 0.2
Temperature coefficient of zero signal (% F.S.*/10°C) <± 0.2
Zero balance (mV/V)
± 0.05
Nominal sensitivity (mV/V) 1.5
Input resistance (ohm(s)) 1000 ± 100
Output resistance (ohm(s)) 1000 ± 100
Insulation resistance (50 V) (Mohm(s)) > 5000
Reference excitation voltage (VDC)
10
Permissible nominal range of excitation voltage (VDC) 3...10
Safe load limit (% F.S.*) 120
Breaking load (% F.S.*)
>300
Permissible dynamic loading (% F.S.*)
40
Reference excitation voltage (-)
5

* F.S. : Full Scale.
Specifications subject to change without notice.
