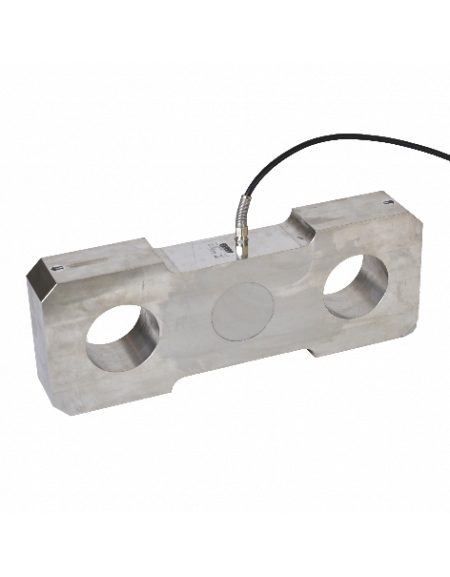

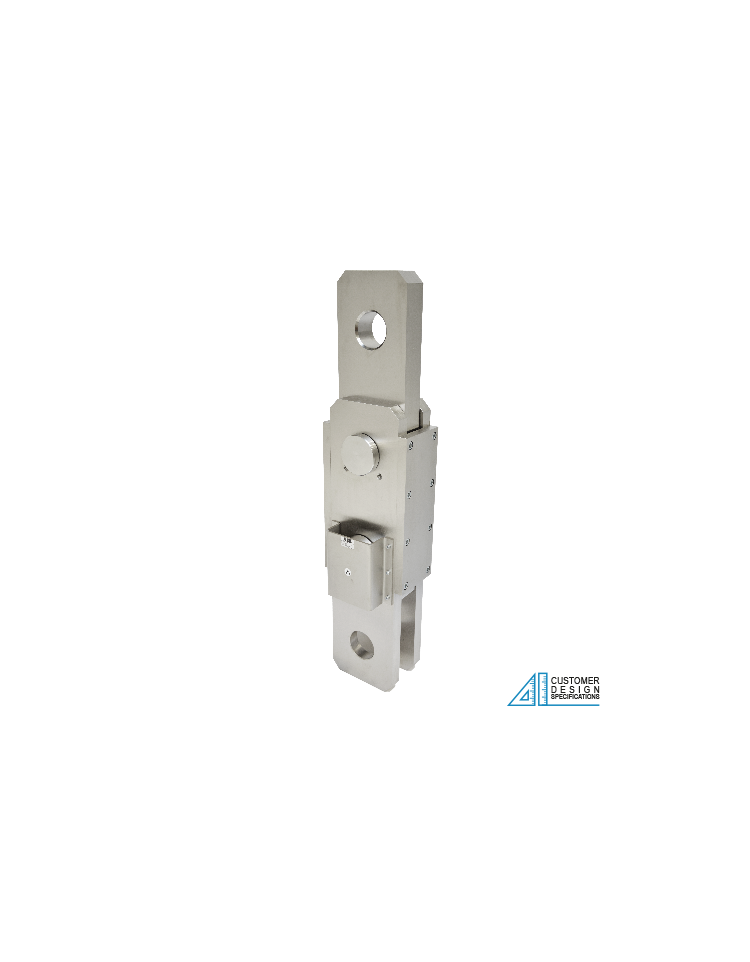

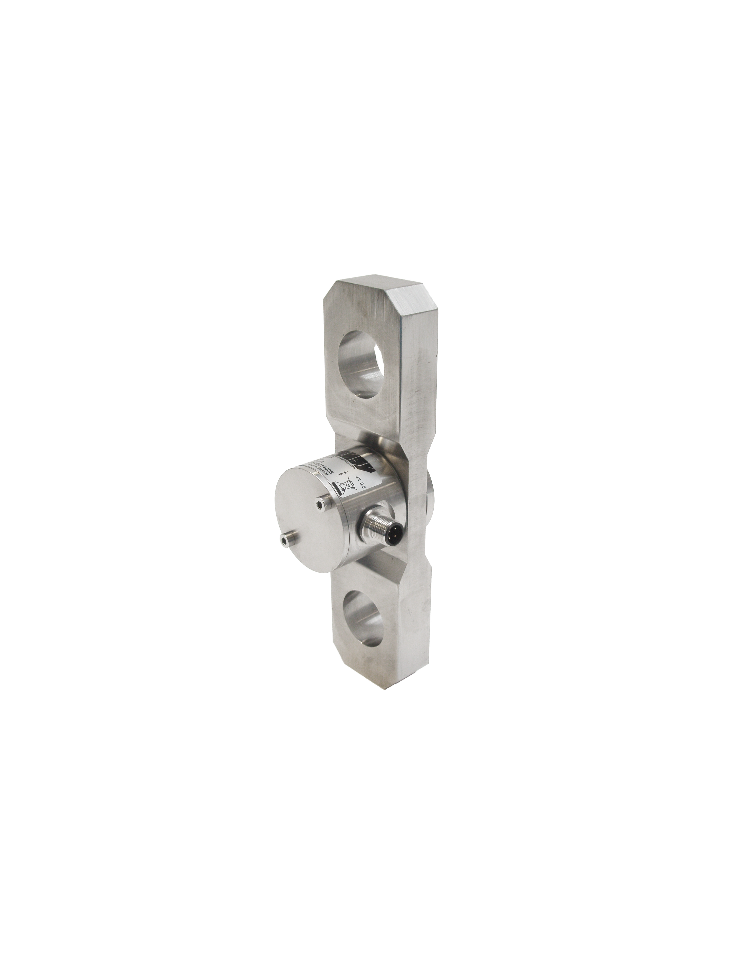

TENSION LINK LOAD CELLS
Tension link load cells specially adapted for standard shackles.
o Sturdy design
o Protection class: IP66
o Cable length: see drawing table - CL (other lengths available on request)
o Material: stainless steel (5200), nickel-plated steel (5205)

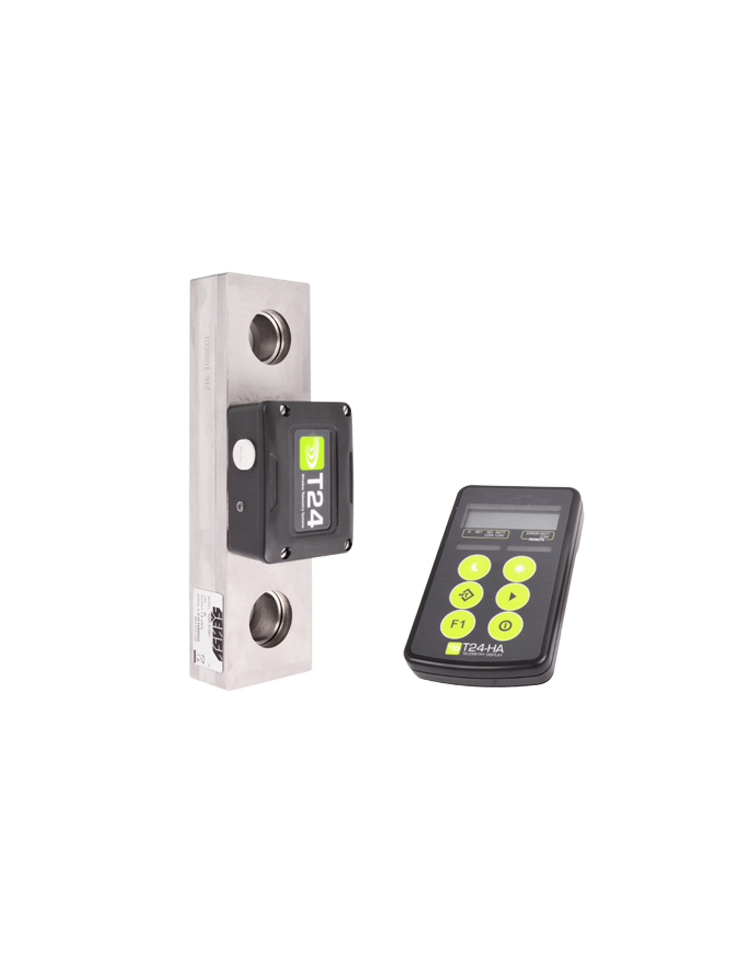

AVAILABLE OPTIONS
| 0.5 % | |
|---|---|
| Combined error (non-linearity + hysteresis) (% F.S.*) | < ± 0.5 |
| Repeatability error (% F.S.*) | < ± 0.25 |
| Creep error over 30 min. (% F.S.*) | < ± 0.2 |
| Zero shift after loading (% F.S.*) | < ± 0.1 |
| Reference temperature (°C) | 23 |
| Compensated temperature range (°C) | -10...+45 |
| Service temperature range (°C) | -25...+70 |
| Storage temperature range (°C) | -50...+85 |
| Temperature coefficient of the sensitivity (% F.S.*/10°C) | < ± 0.1 |
| Temperature coefficient of zero signal (% F.S.*/10°C) | < ± 0.1 |
| Zero balance (mV/V) | ± 0.02 |
| Input resistance (ohm(s)) | 352 ± 2 |
| Output resistance (ohm(s)) | 352 ± 2 |
| Insulation resistance (50 V) (Mohm(s)) | > 5000 |
| Reference excitation voltage (VDC) | 10 |
| Permissible nominal range of excitation voltage (VDC) | 3...12 |
| Safe load limit (% F.S.*) | 150 |
| Breaking load (% F.S.*) | > 300 |
* F.S. : Full Scale.
Specifications subject to change without notice.
