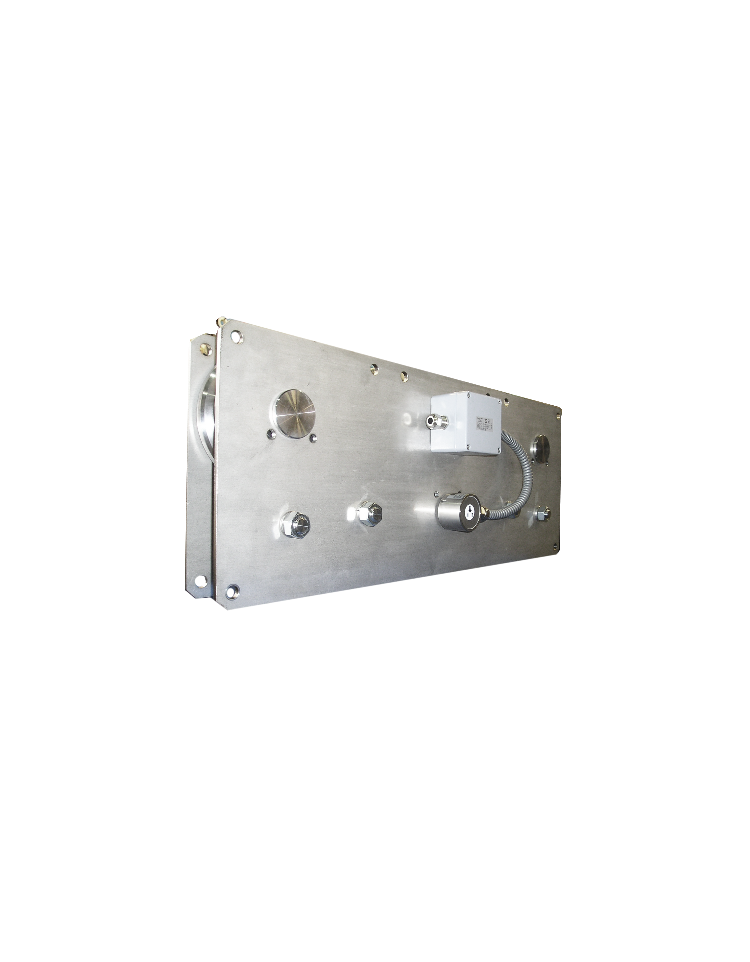

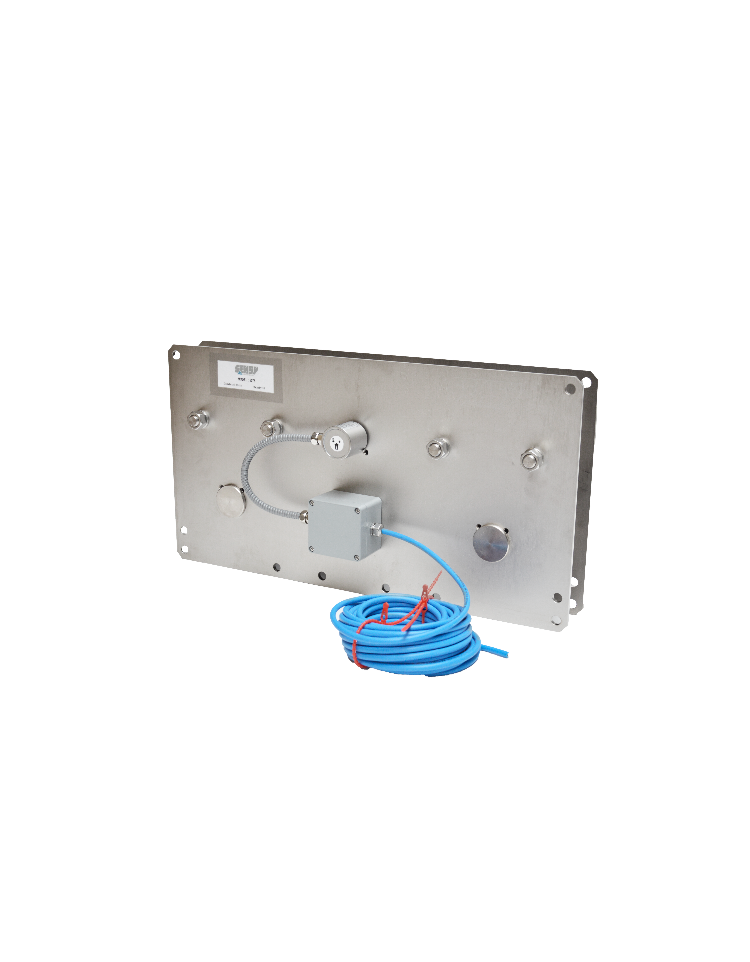

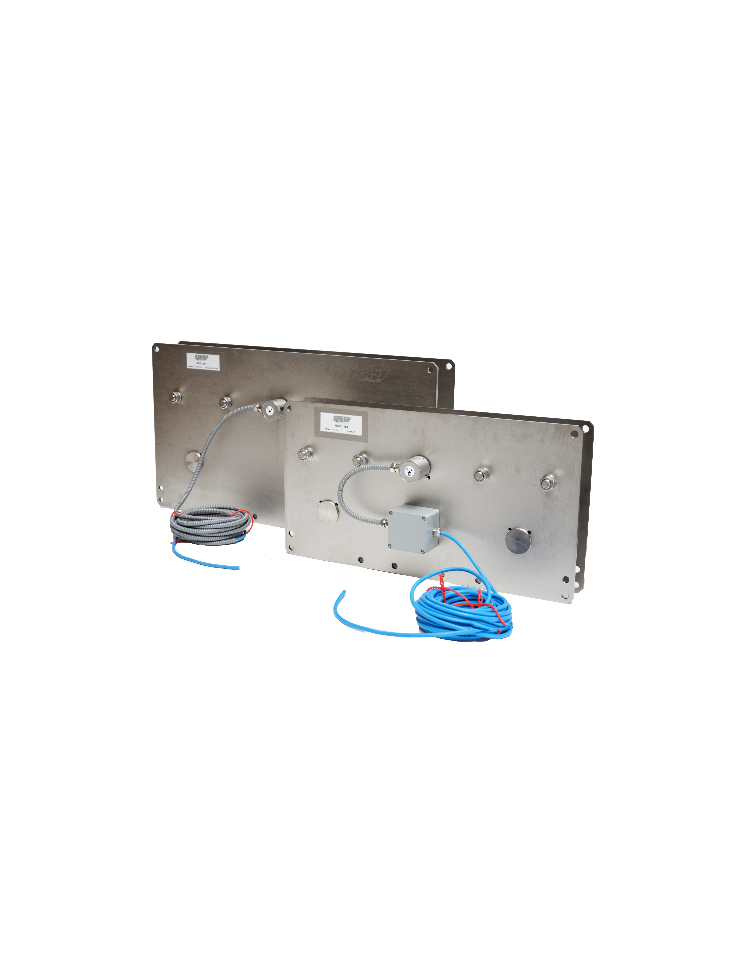

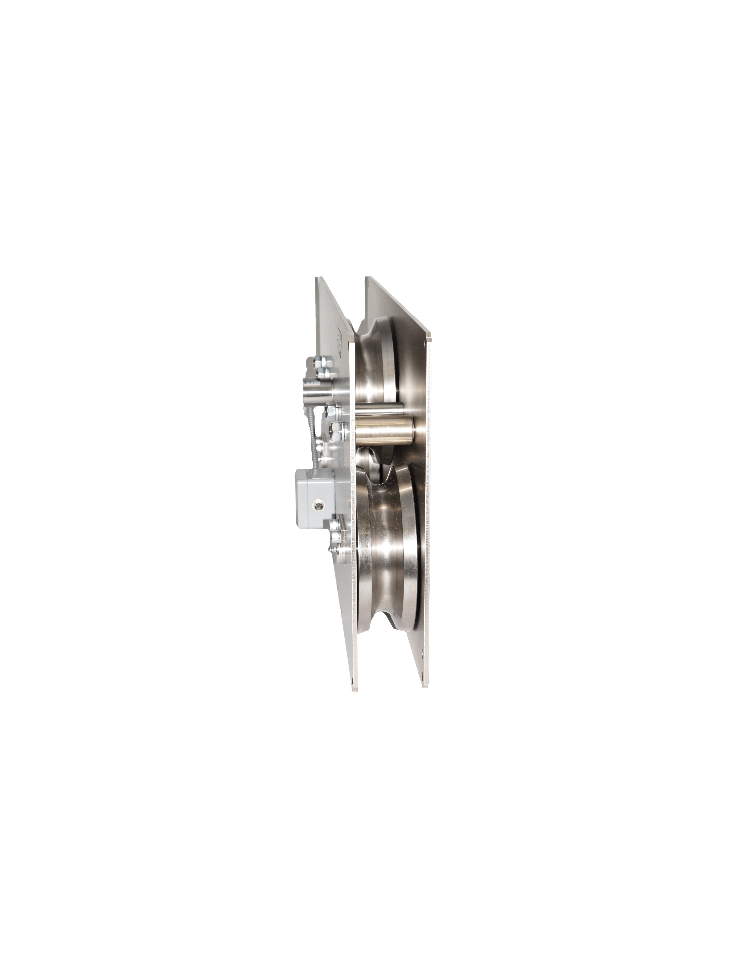

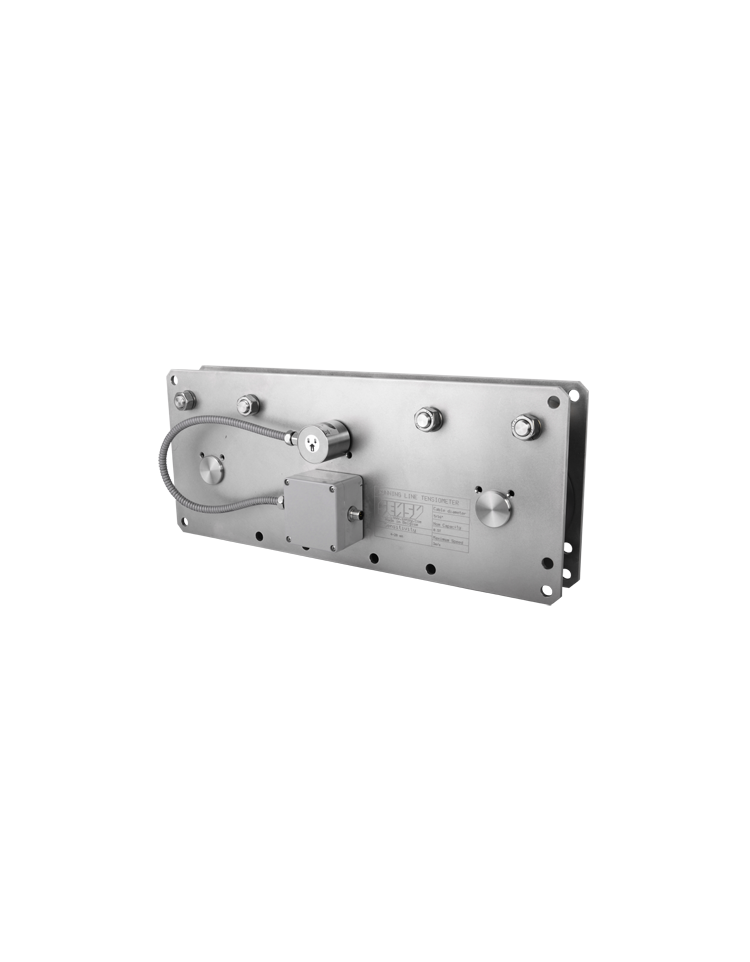

RUNNING LINE TENSIOMETERS
Load cells specially designed to measure the tension force applied to a running cable or running rope.
CONFIGURATOR RUNNING LINE TENSIOMETER 5570 - 5575
o Custom-made design according to your needs:
- type of rope (steel, synthetic, optical fiber, umbilical)
- capacity
- rope diameter (from 6 up to 115 mm)
- maximum winding speed
- accuracy
o Protection class: IP65
o Material:
- load pin: stainless steel
- other: nickel-plated steel or stainless steel (option)
o Complete range of CE certified electronics and load limitation devices available
o Cable length: 6 m (other lengths available on request)
CONFIGURATOR RUNNING LINE TENSIOMETER 5570 - 5575AVAILABLE OPTIONS
| 2 - 5 % | |
|---|---|
| Reference temperature (°C) | 23 |
| Compensated temperature range (°C) | -10...+45 |
| Service temperature range (°C) | -25...+70 |
| Storage temperature range (°C) | -50...+85 |
| Temperature coefficient of the sensitivity (% F.S.*/10°C) | <± 0.1 |
| Temperature coefficient of zero signal (% F.S.*/10°C) | <± 0.1 |
| Nominal sensitivity (mV/V) | ± 1 |
| Input resistance (ohm(s)) | 350 ± 2 |
| Output resistance (ohm(s)) | 350 ± 2 |
| Insulation resistance (50 V) (Mohm(s)) | > 5000 |
| Reference excitation voltage (VDC) | 10 |
| Permissible nominal range of excitation voltage (VDC) | 3...12 |
| Safe load limit (% F.S.*) | 200 |
| Breaking load (% F.S.*) | > 300 |
| Permissible dynamic loading (% F.S.*) | 70 |
* F.S. : Full Scale.
** : can be different (depending on the wire rope)
Combined error depends on rope material and on-site calibration
Specifications subject to change without notice
