STANDARD LOAD PINS


CSA ATEX IECEX CE LEVAGE OVERLOAD

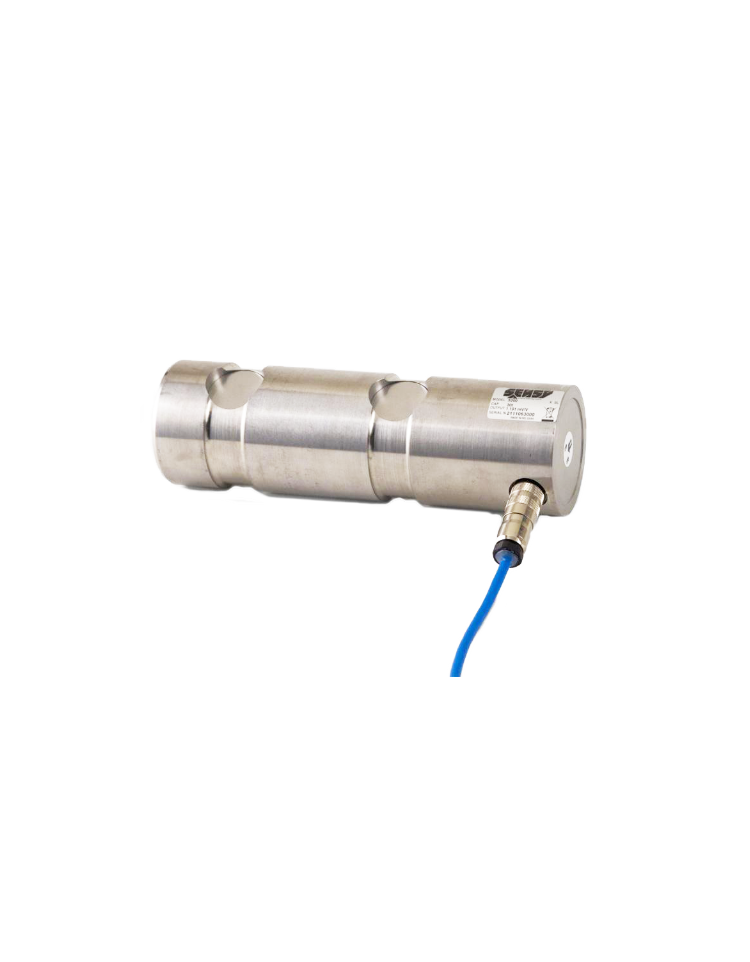

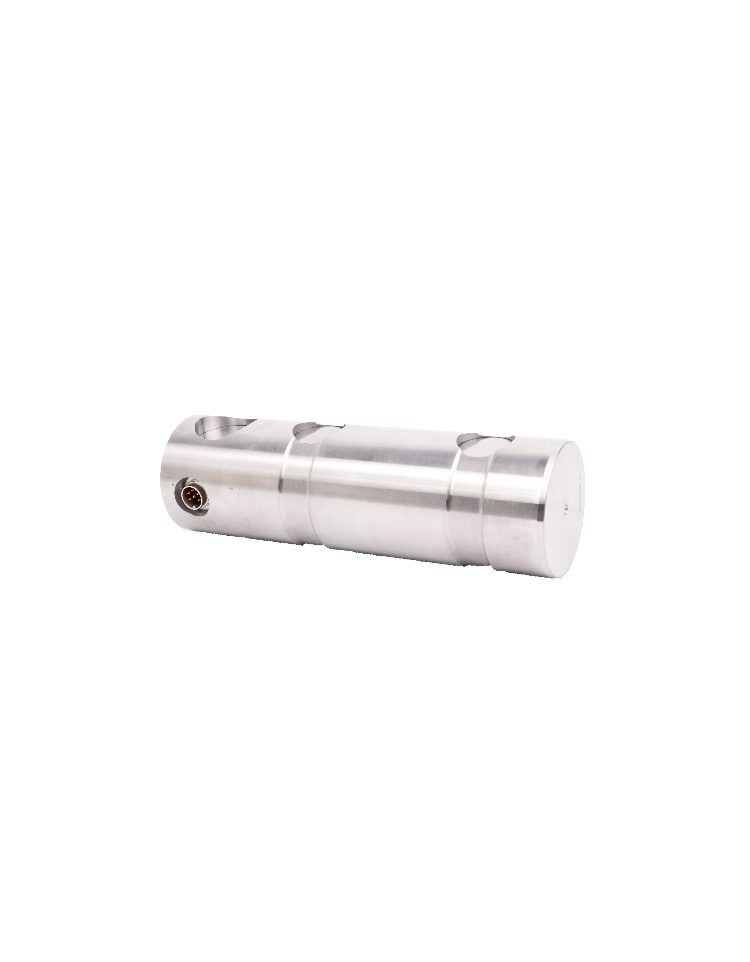

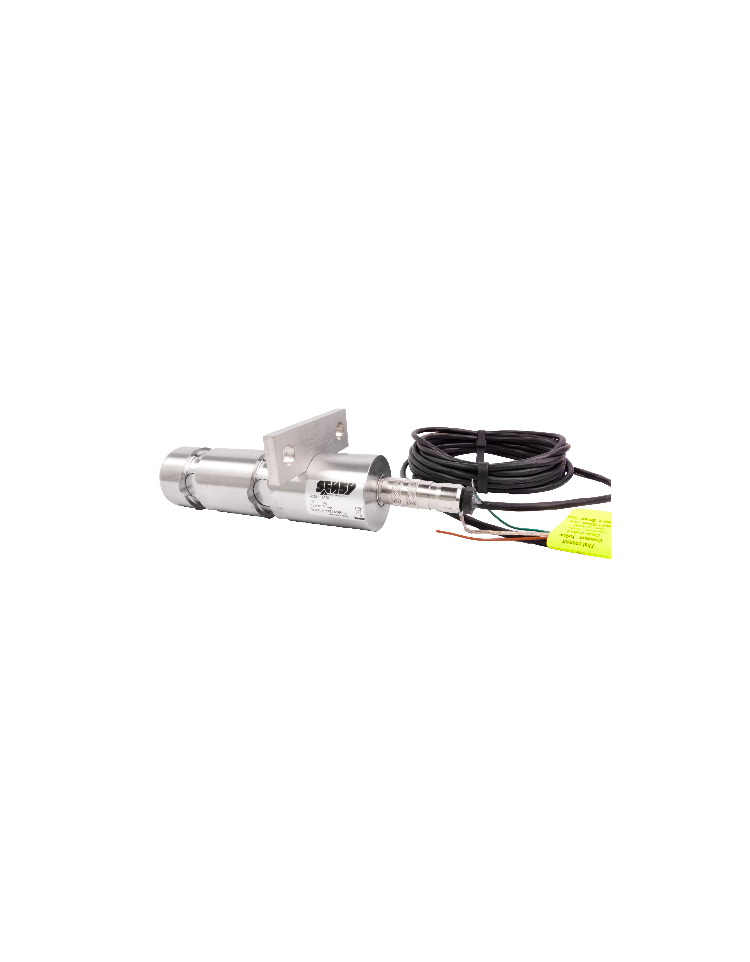

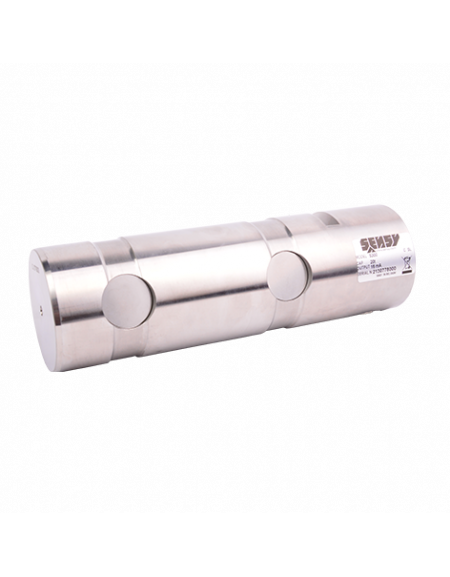

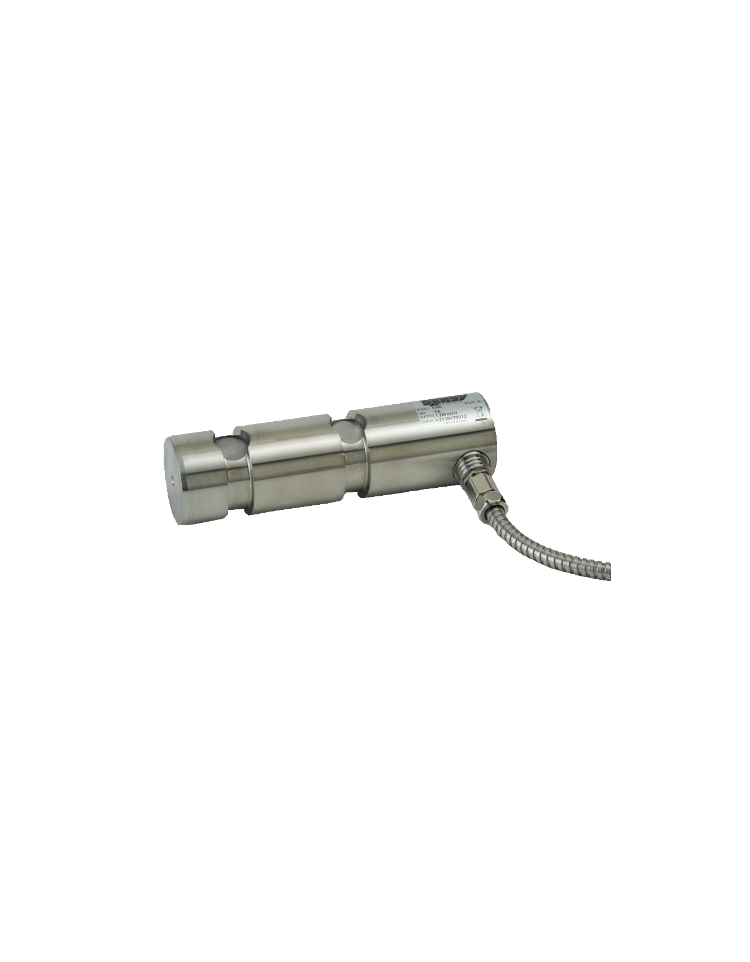

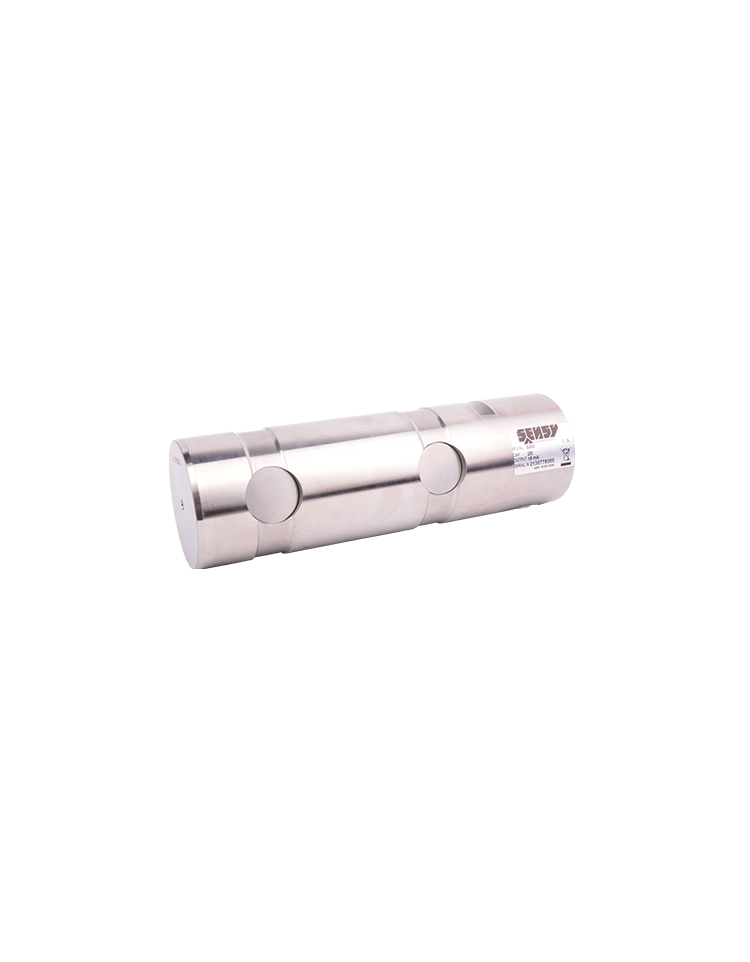

Load pins with standard dimensions.

o CE certified for hoisting applications
o Sturdy design
o Material: stainless steel
o Protection class: IP65
o Easy to install
o Complete range of CE certified electronics and load limiters
o Cable length: 6 m (other lengths available on request)

Technical drawings available on datasheet

AVAILABLE OPTIONS

DUAL-BRIDGE
SIL-PL
AMPLIFIED-OUTPUT
DIGITAL-OUTPUT
EXi
-50+180
IP67
Do you have
specific need ?
Add to basket
for quotation

SL - FORCESL - HOISTSL - LIFT
Combined error (non-linearity + hysteresis) (% F.S.*) 0.25 - 1 0.5 - 2 0.5 - 2
Repeatability error (% F.S.*) <± 0.25 <± 0.25 <± 0.25
Creep error over 30 min. (% F.S.*) <± 0.3 <± 0.3 <± 0.2
Zero shift after loading (% F.S.*)
<± 0.5 <± 0.5 <± 0.5
Reference temperature (°C) 23 23 23
Compensated temperature range (°C) -10...+45 -10...+45 -10...+45
Service temperature range (°C)
-25...+70 -25...+70 -25...+70
Storage temperature range (°C)
-50...+85 -50...+85 -50...+85
Temperature coefficient of the sensitivity (% F.S.*/10°C) <± 0.2 <± 0.2 <± 0.2
Temperature coefficient of zero signal (% F.S.*/10°C) <± 0.2 <± 0.2 <± 0.2
Zero balance (mV/V)
± 0.02 ± 0.02 ± 0.02
Nominal sensitivity (mV/V) ± 1.5 ± 1 ± 0.5
Input resistance (ohm(s)) 350 ± 2 350 ± 2 350 ± 2
Output resistance (ohm(s)) 350 ± 2 350 ± 2 350 ± 2
Insulation resistance (50 V) (Mohm(s)) > 5000 > 5000 > 5000
Reference excitation voltage (VDC)
10 10 10
Permissible nominal range of excitation voltage (VDC) 3...12 3...12 3...12
Safe load limit (% F.S.*) 150 200 300
Breaking load (% F.S.*)
> 300 > 500 > 1000
Permissible dynamic loading (% F.S.*)
50 75 100
Static lateral force limit (% F.S.*) 100 150 200

* F.S. : Full Scale.
** Typical range of accuracy, depending on design and dimensions.
*** 125 t only force version.
Specifications subject to change without notice.
