ON-BOARD WEIGHING LOAD CELLS


CE ATEX

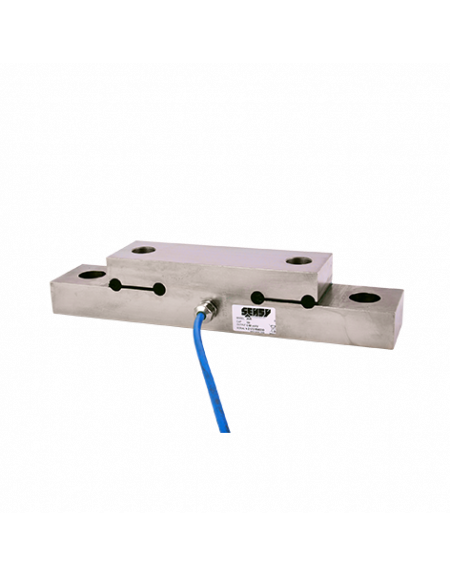

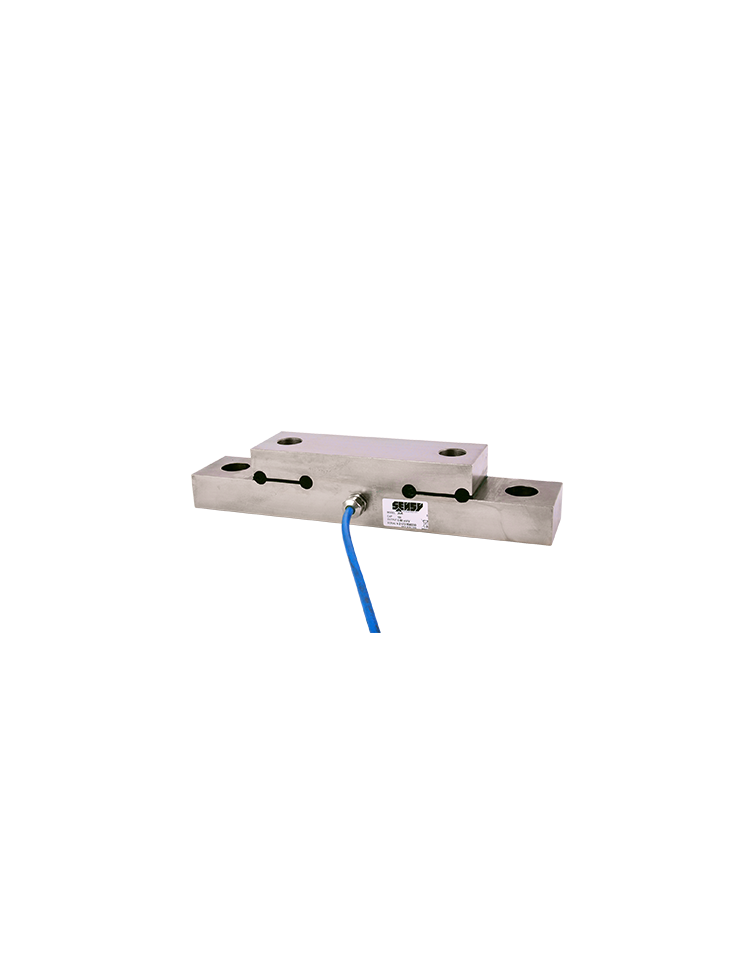

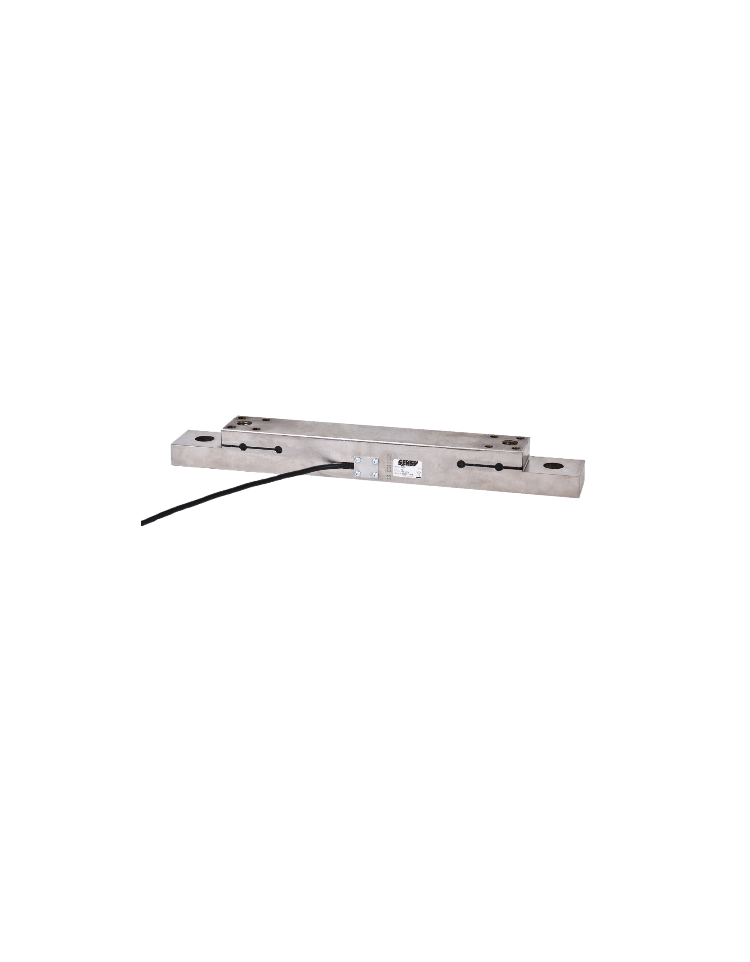

Load cells specially designed for on-board weighing on trucks.

o Very sturdy design
o High resistance against shocks
o Protection class: IP67
o Low-cost solution
o Material: alloy steel
o Easy to install (no stabilisation system needed)
o Screws and blocks to be welded available
o Cable length: see drawing table - CL (other lengths available on request)

Technical drawings available on datasheet

AVAILABLE OPTIONS

AMPLIFIED-OUTPUT
DIGITAL-OUTPUT
EXi
-40+180
HOISTING
Do you have
specific need ?
Add to basket
for quotation

0.5 %
Repeatability error (% F.S.*) < ± 0.25
Creep error over 30 min. (% F.S.*) < ± 0.2
Reference temperature (°C) 23
Compensated temperature range (°C) -10...+45
Service temperature range (°C)
-25...+70
Storage temperature range (°C)
-50...+85
Temperature coefficient of the sensitivity (% F.S.*/10°C) < ± 0.1
Temperature coefficient of zero signal (% F.S.*/10°C) < ± 0.1
Zero balance (mV/V)
± 0.02
Nominal sensitivity (mV/V) 1
Input resistance (ohm(s)) 352 ± 2
Output resistance (ohm(s)) 352 ± 2
Insulation resistance (50 V) (Mohm(s)) > 5000
Reference excitation voltage (VDC)
10
Permissible nominal range of excitation voltage (VDC) 3...12
Safe load limit (% F.S.*) 120
Breaking load (% F.S.*)
>250
Permissible dynamic loading (% F.S.*)
50
Static lateral force limit (% F.S.*) 100

* F.S. : Full Scale.
Specifications subject to change without notice.
