TENSION AND COMPRESSION LOAD CELLS

ADD
TO COMPARE PDF
DATASHEET
CE ATEX

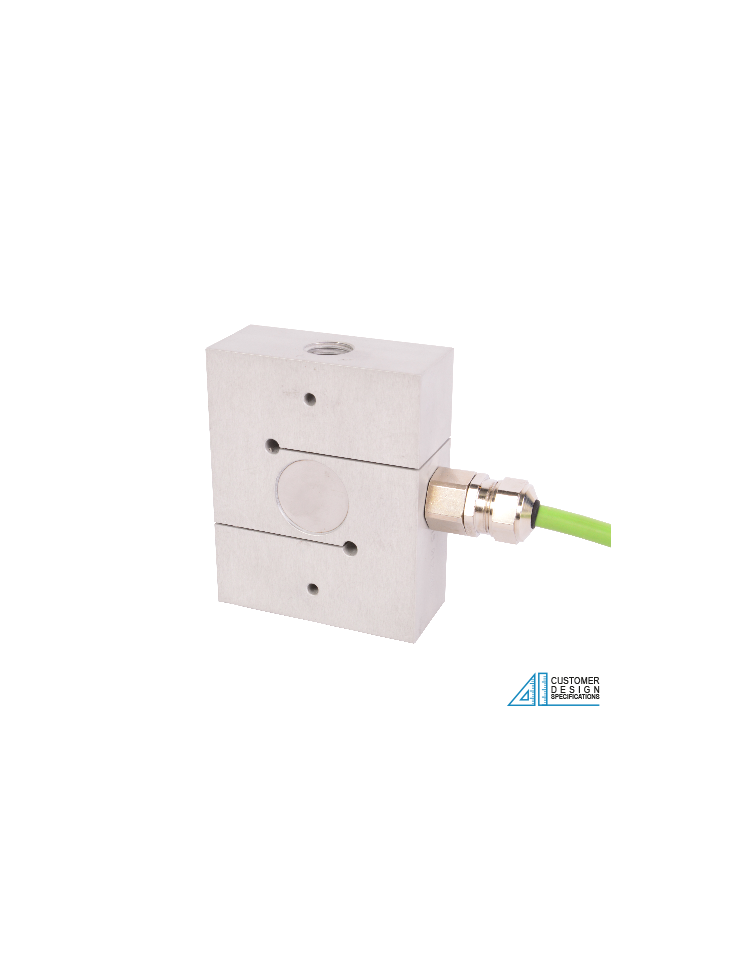

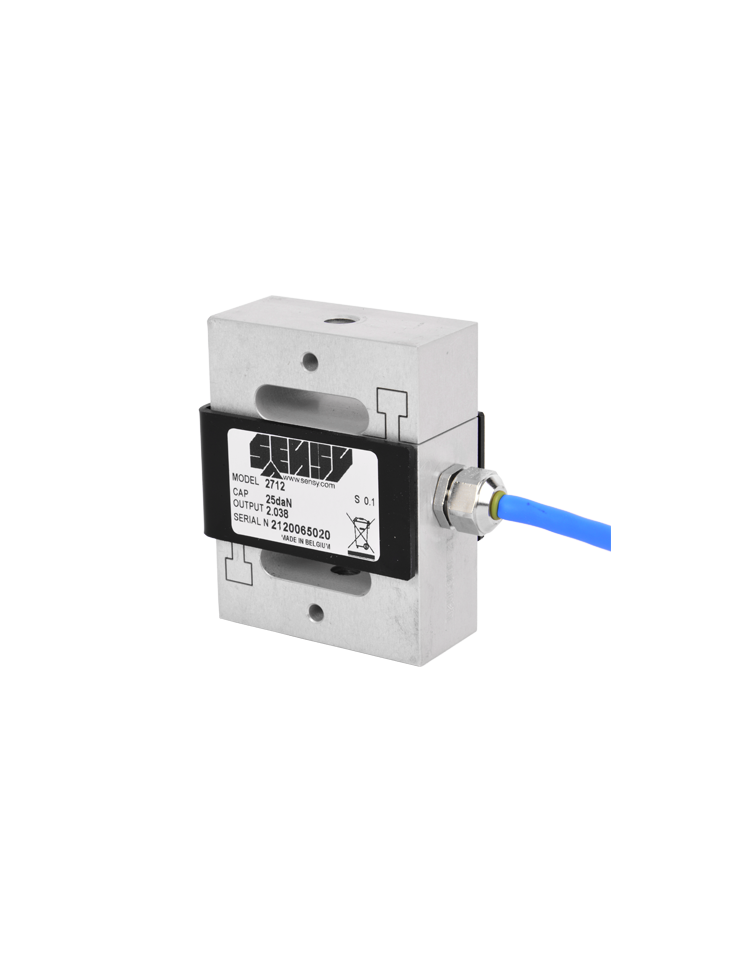

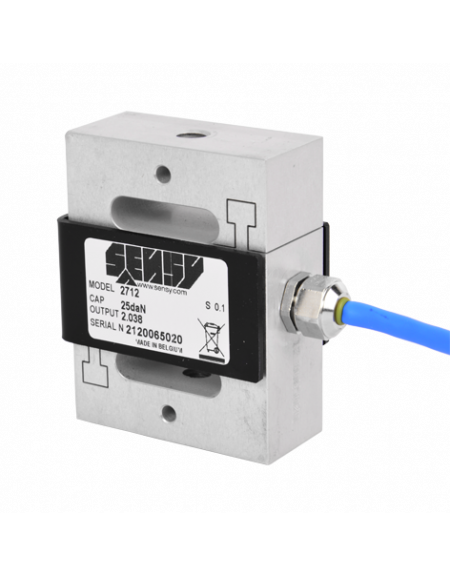

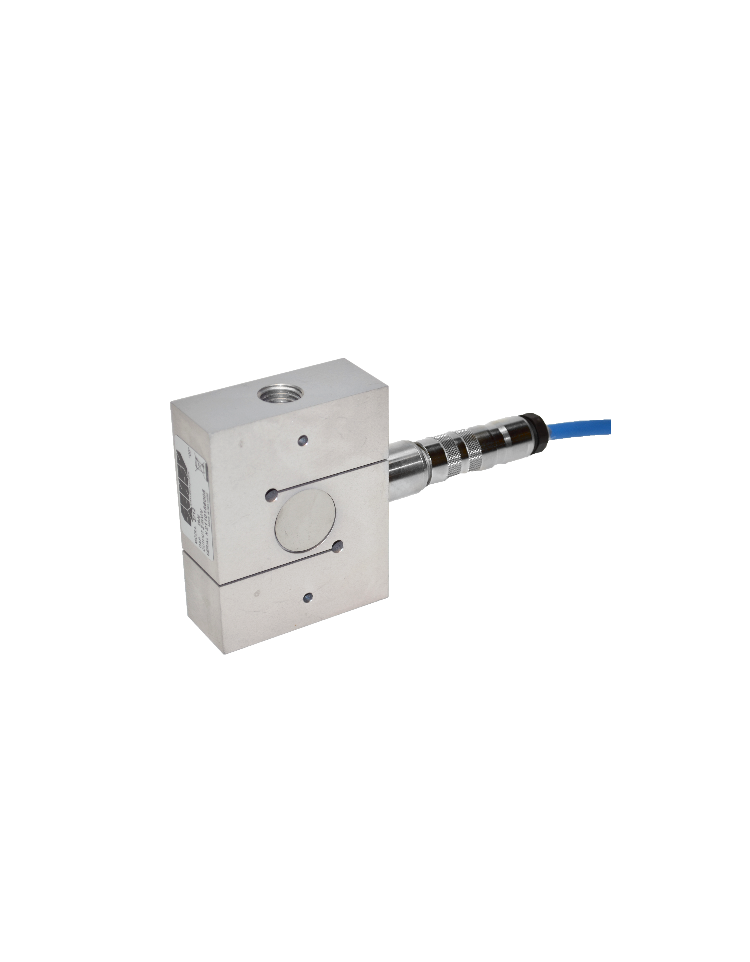

High-accuracy universal load cells, easy to install.

o Wide range of capacities: from 100 N to 10 kN
o Overload protection in tension and compression (only for 2712-A and 2712-C)
o Compact design
o Protection class: IP54 / IP65 (see drawing)
o Material: anodised aluminium alloy
o Cable length: 3 m (other lengths available on request)
o Also available as standard reference load cells according to ISO 376 (classes "1", ''0,5'' and ''00'' - see specific data sheet 2712-ISO)

AVAILABLE OPTIONS

AMPLIFIED-OUTPUT
DIGITAL-OUTPUT
USB
WIRELESS
EXi
-50+130
CONNECTOR-OPTION
Do you have
specific need ?
Add to basket
for quotation

Accuracy class (-)
 A
Combined error (non-linearity + hysteresis) (% F.S.*) A
Repeatability error (% F.S.*) A
Creep error over 30 min. (% F.S.*) A
Reference temperature (°C) A
Compensated temperature range (°C) A
Service temperature range (°C)
 A
Storage temperature range (°C)
 A
Temperature coefficient of the sensitivity (% F.S.*/10°C) A
Temperature coefficient of zero signal (% F.S.*/10°C) A
Nominal sensitivity (mV/V) A
Sensitivity tolerance (%) A
Input resistance (ohm(s)) A
Output resistance (ohm(s)) A
Insulation resistance (50 V) (Mohm(s)) A
Reference excitation voltage (VDC)
 A
Permissible nominal range of excitation voltage (VDC) A
Safe load limit (% F.S.*) A
Breaking load (% F.S.*)
 A
Permissible dynamic loading (% F.S.*)
 A
Static lateral force limit (% F.S.*) A

* F.S. : Full Scale.
** : see drawing table
Specifications subject to change without notice.
