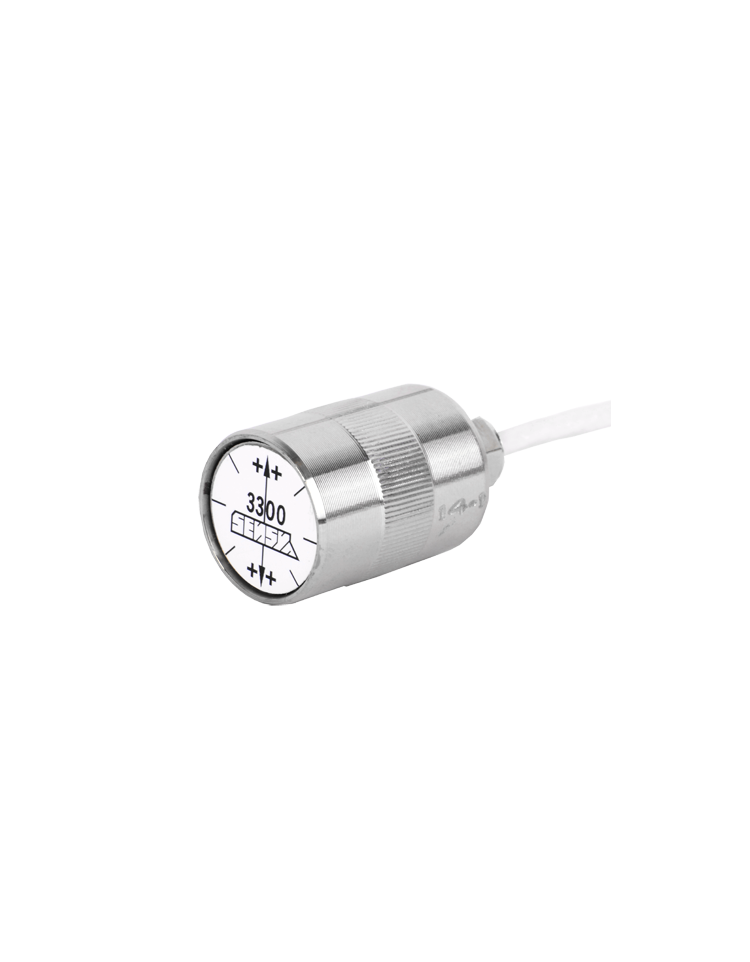

INSERTABLE STRAIN SENSOR - INSERTGAGE®
Insertable extensometer designed to measure the force in a structure
o Designed to measure:
- tension, compression shear and bending force
- torque
o One unique model regardless of the capacity range
o Material: stainless steel
o Protection class: IP67
o Very competitive prices
o Easy to install (one hole to drill)
o Accuracy in the structure: 2 to 5 %
o Cable length: 0.25 or 5 m (other lengths available on request)
AVAILABLE OPTIONS
| 2 - 5 % | |
|---|---|
| Reference temperature (°C) | 23 |
| Compensated temperature range (°C) | -10...+45 |
| Service temperature range (°C) | -30...+60 |
| Storage temperature range (°C) | -50...+85 |
| Nominal sensitivity (mV/V) | ± 1 |
| Input resistance (ohm(s)) | 700 ± 2 |
| Output resistance (ohm(s)) | 700 ± 2 |
| Insulation resistance (50 V) (Mohm(s)) | > 5000 |
| Reference excitation voltage (VDC) | 10 |
| Permissible nominal range of excitation voltage (VDC) | 3...12 |
* F.S. : Full Scale.
** : for a stress of ± 10 kg/mm²
Specifications subject to change without notice.
